| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSQ84XA-CDXX |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Connector Type: | QSFP+ To QSFP+ | Compatible: | Juniper |
|---|---|---|---|
| Data Rate: | 40Gbps | Optional Length: | 3m, Etc. |
| Low Power Consumption: | ＜1.5W | Standards: | SFF-8436 |
| High Light: | 40G Active Optical Cables,FCC Active Optical Cables,40g aoc |
||

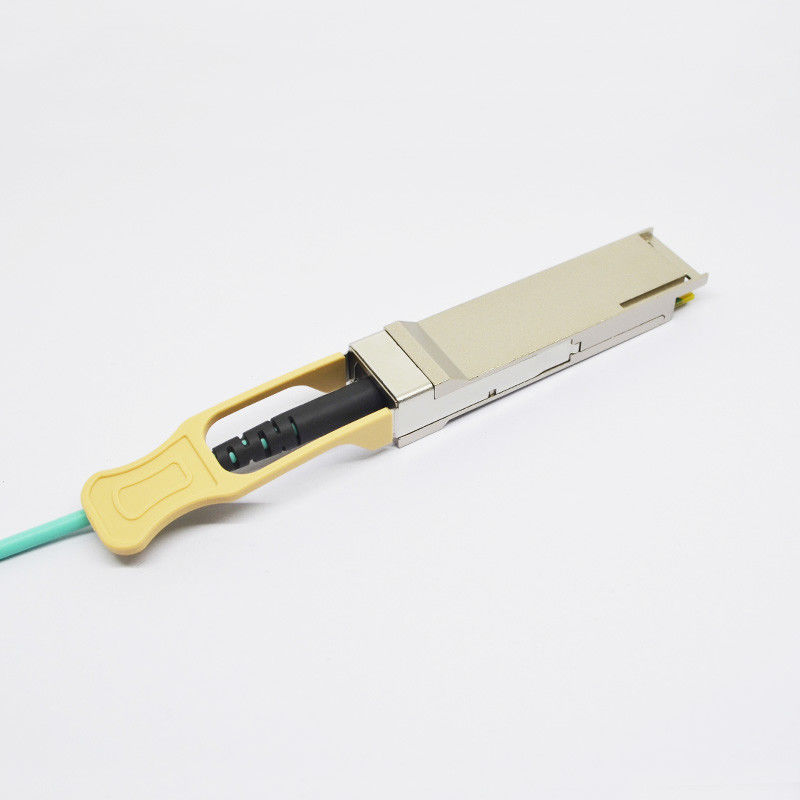

FCC 40G QSFP+ Active Optical Cables Juniper Networks Compatible
Juniper Networks Compatible 40G QSFP+ Active Optical Cable JNP-40G-AOC
Product Features
* Fully RoHS Compliant
* Full channel operating up to 41.2Gb/s
* Hot plugable 38pin connector*cable length up to 3m
* Low power consumption: ＜1.5W
* 0℃ to 70℃ operating wide temperature range
* Single +3.3V±5% power supply
* Digital Monitoring feature
* Metal enclose for lower EMI
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 3.6 | V | |
| Storage Temperature | TS | -10 | 70 | °C | |
| Relative Humidity | RH | 5 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 1.25 | 10.3125 | Gb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 450 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C |
Optical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 860 | nm | |||
Electrical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| ModSelL-Module Select | VOL | 0 | 0.8 | V | ||
| ModSelL-Module Unselect | VOH | 2.5 | VCC | V | ||
| LPMode-Low Power Mode | VIL | 0 | 0.8 | V | ||
| LPMode-Normal Operation | VIH | 2.5 | VCC+0.3 | V | ||
| ResetL-Reset | VIL | 0 | 0.8 | V | ||
| ResetL-Normal Operation | VIH | 2.5 | VCC+0.3 | V | ||
| ModPrsL-Normal Operation | VOL | 0 | 0.4 | V | ||
| IntL-Interrupt | VOL | 0 | 0.4 | V | ||
| IntL-Normal Operation | VOH | 2.4 | VCC | V |
| Active cable input electrical characteristics | ||||||
| Differential Data Input Voltage | VIH-VIL | 200 | 1600 | mVpp | 1 | |
| Differential Input Impedance | RIN | 90 | 100 | 110 | Ω | |
| TX-Disable Input Voltage-Low | VIL | 0 | 0.8 | V | 2 | |
| TX-Disable Input Voltage-High | VIH | 2.0 | VCC | V | 2 | |
| TX-Fault Output Voltage-Low | VOL | 0 | 0.8 | V | 3 | |
| TX-Fault Output Voltage-High | VOH | 2.0 | VCC | V | 3 | |
| Active cable output electrical characteristics | ||||||
| Differential Data Output Voltage |
VOH- VOL |
350 | 800 | mV | 1 | |
|
Differential Output Impedance |
ROUT | 100 | Ω | |||
|
LOS-Asserted Output Voltage-Low |
VOL | 0 | 0.8 | V | 3 | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
3. Internal AC coupled
4. TX-Disable has an internal 4.7KΩ to 10 KΩ pull-up to VccT
5. Measure with 4.7KΩ pull-up to Vcc on host board
Description:
QSFP+ Active Optical Cable (AOC) components are designed for 40GB Ethernet applications. It is designed so that 40GbE devices are designed with very high port density based on electrical and mechanical specifications.
Applications
* 40G AOC QSFP+ Applications
* 40GBASE-SR4 at 10.3125Gbps per lane
