| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSQ8TXA-CDM1 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatible: | Cisco | PN Number: | OLSQ8TXA-CDM1 |
|---|---|---|---|
| Full Channel Operating: | Up To 103.125Gb/s | Cable Length: | Up To 3m |
| Low Power Consumption: | ＜1.5W | Operating Wide Temperature Range: | 0℃ To 70℃ |
| High Light: | QSFP28 Active Optical Cables,100G Active Optical Cables,100g qsfp28 aoc |
||

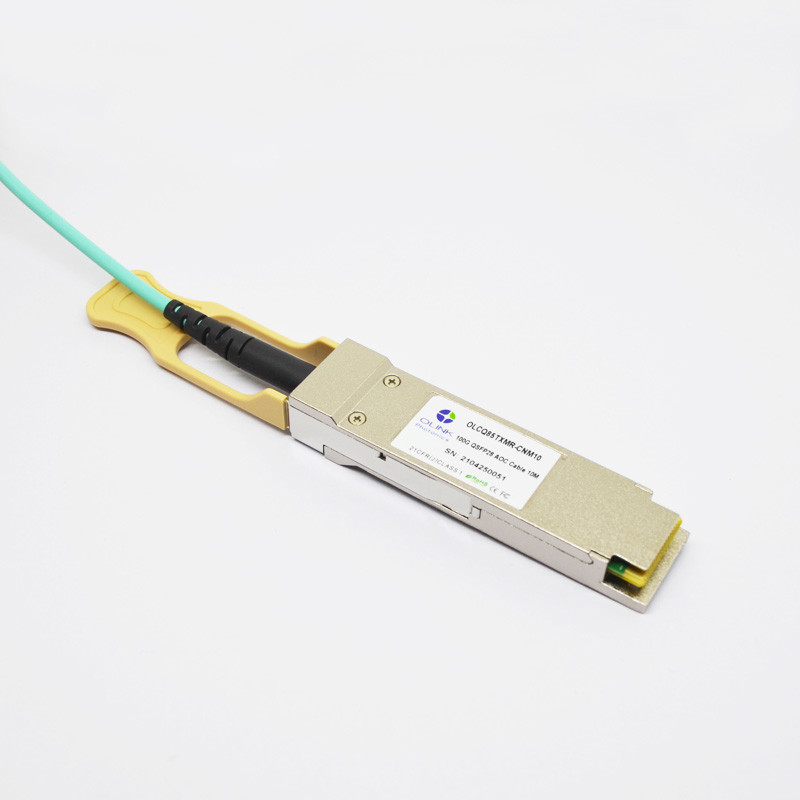

100Gb/S QSFP28 Active Optical Cables 3 Meter For 100GBASE SR4
3m (10ft) Cisco Switches Compatible 100Gb/S QSFP28 Active Optical Cable 3 Meter
Product Features
Quick Details:
| Product Name: | Active Optical Cable | Compatible: | Cisco |
| PN Number: | OLSQ8TXA-CDM1 | Brand Name: | OLKOPTO |
| Channel Operating: | up to 103.125Gb/s | Cable Length: | up to 3m |
| Low power consumption: | ＜1.5W | Metal Enclose: | lower EMI |
| Operating case temp: | 0℃ to 70℃ | MOQ: | 1pcs |
| Certification: | RoHS FCC CE GS UL FDA etc | Place of origin: | SZ China |
| Payment Term: | T/T or Net 30 days | Capacity: | 80-120k per month |
| Delivery: | 3-5 working days | Jacket Material | OFNP |
Applications
100G AOC QSFP28 Applications
100GBASE-SR4 at 25.781Gbps per lane
Standards
SFF-8636
Description:
QSFP28 Active Optical Cable (AOC) components are designed for 100GB Ethernet applications. It is designed so that 100GbE devices are designed with very high port density based on electrical and mechanical specifications.
Optical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 860 | nm | |||
