| Compatible: | Juniper Networks | Connector Type: | SFP+ To SFP+ |
|---|---|---|---|
| Data Rate: | 10Gbps | Cable Length: | 1m,2m,3m,10m |
| Temperature: | 0 To 70°C (-40 To 85℃) | Vendor Name: | Olinkcom |
| Shell Material: | Metal Enclose | Application: | 10G AOC SFP+ And 10G BASE-SR At 10.31Gbps |
| High Light: | AOC Active Optical Cables,10G Active Optical Cables,sfp+ active optical cable |
||

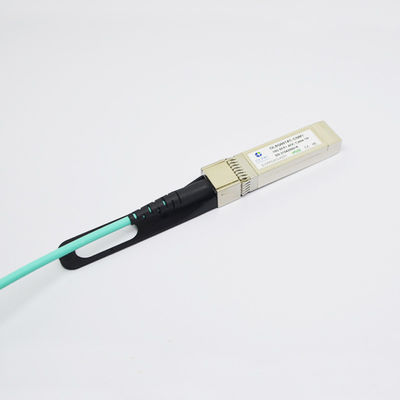

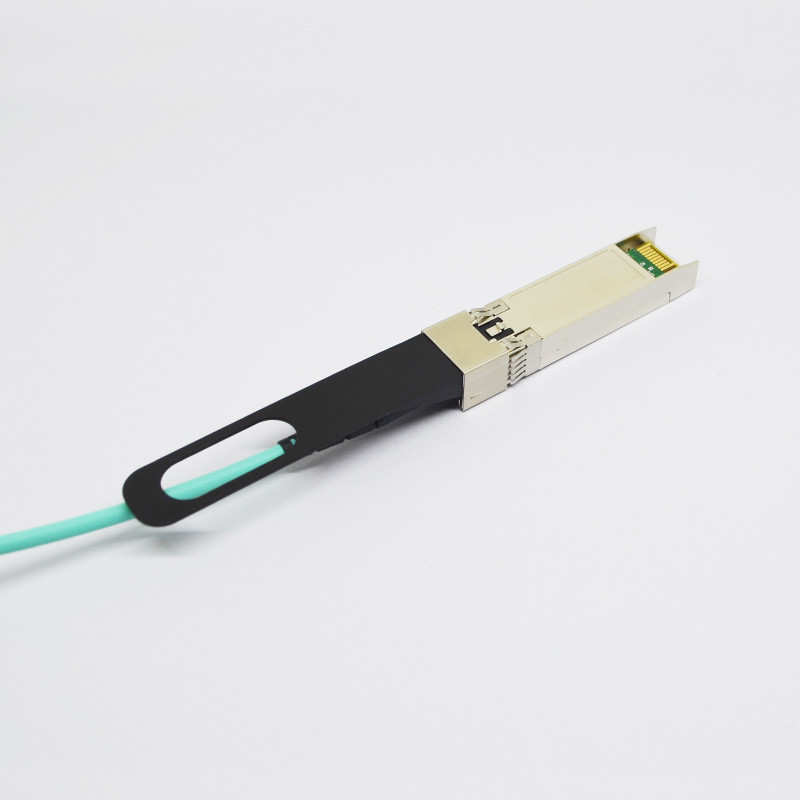

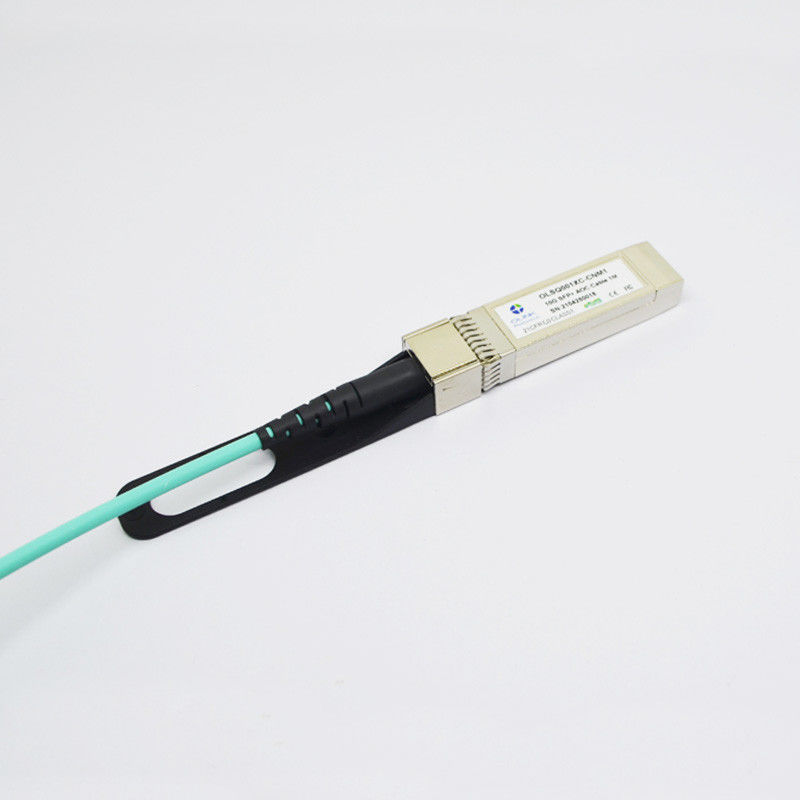

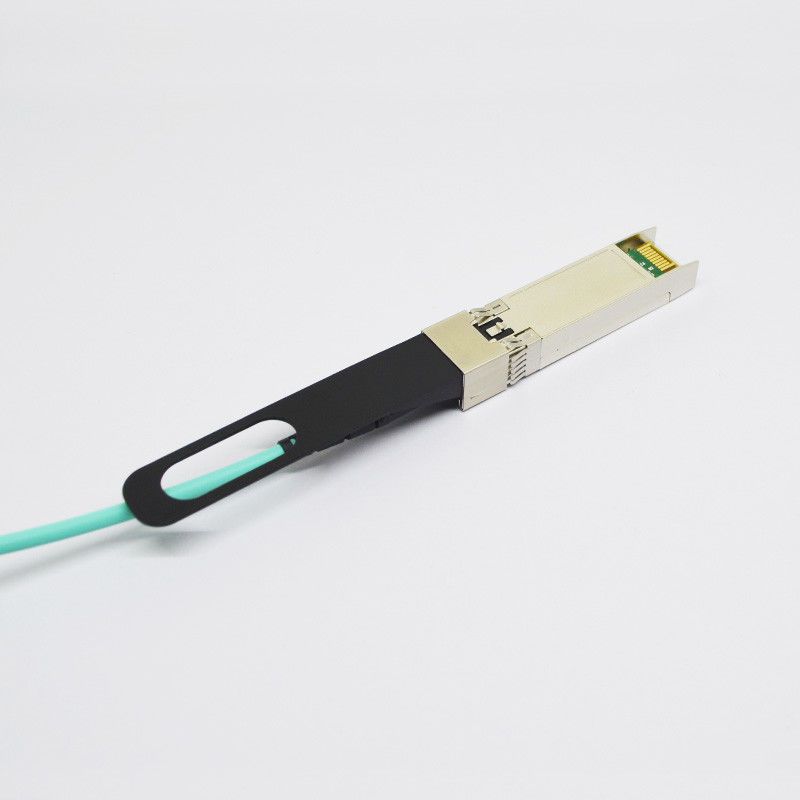

Juniper Compatible 10G AOC Active Optical Cable SFP+ To SFP+
Juniper Networks JNP-10G-AOC Compatible 10G SFP+ Active Optical Cable
Description:
The Active Optical Cable (AOC) Assemblies for SFP+ Applications is a product to serve 10Gb Ethernet applications. It is designed to enable 10GbE equipment designs with very high port density based on the electrical and mechanical specification.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 3.6 | V | |
| Storage Temperature | TS | -5 | 75 | °C | |
| Relative Humidity | RH | 5 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 10.3125 | Gb/s | |||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 860 | nm | |||
| Active cable input electrical characteristics | ||||||
| Differential Data Input Voltage | VIH-VIL | 200 | 100 | mVpp | 1 | |
| Differential Input Impedance | RIN | 90 | 100 | 110 | Ω | |
| TX-Disable Input Voltage-Low | VIL | 0 | 0.8 | V | 2 | |
| TX-Disable Input Voltage-High | VIH | 2.0 | VCC | V | 2 | |
| TX-Fault Output Voltage-Low | VOL | 0 | 0.8 | V | 3 | |
| TX-Fault Output Voltage-High | VOH | 2.0 | VCC | V | 3 | |
| Active cable output electrical characteristics | ||||||
| Differential Data Output Voltage |
VOH- VOL |
200 | 1000 | mV | 1 | |
|
Differential Output Impedance |
ROUT | 90 | 100 | 110 | Ω | |
|
LOS-Asserted Output Voltage-Low |
VOL | 0 | 0.4 | V | 3 | |
|
LOS-Deasserted Output Voltage-High |
VOH | 2.0 | VCC | V | 3 | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
3. Internal AC coupled
4. TX-Disable has an internal 4.7KΩ to 10 KΩ pull-up to VccT
5. Measure with 4.7KΩ pull-up to Vcc on host board
Cable Mechanical Specifications
| Parameter | Value | Units |
| Diameter | 3 | Mm |
| Minimum bend radius | 30 | Mm |
|
Length tolerance |
Length < 1 m: +5 /-0 | Cm |
| 1 m ≤length ≤ 4.5 m: +15 / -0 | Cm | |
| 5 m ≤length ≤ 14.5 m: +30 / -0 | Cm | |
| Length≥15.0 m +2% / -0 | m | |
| Cable color | Orange(OM2),Aqua(OM3),Megenta(OM4) |
Ordering Information
| Part Number | Description |
| OLSP81XA-CDM10 | SFP+, up to 10Gb/s,, AOC, 0~70℃, with Digital Diagnostic Monitor |
| OLSP81XA-IDM10 | SFP+, up to 10Gb/s,, AOC, -40~85℃, with Digital Diagnostic Monitor |
