| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSQ84XA-CDM3 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatible: | Cisco | PN Number: | OLSQ84XA-CDM3 |
|---|---|---|---|
| Channel Operating: | Up To 41.2Gb/s | Cable Length: | Up To 3m |
| Low Power Consumption:: | ＜1.5W | Metal Enclose: | Lower EMI |
| High Light: | 40G Active Optical Cable,40G AOC Cable,40G QSFP+ AOC |
||

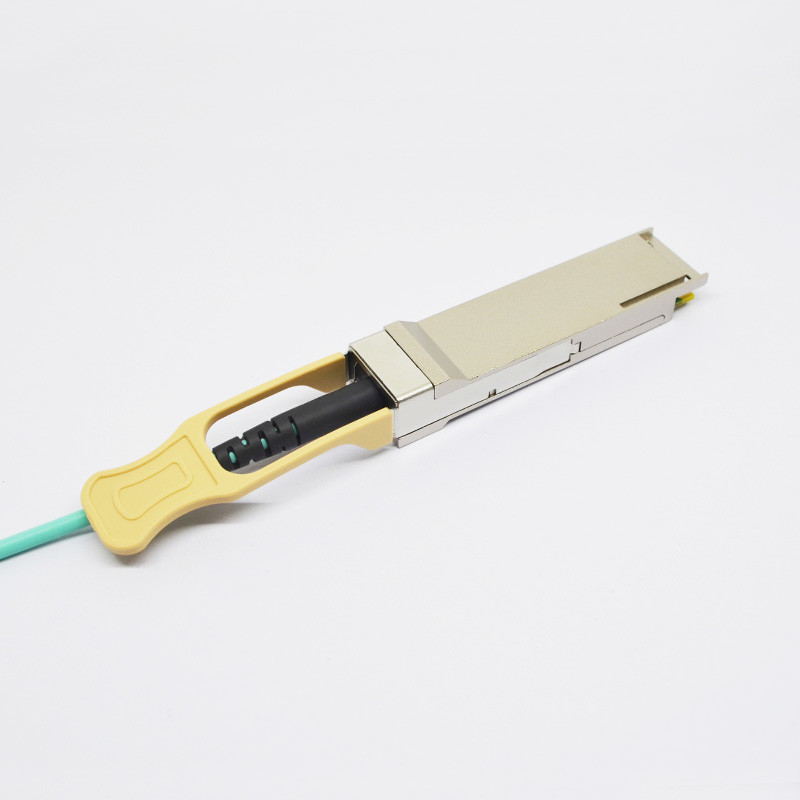

40G QSFP+ Active Optical Cable 40G AOC Cable Cisco Compatible
Cisco Compatible 3m (10ft) Networks 40G-AOC-3M 40G QSFP+ Active Optical Cable
Product Features
More details:
Applications
QSFP+ Active Optical Cable (AOC) supports 40G AOC QSFP+ Applications and 40GBASE-SR4 at 10.3125Gbps per lane
Standards
SFF-8436
Description:
QSFP+ Active Optical Cable (AOC) components are designed for 40GB Ethernet applications. It is designed so that 40GbE devices are designed with very high port density based on electrical and mechanical specifications.
Optical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 860 | nm | |||
We have a strong and experienced after-sales team.Your any question would be well supported.
