| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSQ85XA-CDM3 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Connector Type: | QSFP+ To QSFP+ | Vender Name: | Olinkcom |
|---|---|---|---|
| Juniper Compatible: | JNP-56G-AOC-3M | Data Rate: | 56Gbps |
| Optional Length: | 3m, Etc. | Temperature: | 0℃ To 70℃ |
| Low Power Consumption: | ＜1.5W | Standards: | SFF-8436 |
| High Light: | QSFP+ Active Optical Cable,56G Active Optical Cables,qsfp+ aoc |
||

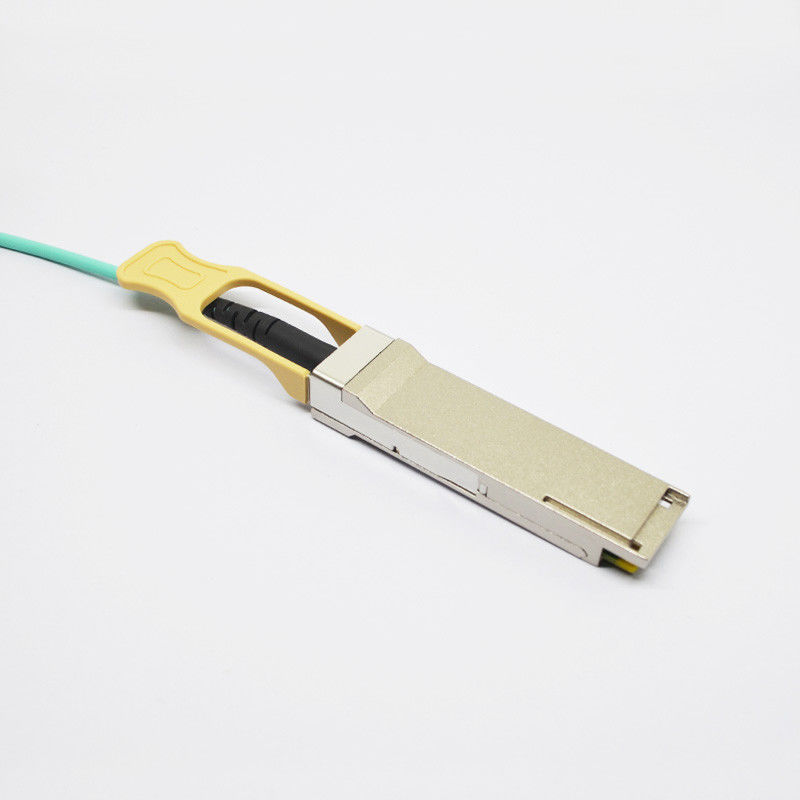

56G QSFP+ Active Optical Cables AOC Hot Plugable 38pin Connector
56G QSFP+ Active Optical Cable AOC JNP-56G-AOC-3M Juniper Networks Compatible
Description:
OLSQ85XA-CDM3 is designed so that 56GbE devices are designed with very high port density based on electrical and mechanical specifications.
Product Features
* Fully RoHS Compliant
* Full channel operating up to 56.1Gb/s
* Hot plugable 38pin connector
* Cable length up to 3m
* Low power consumption: ＜1.5W
* 0℃ to 70℃ operating wide temperature range
* Single +3.3V±5% power supply
* Digital Monitoring feature
* Metal enclose for lower EMI
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 3.6 | V | |
| Storage Temperature | TS | -10 | 70 | °C | |
| Relative Humidity | RH | 5 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 1.25 | 14.025 | Gb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 450 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C |
Optical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 860 | nm | |||
Electrical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| ModSelL-Module Select | VOL | 0 | 0.8 | V | ||
| ModSelL-Module Unselect | VOH | 2.5 | VCC | V | ||
| LPMode-Low Power Mode | VIL | 0 | 0.8 | V | ||
| LPMode-Normal Operation | VIH | 2.5 | VCC+0.3 | V | ||
| ResetL-Reset | VIL | 0 | 0.8 | V | ||
| ResetL-Normal Operation | VIH | 2.5 | VCC+0.3 | V | ||
| ModPrsL-Normal Operation | VOL | 0 | 0.4 | V | ||
| IntL-Interrupt | VOL | 0 | 0.4 | V | ||
| IntL-Normal Operation | VOH | 2.4 | VCC | V |
| Active cable input electrical characteristics | ||||||
| Differential Data Input Voltage | VIH-VIL | 200 | 1600 | mVpp | 1 | |
| Differential Input Impedance | RIN | 90 | 100 | 110 | Ω | |
| TX-Disable Input Voltage-Low | VIL | 0 | 0.8 | V | 2 | |
| TX-Disable Input Voltage-High | VIH | 2.0 | VCC | V | 2 | |
| TX-Fault Output Voltage-Low | VOL | 0 | 0.8 | V | 3 | |
| TX-Fault Output Voltage-High | VOH | 2.0 | VCC | V | 3 | |
| Active cable output electrical characteristics | ||||||
| Differential Data Output Voltage |
VOH- VOL |
350 | 800 | mV | 1 | |
|
Differential Output Impedance |
ROUT | 100 | Ω | |||
|
LOS-Asserted Output Voltage-Low |
VOL | 0 | 0.8 | V | 3 | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
3. Internal AC coupled
4. TX-Disable has an internal 4.7KΩ to 10 KΩ pull-up to VccT
5. Measure with 4.7KΩ pull-up to Vcc on host board
Cable Mechanical Specifications
| Parameter | Value | Units |
| Diameter | 3 | Mm |
| Minimum bend radius | 30 | Mm |
|
Length tolerance |
Length < 1 m: +5 /-0 | Cm |
| 1 m ≤length ≤ 4.5 m: +15 / -0 | Cm | |
| 5 m ≤length ≤ 14.5 m: +30 / -0 | Cm | |
| Length≥15.0 m +2% / -0 | m | |
| Cable color | Orange(OM2),Aqua(OM3),Megenta(OM4) |
Ordering Information
| Part Number | Description |
| OLSQ85XA-CDM3 | QSFP+, up to 56Gb/s, AOC, 0~70℃, with Digital Diagnostic Monitor |
