| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP82XA-CDM10 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatible: | Cisco | PN Number: | OLSP82XA-CDM10 |
|---|---|---|---|
| Channel Operating: | Up To 25.781 Gbps | Cable Length: | Up To 10m |
| Low Power Consumption: | ＜1.0W | Metal Enclose: | Lower EMI |
| High Light: | SFP28 Active Optical Cable,25G Active Optical Cables,25g aoc |
||

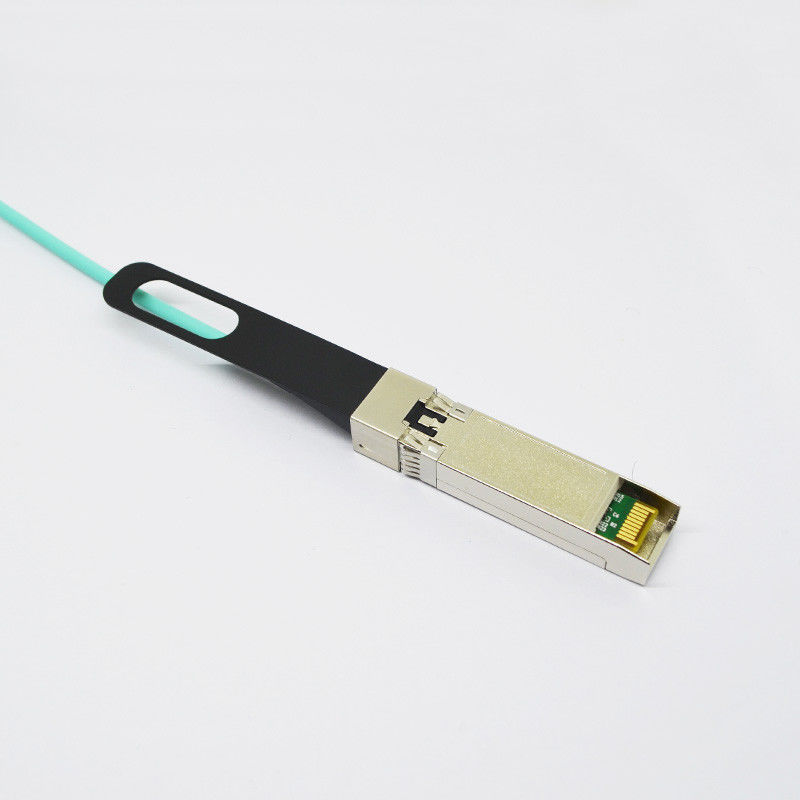

Hot Plugable 25G SFP28 Active Optical Cables 10m Cisco Compatible
10m (33ft) Cisco Networks Compatible AOC 25G-10M 25G SFP28 Active Optical Cable
Product Features
Quick Information:
| Product Name: | Active Optical Cable | Compatible: | Cisco |
| PN Number: | OLSP82XA-CDM10 | Brand Name: | OLKOPTO |
| Channel Operating: | up to 25.781 Gbps | Cable Length: | Up to 10m |
| Low power consumption: | ＜1.0W | Metal Enclose: | lower EMI |
| Operating case temp: | 0~70°C | MOQ: | 1pcs |
| Certification: | RoHS FCC CE GS UL FDA etc | Place of origin: | SZ China |
| Payment Term: | T/T or Net 30 days | Capacity: | 80-120k per month |
| Delivery: | 3-5 working days |
Applications
Standards
Description:
The Active Optical Cable (AOC) Assemblies for SFP28 Applications is a product to serve 10Gb Ethernet applications. It is designed to enable 10GbE equipment designs with very high port density based on the electrical and mechanical specification.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 860 | nm | |||
| Active cable input electrical characteristics | ||||||
| Differential Data Input Voltage | VIH-VIL | 200 | 1600 | mVpp | 1 | |
| Differential Input Impedance | RIN | 90 | 100 | 110 | Ω | |
| TX-Disable Input Voltage-Low | VIL | 0 | 0.8 | V | 2 | |
| TX-Disable Input Voltage-High | VIH | 2.0 | VCC | V | 2 | |
| TX-Fault Output Voltage-Low | VOL | 0 | 0.8 | V | 3 | |
| TX-Fault Output Voltage-High | VOH | 2.0 | VCC | V | 3 | |
| Active cable output electrical characteristics | ||||||
| Differential Data Output Voltage |
VOH- VOL |
400 | 800 | mV | 1 | |
|
Differential Output Impedance |
ROUT | 90 | 100 | 110 | Ω | |
|
LOS-Asserted Output Voltage-Low |
VOL | 0 | 0.8 | V | 3 | |
|
LOS-Deasserted Output Voltage-High |
VOH | 2.0 | VCC | V | 3 | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2.Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
3. Internal AC coupled
4. TX-Disable has an internal 4.7KΩ to 10 KΩ pull-up to VccT
5. Measure with 4.7KΩ pull-up to Vcc on host board
