| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP81XA-CDM10 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatible: | Cisco | Channel Operating: | Up To 10.3125 Gbps |
|---|---|---|---|
| Hot Plugable: | 20pin Connector | Low Power Consumption: | ＜1.0W |
| Commerical Temperature: | 0~70°C | Industrial Tempture: | -40 To 85 °C |
| High Light: | 10G Active Optical Cable,SFP+ Active Optical Cable,10g SFP+ aoc |
||

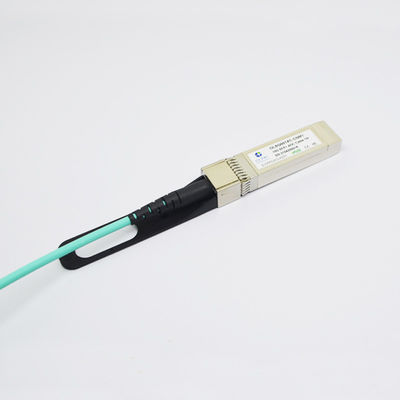

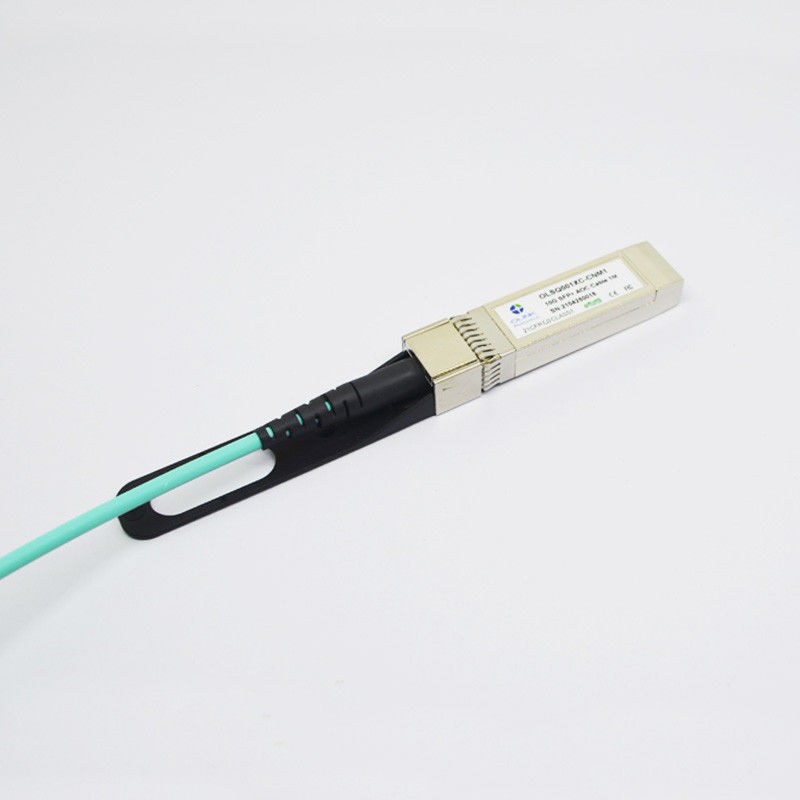

10G SFP+ Active Optical Cable AOC 10 Meter Distance 20pin Connector
Cisco SFP-10G-AOC10M Compatible 10G SFP+ Active Optical Cable 10 Meter Distance
Product Features
Quick Information:
| Product Name: | SFP+ Active Optical Cable |
| PN: | OLSP81XA-CDM10 |
| Compatible: | Cisco |
| Channel Operating: | up to 10.3125 Gbps |
| Hot plugable | 20pin connector |
| Low power consumption | ＜1.0W |
| Commerical Temperature | 0~70°C |
| Industrial Tempture | -40 to 85 °C |
| Certification: | ISO9001 |
| Place of origin: | SZ,China |
| Jacket Material: | OFNP |
| Cable length: | 10m |
| Max Data Rate | 10G |
Applications
Standards
Description:
The Active Optical Cable (AOC) Assemblies for SFP+ Applications is a product to serve 10Gb Ethernet applications. It is designed to enable 10GbE equipment designs with very high port density based on the electrical and mechanical specification.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 860 | nm | |||
| Active cable input electrical characteristics | ||||||
| Differential Data Input Voltage | VIH-VIL | 200 | 100 | mVpp | 1 | |
| Differential Input Impedance | RIN | 90 | 100 | 110 | Ω | |
| TX-Disable Input Voltage-Low | VIL | 0 | 0.8 | V | 2 | |
| TX-Disable Input Voltage-High | VIH | 2.0 | VCC | V | 2 | |
| TX-Fault Output Voltage-Low | VOL | 0 | 0.8 | V | 3 | |
| TX-Fault Output Voltage-High | VOH | 2.0 | VCC | V | 3 | |
| Active cable output electrical characteristics | ||||||
| Differential Data Output Voltage |
VOH- VOL |
200 | 1000 | mV | 1 | |
|
Differential Output Impedance |
ROUT | 90 | 100 | 110 | Ω | |
|
LOS-Asserted Output Voltage-Low |
VOL | 0 | 0.4 | V | 3 | |
|
LOS-Deasserted Output Voltage-High |
VOH | 2.0 | VCC | V | 3 | |
We have a strong and experienced after-sales team.Your any question would be well supported.
