| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP551XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 1550nm 40km | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 1550nm |
| Distance: | 40km | Compatibility: | Huawei |
| Media Type: | SMF | Connector Type: | Duplex LC |
| Operating Temperature: | 0-70°C | DOM: | YES |
| High Light: | 40km 10G SFP+ Fiber Transceiver,1550nm 10G SFP+ Fiber Transceiver,40km 10g spf+ |
||

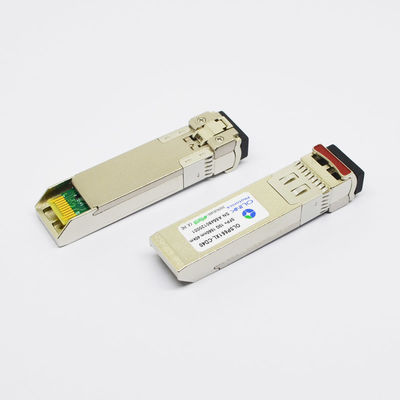

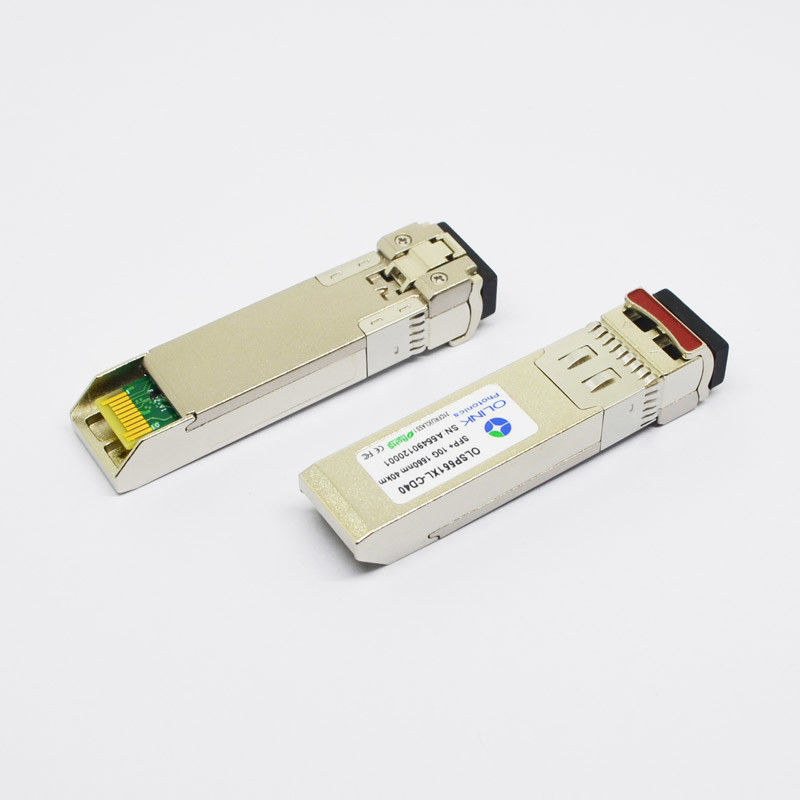

Huawei Compatible 10G SFP+ Fiber Transceiver 1550nm 40km DOM LC
Huawei Compatible 10GBase-ER SFP+ Transceiver (SMF, 1550nm, 40km, DOM, LC)
10GBase-ER optical transceivers are Small Form Factor Pluggable (SFP+) transceivers designed for use in 10-Gigabit multi-rate links up to 40km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and 10GBASE-ER/EW; support 4x, 8x, and 10x Fibre Channel, over 40km links.
• Hot-pluggable SFP+ footprint
• Support 9.95Gb/s to 11.3Gb/s bit rates
• Uncooled 1550nm DFB transmitter
• 40km PIN photodiode receiver
• Single 3.3V power supply
• Power dissipation < 1.3W
Digital Diagnostic Specifications
The OLSP551XL-C(I)D40 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -3 | +5 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -17 | 0 | ±2dB |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Applications
• 10GBASE-ER/EW 10G Ethernet
• 8GB/10GB Fibre Channel
• SONET OC-192 IR-2
• SDH STM-64 ITU-T G.959.1 S-64.2b
• Ethernet Switch or IP Router Interconnect
Olinkcom's Huawei Compatible 10GBASE-ER SFP+ transceiver can be worked with the below Huawei network equipment.
• S5700-28X-LI-AC
• S5700-28X-LI-DC
• S5700-52X-LI-AC
• S5700-52X-LI-DC
• S5700-28X-PWR-LI-AC
• S5700-52X-PWR-LI-AC
• S5700-28X-LI-24S-AC
• S5700-28X-LI-24S-DC
• S5700-52X-LI-48CS-AC
• S5701-28X-LI-AC
• S5701-28X-LI-24S-AC
• S5700-26X-SI-12S-AC
• S5700-28C-SI
• S5700-28C-PWR-SI
• S5700-52C-SI
• S5700-52C-PWR-SI
• S5720-32P-EI-AC
• S5720-52P-EI-AC
• S5720-32X-EI-AC
• S5720-32X-EI-DC
• S5720-32X-EI-24S-AC
• S5720-32X-EI-24S-DC
• S5720-50X-EI-AC
• S5720-50X-EI-DC
• S5720-50X-EI-46S-AC
• S5720-50X-EI-46S-DC
