| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP851XL-CDS3 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Data Rate: | 11.3Gb/s Bit Rates | Form Factor: | SFP+ |
|---|---|---|---|
| Compatibility: | Juniper | Connector: | LC Duplex |
| DDM/DOM: | Supported | Distance: | 300m |
| Wavelength: | 850nm | Fiber Type: | MMF |
| Temperature: | 0~70 °C | Extinction Ratio: | >3dB |
| Receiver Overload: | 0.5dBm | Warranty: | 3 Years |
| High Light: | SR 10G SFP+ Fiber Transceiver,LC 10G SFP+ Fiber Transceiver,SR 10G sfp+ transceiver |
||

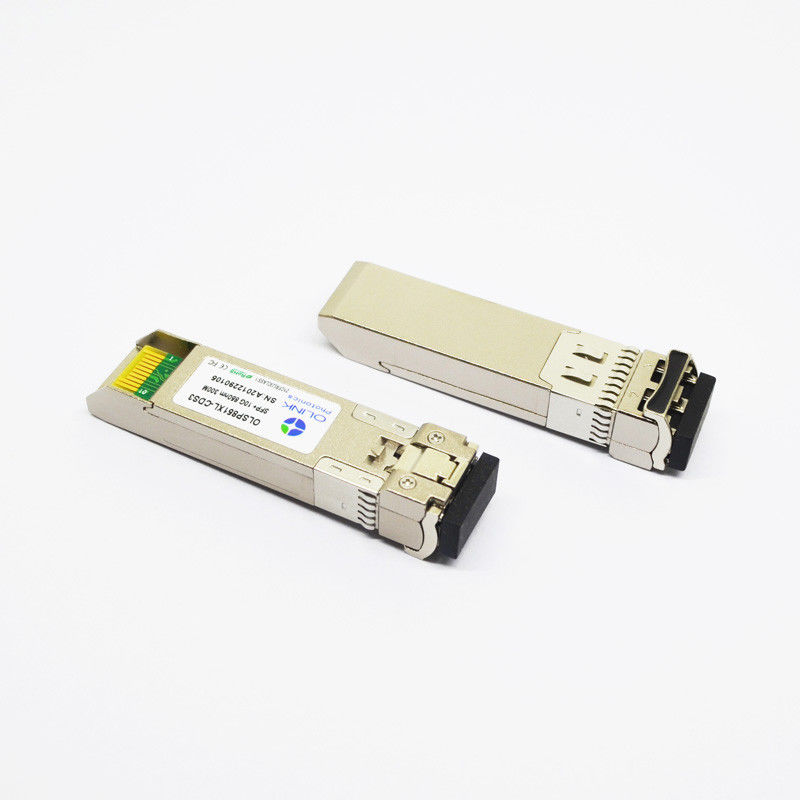

MMF SR 10G SFP+ Fiber Transceiver Module 850nm 300m LC Duplex Connector
10G-SR SFP+ 850nm 300m DOM LC MMF Juniper Transceiver Module
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 810 | 850 | 880 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width | Δλ | 0.85 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 2 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Electrical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | 2 | Vcc_HOST | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Descriptions
Olinkcom's OLSP851XL-CDS3 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet over MultiMode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-SR/SW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication and datacom.
Applications
● 10G Fiber Channel
● Other optical links
