| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSDxx1XL-CD40 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSDxx1XL-CD40 | Data Rate: | 10G |
|---|---|---|---|
| Transmission Distance: | 40km | Wavelength: | CH16~61 |
| Cisco Switch: | Cisco C6800-16P10G(-XL) | Low Power Consumption: | < 1.3W |
| High Light: | DWDM SFP+ Transceivers,10g DWDM SFP+ Transceivers,10g dwdm sfp+ |
||

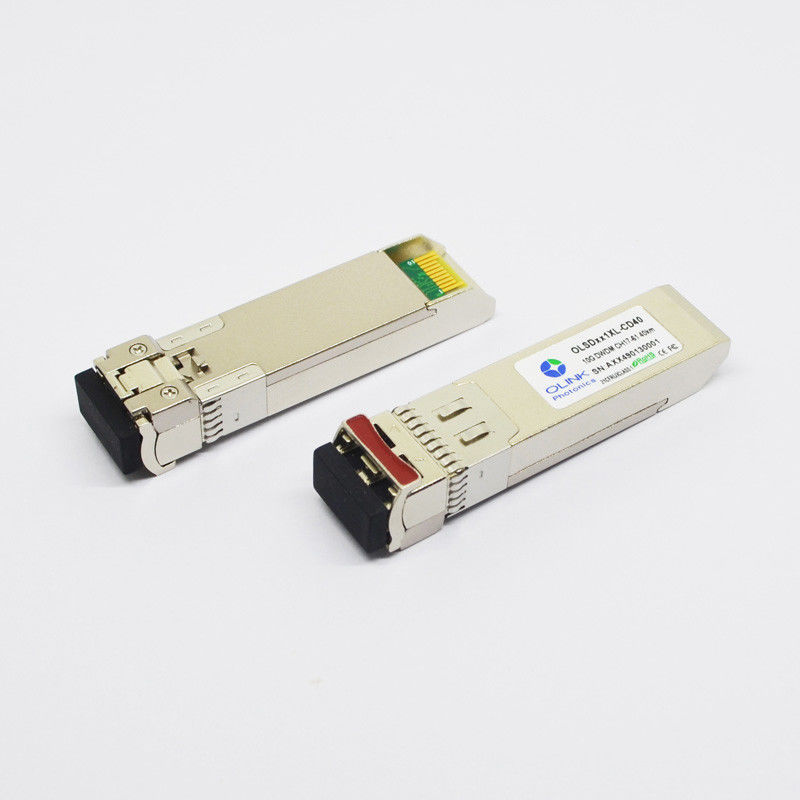

Cisco Compatible 10G DWDM SFP+ Transceivers 1560.61nm 40km DOM LC SMF
FS SFP10G-60.61 Compatible 10G DWDM SFP+ 1560.61nm 40km DOM LC SMF Transceiver
Product Features
● Supports 9.95 to 11.3 Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Cooled EML transmitter and PIN-TIA receiver
● Applicable for 40km SMF connection
● Low power consumption, < 1.3W
● 100 GHz channel spacing
● Digital Diagnostic Monitor Interface
● Optical interface compliant to ITU-T 694.1& G.698.1
● Electrical interface compliant to SFF-8431& SFF-8432
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● 10G Ethernet
● 2x,4x, 8x Fiber Channel
● ITU-T G.698.1
● Other optical links
Product Descriptions
Olinkcom’ OLSDxx1XL-C(I)D40 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over SingleMode fiber. They are compliant with SFF- 8431,SFF-8432 and ITU-T G.698.1. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.
This transceiver consists of two sections: The transmitter section incorporates a cooled EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Center Wavelength | λc | λ-0.1nm | λ | Λ+0.1nm | nm | |
| Center Wavelength (End of Life) | λc_EOL | λc±100pm | ||||
| Ave. output power (Enabled) | PAVE | -2 | 4 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 6 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1600 | nm | ||
| Receiver Sensitivity | PSEN | -16 | dBm | 2 | ||
| Overload | PAVE | +0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured 231 – 1 PRBS@10.3125G
2. Measured with worst ER=8.2dB; 231 – 1 PRBS@10.3125G
More details:
a.This item besides 100% support FS,also compatible with Juniper,Cisco,D-link,Ciena,MikroTik ect.
b.Warranty:3years
c.we have a very professional team of technical,can be always online to give you better solutions based on your problems.
