| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP851XL-CDS3 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Data Rate: | 11.3Gb/s Bit Rates | Form Factor: | SFP+ |
|---|---|---|---|
| Compatibility: | Cisco | DDM/DOM: | Supported |
| Connector: | LC Duplex | Fiber Type: | MMF |
| Receiver Type: | PIN | Wavelength: | 850nm |
| Temperature: | 0~70 °C | Distance: | 300m |
| Highlight: | 10 Gbe SFP+ Sr Fiber Transceiver,850nm Sr Fiber Transceiver,850nm SFP+ Fiber Transceiver |
||

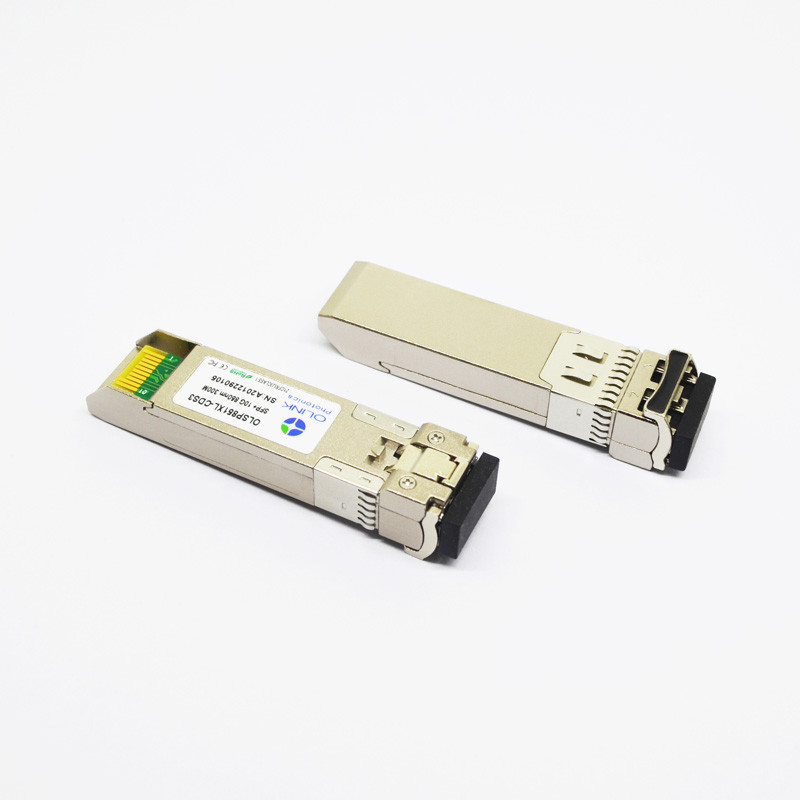

LC Duplex 10 Gbe SFP+ Sr Fiber Transceiver 850nm 300m Cisco Compatible
10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module Compatible Cisco SFP-10G-SR
Product Descriptions
This transceiver product is used in 10-Gigabit Ethernet over MultiMode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-SR/SW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication and datacom.
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 810 | 850 | 880 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width | Δλ | 0.85 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 2 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Product Highlights
● Supports up to 11.3Gb/s bit rates
● Duplex LC connector
● 850nm VCSEL transmitter, PIN photo-detector
● Up to 300m on 50/125um MMF(2000MHZ.KM)
● Hot pluggable SFP+ footprint
● Low power consumption, < 1W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae
● Electrical interface compliant to SFF-8431
● Operating case temperature: Commerical:0~70°C
Applications
● 10G Base-SR/SW at 10.3125G and 10G Fiber Channel
● Other optical links
