| Part Number: | OLSB231XL-CD10 | Data Rate: | 10G |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | TX1270/RX1330 |
| Cisco Switch: | Cisco C6800-16P10G(-XL) | Low Power Consumption: | < 1.3W |
| High Light: | 10km 10G SFP+ Fiber Transceiver,DOM 10G SFP+ Fiber Transceiver,1270nm SFP+ module |
||

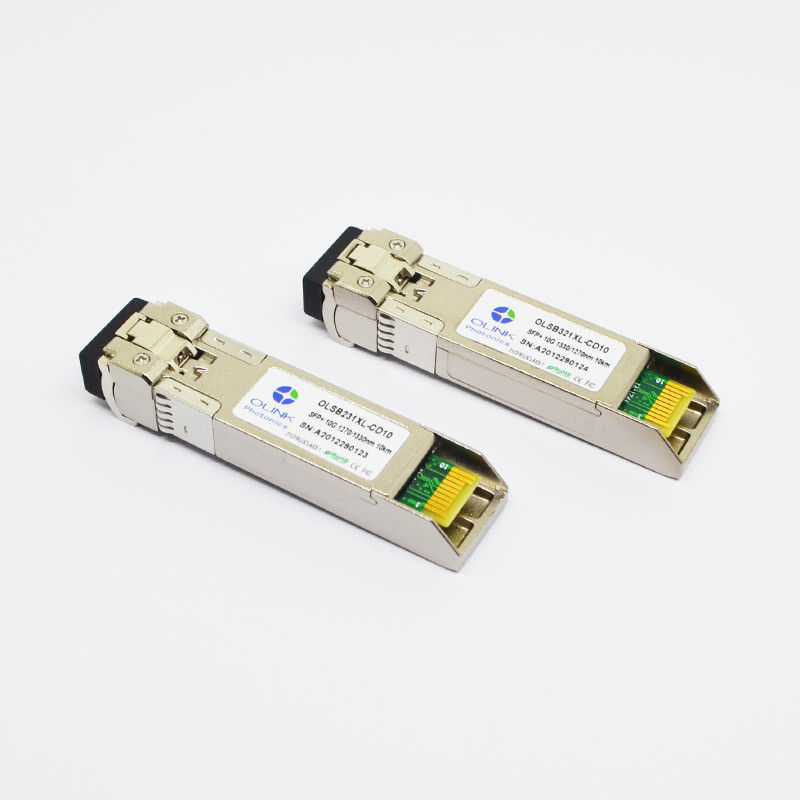

BiDi 1270nm TX 1330nm RX 10km 10G SFP+ Fiber Transceiver DOM LC Single Mode
Netgear SFP+10G-BXU Compatible BiDi 1270nm-TX/1330nm-RX 10km DOM LC SMF
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Simplex LC Connector
● Hot pluggable SFP+ footprint
● Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
● Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
● Applicable for 10km SMF connection
● Low power consumption, < 1.3W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● 10GBASE-LR at 10.3125Gbps
● 10GBASE-LW at 9.953Gbps
● Other optical link
Product Descriptions
Olinkcom’s OLSBxx1XL-C(I)D10 series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The OLSBxx1XL-CD10 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1250 | 1270 | 1290 | nm | |
| 1310 | 1330 | 1350 | ||||
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1330 | nm | |||
| 1270 | ||||||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -12.6 | dBm | 2 | ||
| Receiver Sensitivity(ER=6) | PSEN2 | -14.4 | dBm | 2 | ||
| Average Receive Power | PAVE | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -17 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
More details:
a. This item besides 100% support FS,also compatible with Juniper,Cisco,D-link,Ciena,MikroTik ect.
b. Warranty:3years
c. we have a very professional team of technical,can be always online to give you better solutions based on your problems.
