| Part Number: | OLSCxx1XL-CD40 | Data Rate: | 10G |
|---|---|---|---|
| Transmission Distance: | 40km | Wavelength: | 1470~1610nm |
| Cisco Switch: | Cisco 5700 AIR-CT5760-50-K9 | Low Power Consumption: | < 1.2W |
| High Light: | SMF 10G SFP+ Fiber Transceiver,1470nm 10G SFP+ Fiber Transceiver,1470nm 10G SFP+ Transceiver |
||

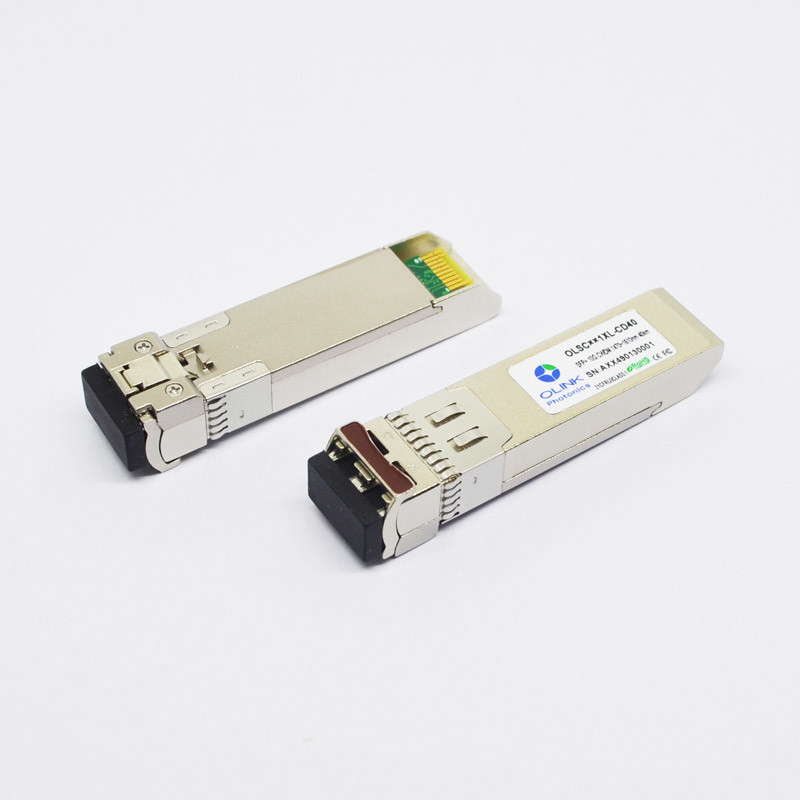

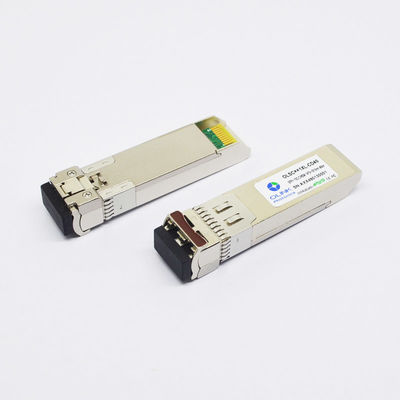

Generic SMF 10G SFP+ Fiber Transceiver 1470nm DOM For Data Communication
Generic 10G CWDM SFP+1470~1610nm 10km SMF Transceiver Module DOM LC Connector
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Uncooled 1350nm~1610nm DFB transmitter, PIN photo-detector
● Applicable for 40km SMF connection
● Low power consumption, < 1.2W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● 10GBASE-ER/EW at 10.3125Gbps
● 10G Ethernet
● Other optical links
Product Descriptions
Olinkcom’ OLSCxx1XL-C(I)D40 CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. This transceiver consists of two sections: The transmitter section incorporates a CWDM EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | λ-7.5nm | λ | λ+7.5nm | nm | 1 |
| Ave. output power (Enabled) | PAVE | -3 | 6 | dBm | 2 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1620 | nm | ||
| Receiver Sensitivity | PSEN | -13 | dBm | 3 | ||
| Overload | PAVE | -3 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -16 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1.The wavelength λ =1350nm~1610nm, Total 18 wavelengths,20nm spacing
2. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
3.Under the ER worst case=5, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
All our moduls have High-Performance,Cost-Effective and Reliable Transmission Features.
