| Part Number: | OLSCxx1XL-CD10 | Data Rate: | 10G |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | 1350~1370nm |
| Cisco Switch: | Cisco 5700 AIR-CT5760-50-K9 | Low Power Consumption: | < 1.2W |

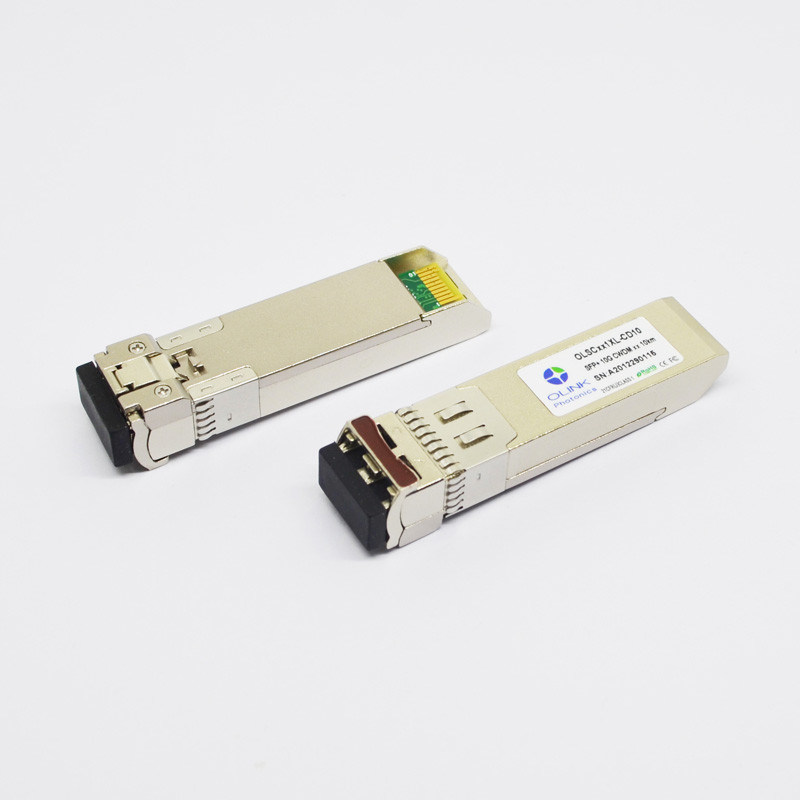

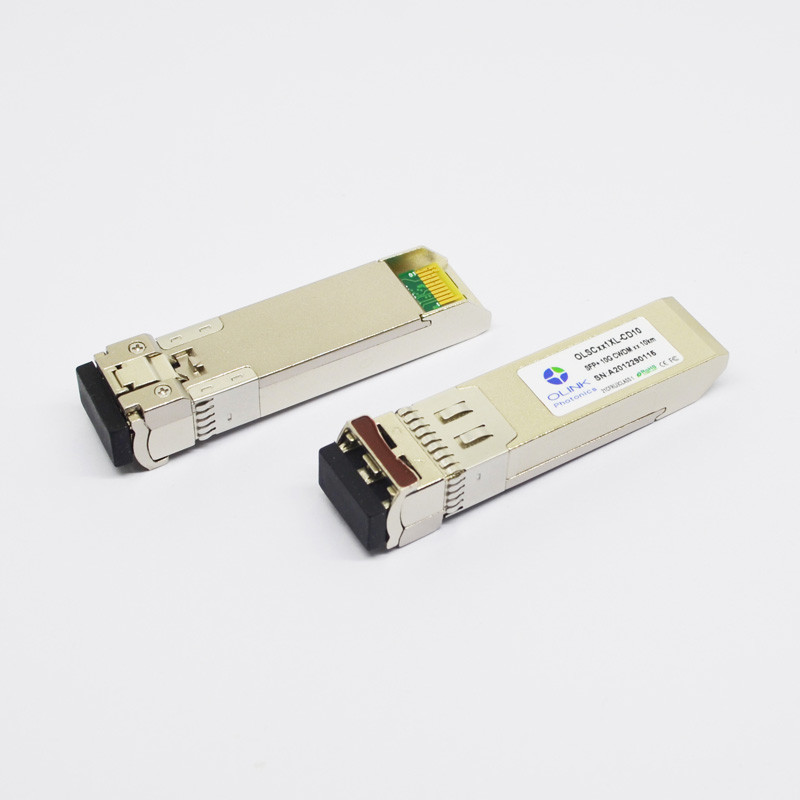

HW 100% Support 10G CWDM SFP+ 1350~1370nm 10km LC SMF Transceiver Module DOM
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Uncooled 1270nm~1370nm DFB transmitter, PIN photo-detector
● Applicable for 10km SMF connection
● Low power consumption, < 1.2W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Operating case temperature: Industrial:-40 to 85 °C
Applications
● 10GBASE-LR/LW at 10.3125Gbps
● 10G Ethernet
● Other optical links
Product Descriptions
Olinkcom’ OLSCxx1XL-ID10 CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km. This transceiver consists of two sections: The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Optical Characteristics (TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | λ-7.5nm | λ | λ+7.5nm | nm | 1 |
| Ave. output power (Enabled) | PAVE | -3 | +6 | dBm | 2 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 3 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 2.5 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1620 | nm | ||
| Receiver Sensitivity | PSEN | -13 | dBm | 3 | ||
| Overload | PAVE | +0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -16 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
Notes:
1.The wavelength λ =1270nm~1370nm, Total 6 wavelengths,20nm spacing
2. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
3.Under the ER worst =5, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Other Details:
a.Quality warranty:3years
b.Compatibility:Juniper,Cisco,FA,Ciena,D-link,MikroTik,ect,and support customized.
Low power consumption and low latency allow your network devices to work efficiently, and the DOM function supports real-time monitoring for transceiver status.
