10G CWDM SFP+ 1270~1310nm 10km DOM LC SMF Transceiver Module for Extreme Switches

Basic Information
Place of Origin: SZ China
Brand Name: OLKOPTO
Certification: ISO9001,ISO14001,OHSAS18001
Model Number: OLSCxx1XL-CD10
Minimum Order Quantity: 1pcs
Packaging Details: Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet
Delivery Time: 3-5 working days
Payment Terms: TT/Net 30days
Supply Ability: 80-100k per month
Part Number: OLSCxx1XL-CD10 Data Rate: 10G
Transmission Distance: 10km Wavelength: 1270~1330nm
Cisco Switch: Cisco UCS-IOM-2208XP Low Power Consumption: < 1.2W

10G CWDM SFP+ 1270~1310nm 10km DOM LC SMF Transceiver Module for Extreme Switches



Product Features

● Supports 9.95 to 11.3Gb/s bit rates

● Duplex LC connector

● Hot pluggable SFP+ footprint

● Uncooled 1270nm~1330nm DFB transmitter, PIN photo-detector

● Applicable for 10km SMF connection

● Low power consumption, < 1.2W

● Digital Diagnostic Monitor Interface

● Optical interface compliant to IEEE 802.3ae 10GBASE-LR

● Electrical interface compliant to SFF-8431

● Operating case temperature:

Commerical:0 to 70 °C Industrial:-40 to 85 °C



Applications

● 10GBASE-LR/LW at 10.3125Gbps

● 10G Ethernet

● Other optical links



Product Descriptions

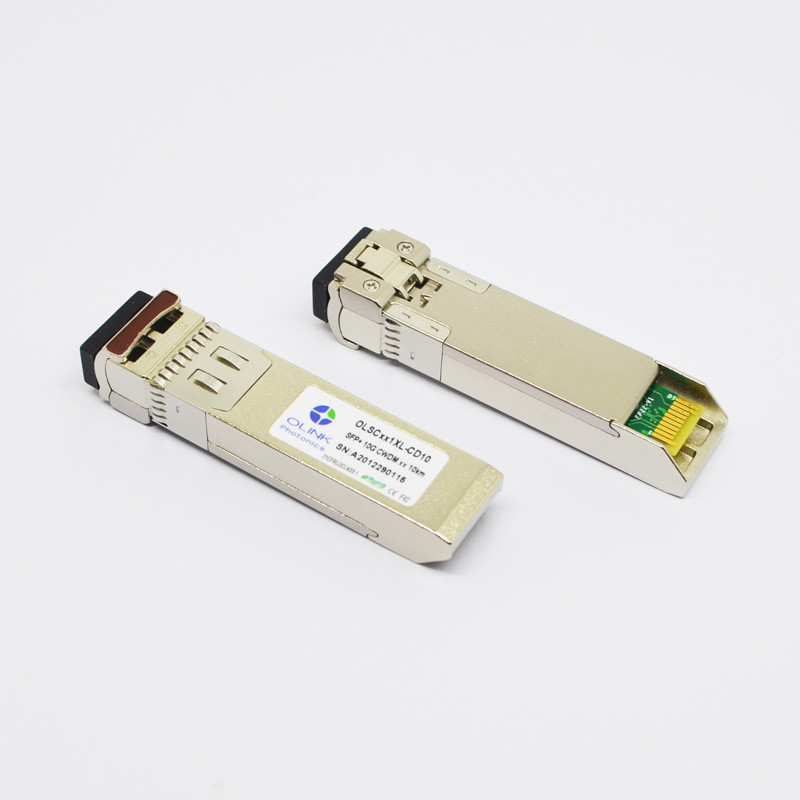

Olinkcom’ OLSCxx1XL-C(I)D10 CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km. This transceiver consists of two sections: The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.



Optical Characteristics (TOP(C) = 0 to 70 , TOP(I) =-40 to 85 ,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ λ-7.5nm λ λ+7.5nm nm 1
Ave. output power (Enabled) PAVE -3   +6 dBm 2
Side-Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 3     dB
RMS spectral width Δλ     1 nm
Rise/Fall time (20%~80%) Tr/Tf     50 ps
Dispersion penalty TDP     2.5 dB
Relative Intensity Noise RIN     -128 dB/Hz
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength λ 1260   1620 nm
Receiver Sensitivity PSEN     -13 dBm 3
Overload PAVE     +0.5 dBm
Receiver Reflectance Rrx     -12 dB
LOS Assert Pa -30     dBm
LOS De-assert Pd     -16 dBm
LOS Hysteresis Pd-Pa 0.5   4 dB



Notes:

1.The wavelength λ =1270nm~1330nm, Total 18 wavelengths,20nm spacing

2. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.

3.Under the ER worst =5, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12



Other Details:

a.Quality warranty:3years

b.Compatibility:Juniper,Cisco,FA,Ciena,D-link,MikroTik,ect,and support customized.




High-Performance Features offers Cost-Effective and Reliable Transmission

Low power consumption and low latency allow your network devices to work efficiently, and the DOM function supports real-time monitoring for transceiver status.
