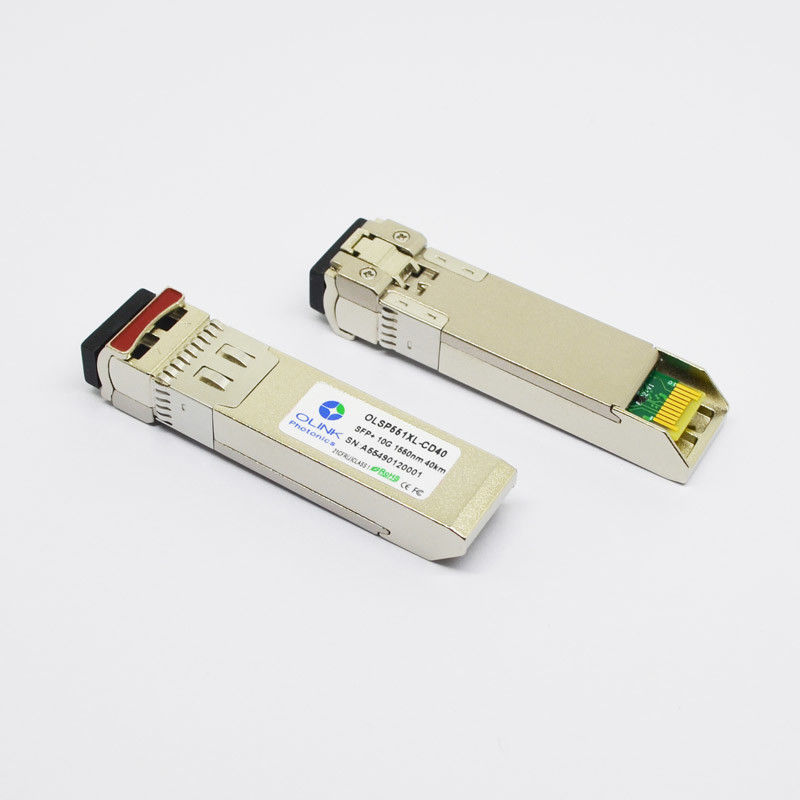

Brocade Compatible 10GBASE-ER SFP+ 1550nm 40km DOM LC Optical Transceiver Module

Basic Information
Place of Origin: SZ China
Brand Name: OLKOPTO
Certification: ISO9001,ISO14001,OHSAS18001
Model Number: OLSP551XL-CD40
Minimum Order Quantity: 1pcs
Packaging Details: Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet
Delivery Time: 3-5 working days
Payment Terms: TT/Net 30days
Supply Ability: 80-100k per month
Part Number: OLSP551XL-CD40 Data Rate: 10G
Transmission Distance: 40km Connector Type: LC
Cisco Switch: Cisco C6800-SUP6T Low Power Consumption: < 1W

Brocade Compatible 10GBASE-ER SFP+ 1550nm 40km DOM LC Optical Transceiver Module





Product Features

● Supports 9.95 to 11.3Gb/s bit rates

● Duplex LC connector

● Hot pluggable SFP+ footprint

● Uncooled 1550nm DFB transmitter, PIN photo-detector

● Applicable for 40km SMF connection

● Low power consumption, < 1.3W

● Digital Diagnostic Monitor Interface

● Optical interface compliant to IEEE 802.3ae 10GBASE-ER

● Electrical interface compliant to SFF-8431,SFF-8432

● Operating case temperature:

Commerical:0 to 70 °C Industrial:-40 to 85 °C



Applications

● 10GBASE-ER/EW at 10.3125Gbps

● OTN G.709 OTU1e/2/2e

● 4x, 8x and 10x 10G Fiber Channel

● Other optical links





Product Descriptions

Olinkcom’ OLSP551XL-C(I)D40 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over G.652 SingleMode fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ER/EW. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.





Optical Characteristics (TOP(C) = 0 to 70 , TOP(I) =-40 to 85 ,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ 1530   1570 nm
Ave. output power (Enabled) PAVE -2   4 dBm 1
Side-Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 4     dB
RMS spectral width Δλ     1 nm
Dispersion penalty TDP     4 dB
Relative Intensity Noise RIN     -128 dB/Hz
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength   1260   1600 nm
Receiver Sensitivity @10.3G       -16 dBm 2
Path Penalty PP     2 dB
Overload PAVE     +0.5 dBm
LOS Assert Pa -30     dBm
LOS De-assert Pd     -18 dBm
LOS Hysteresis Pd-Pa 0.5     dB



Notes:

1. Measured with worst ER=5dB

2. PRBS 231 – 1 and BER<10-12.





Other Details:

a.Quality warranty:3years

b.Compatibility:Juniper,Cisco,FA,Ciena,D-link,MikroTik,ect,and support customized.


High-Performance Features offers Cost-Effective and Reliable Transmission

Low power consumption and low latency allow your network devices to work efficiently, and the DOM function supports real-time monitoring for transceiver status.
