| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP851XL-CDS3 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 850nm 300m | Compatibility: | Alcatel |
|---|---|---|---|
| Form Factor: | SFP+ | Data Rate: | 10G |
| Wavelength: | 850nm | Reach: | 300m |
| Transmission Media: | MM | Cable Connector: | LC |
| DOM (Digital Optical Monitoring): | Yes | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | 10G Multimode Fiber Module,SFP+ Multimode Fiber Module,10G sfp+ module |
||

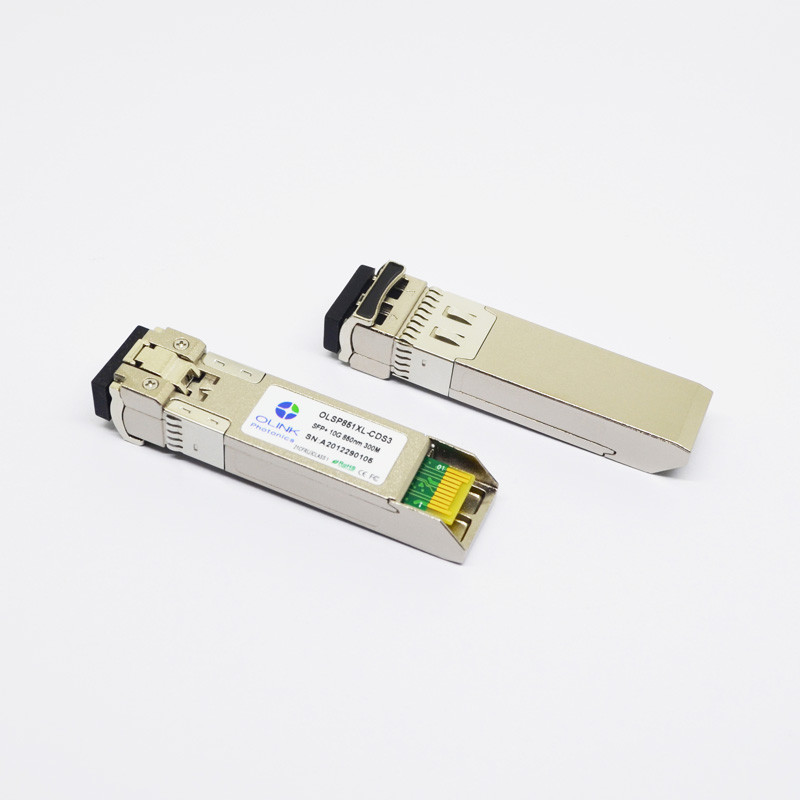

Alcatel Compatible SFP+ 10G Multimode Fiber Module SR 850nm 300m
Alcatel Compatible SFP+ 10GBase-SR 850nm 300m MM transceiver
The SFP+ 10GBase-SR is a 10G SR multi-mode multi-rate SFP+ transceiver using 850nm wavelength and reaching up to 300m distance on 50/125um fiber. They can be used for 10G Ethernet, SONET or SDH networks.
The SR standard is used for short range fiber connections, mostly inbuilding, wherever multi-mode OM3 fiber is available. The transceivers follow the industry standards of SFP Multi-Source Agreement (MSA) and SFF-8472, making them directly interchangeable with any networking device following industry standards.
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2.20%~80%
3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Digital Diagnostic Specifications
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 2 |
| Transmitter output power | DTx-Power | dBm | -8 | +1 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -13 | 0 | ±2dB |
Notes:
1. Internally measured
2. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Product Descriptions
Olinkcom’s OLSP851XL-C(I)DS3 is an Enhanced Small Form-factor Pluggable (SFP+) transceiver module with maximum data transfer rate of 10 Gbps up to 300m over multimode fiber cable. It is used in compatible network devices with SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Applications
● 10G Base-SR/SW at 10.3125G
● 10G Fiber Channel
● SONET, SDH networks
FAQ
1. How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
2. What is your terms of delivery?
EXW, FOB, DAP ... is available, you can contact with us for more details
