| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSP311XL-CD02 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSP311XL-CD02 | Data Rate: | 10G |
|---|---|---|---|
| Transmission Distance: | 2km | Wavelength: | 1310nm |
| High Light: | 10G SFP+ Fiber Optics Transceiver,2km fiber optics transceiver,2km 10G fiber transceiver |
||

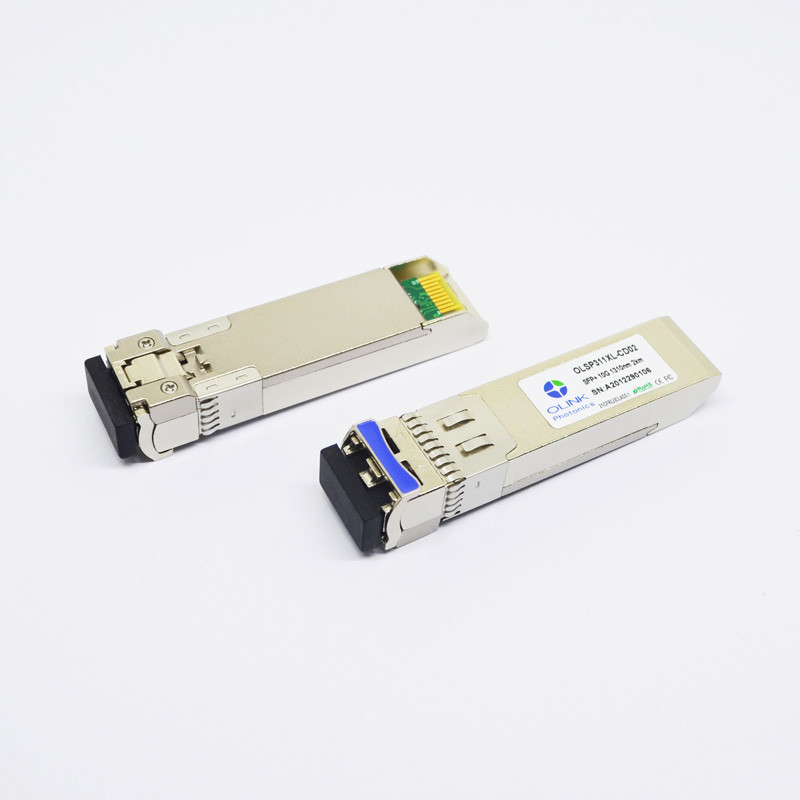

1310nm 2km 10G SFP+ Fiber Optics Transceiver Allied Telesis Compatible
Allied Telesis Compatible 10G Ethernet 1310nm 2km LC 10G SFP+ Optical Transceiver
Product Features
● Supports up to 11.3Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● 1310nm FP transmitter, PIN photo-detector
● Applicable for 2km SMF connection
● Low power consumption, < 1W
● Digital Diagnostic Monitor Interface
● Electrical interface compliant to SFF-8431
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● 10GBASE-LR at 10.31Gbps
● 10GBASE-LW at 9.95Gbps ●Other optical links
Product Descriptions
Olinkcom’ OLSP311XL-C(I)D02 are designed for use in Wireless basestation links up to 2 km at up to 11.3 Gb/s data rates for CPRI, OBSAI, LTE, or other Wireless applications. They are compliant with SFF-8431
, SFF-8432, SFF-8472, CPRI, and OBSAI.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Extinction Ratio | ER | 4 | dB | |||
| Ave. Launch power of TX OFF | POFF | -30 | dBm | |||
| Dispersion penalty | TDP | 2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1610 | nm | |||
| Receiver Sensitivity | PSEN1 | -10 | dBm | 2 | ||
| Overload | PAVE | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -16 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Quality Warranty:3 yeas
Biside compatible Alcatel-lucent,this time is no problem to 100% connect with Cisco,Juniper,D-link,MikroTik etc switches.
