| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSCxx1XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 850nm 300m | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 850nm |
| Distance: | 300m | Compatibility: | Huawei |
| Media Type: | MMF | Connector Type: | Duplex LC |
| Operating Temperature: | 0-70°C, -40-85°C | DOM: | YES |
| High Light: | EMC 10G SFP+ Fiber Transceiver,LC 10G SFP+ Fiber Transceiver,EMC 10G SFP+ |
||

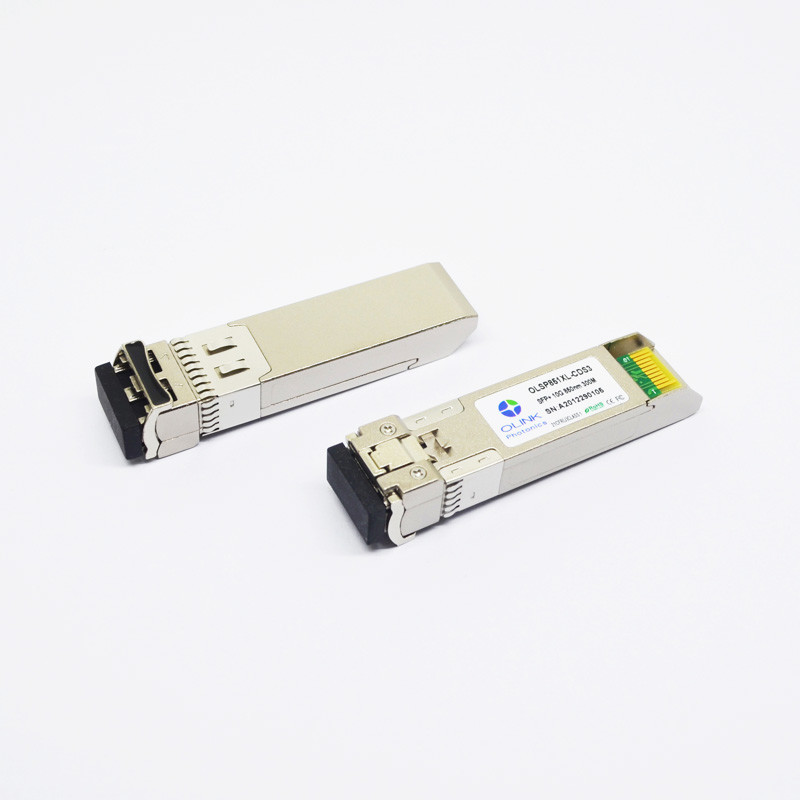

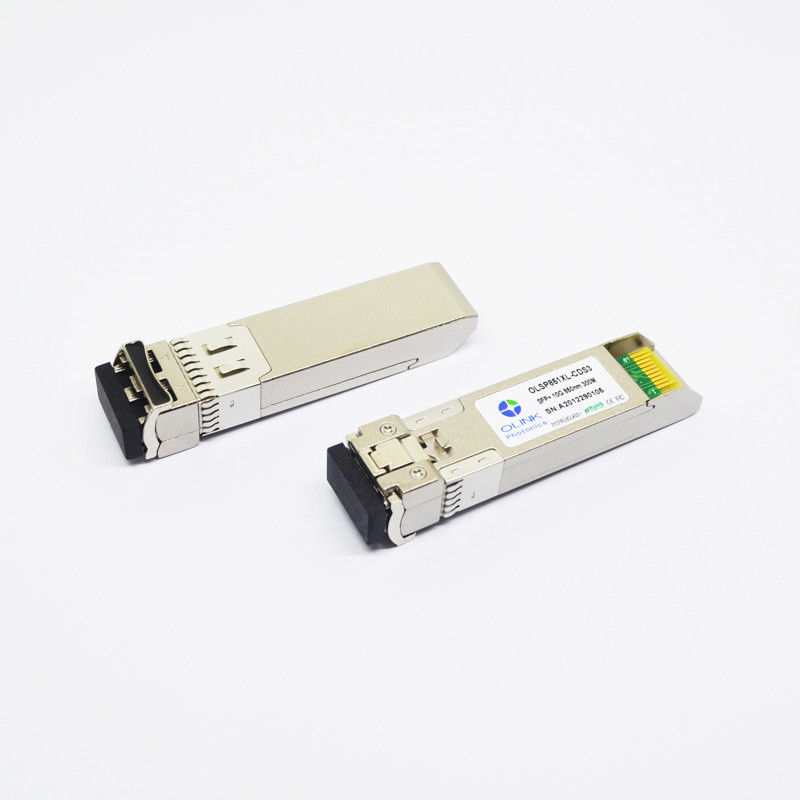

MMF 850nm 300m 10G SFP+ Fiber Transceiver Transceiver Huawei Compatible
10GBASE-SR SFP+ 850nm 300m Transceiver Huawei Compatible OMXD30000
10GBASE-SR supports up to 300m over OM3 MMF via an LC duplex connector. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of HW switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
● 10 Gigabit Fiber SFP+ Transceiver
● MM LC with DDM / DOM
● 300m (984 ft)
● 850 nm optical wavelength
● < 1W Power Dissipation
● Operating case temperature: Commerical:0~70°C, Industrial:-40 to 85 °C
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Product Descriptions
Olinkcom’s OLSP851XL-C(I)DS3 delivers 10 Gigabit connectivity over multimode fiber cable with a range of up to 300 m (984 ft). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment.
Applications
● 10G Base-SR/SW at 10.3125G
● 10G Fiber Channel
● Other optical links
● 10G Ethernet
Olinkcom's Huawei Compatible 10GBASE-SR SFP+ transceiver can be worked with the below Huawei network equipment.
• S5720-52X-EI-AC
• S5720-36PC-EI-AC
• S5720-56PC-EI-AC
• S5720-36C-EI-28S-AC
• S5720-36C-EI-28S-DC
• S5720-36C-EI-AC
• S5720-36C-EI-DC
• S5720-36C-PWR-EI-AC
• S5720-36C-PWR-EI-DC
• S5720-56C-EI-48S-AC
• S5720-56C-EI-48S-DC
• S5720-56C-EI-AC
• S5720-56C-EI-DC
• S5720-56C-PWR-EI-AC
• S5720-56C-PWR-EI-DC
• S5720-56C-PWR-EI-AC1
• S5720-32C-HI-24S-AC
• S5720-56C-HI-AC
• S5720-56C-PWR-HI-AC
• S5720-56C-PWR-HI-AC1
• S9703
• S9706
• S9712
• S12704
• S12708
• S12712
