| Form Factor: | SFP+ | Data Rate: | 11.3Gb/s Bit Rates |
|---|---|---|---|
| Compatibility: | Arista | Fiber Type: | SMF |
| Connector: | LC Duplex | Wavelength: | 1310nm |
| Distance: | 40km | DDM/DOM: | Supported |

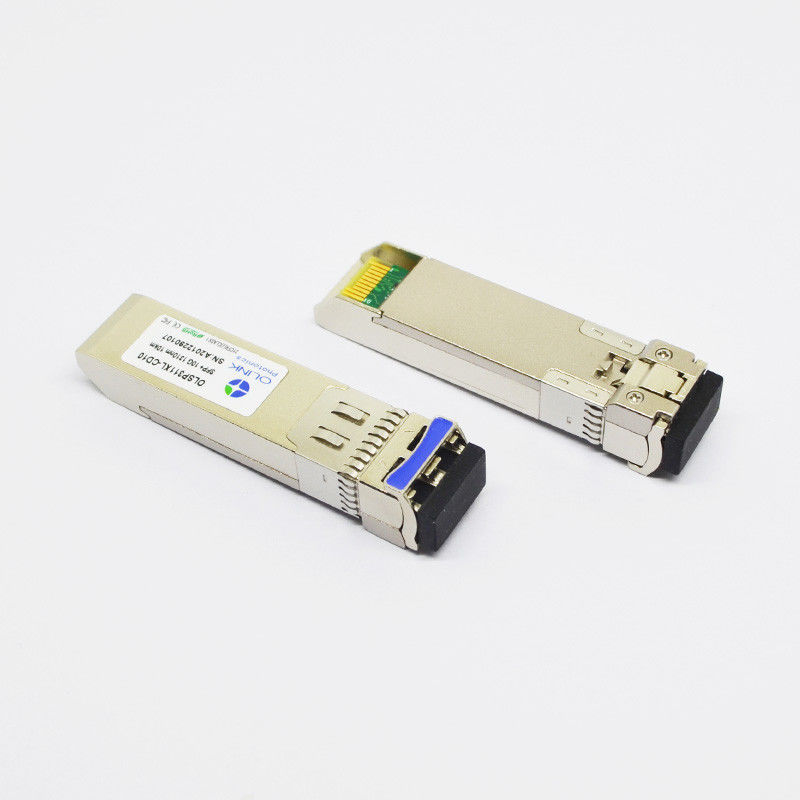

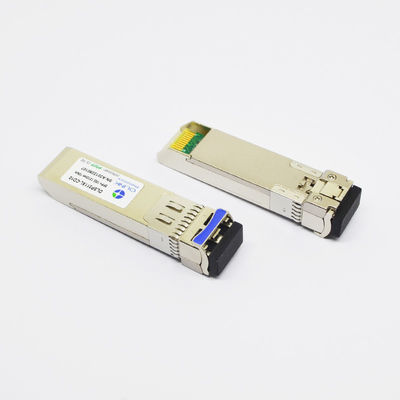

SFP-10G-ER40 Compatible Arista Networks 10G SFP+ 1310nm 40km Transceiver
Descriptions
SFP-10G-ER40 compatible Arista Networks 10G SFP+ 1310nm 40km transceiver are designed for use in 10G Ethernet links up to 40km. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ER/EW.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 400 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Features
● Supports 9.95 to 11.3Gb/s bit rates
● Hot pluggable SFP+ footprint
● Uncooled 1310nm DFB transmitter, PIN photo-detector
● Low power consumption, < 1.3W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-ER
● Electrical interface compliant to SFF-8431,SFF-8432
● Operating case temperature: Commerical:0 to 70 °C
Applications
● 10GBASE-ER/EW at 10.3125Gbps
● OTN G.709 OTU1e/2/2e
● 4x, 8x and 10x 10G Fiber Channel
● Other optical links
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 120 | 1200 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | 0 | 0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 350 | 700 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | 0 | 0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
