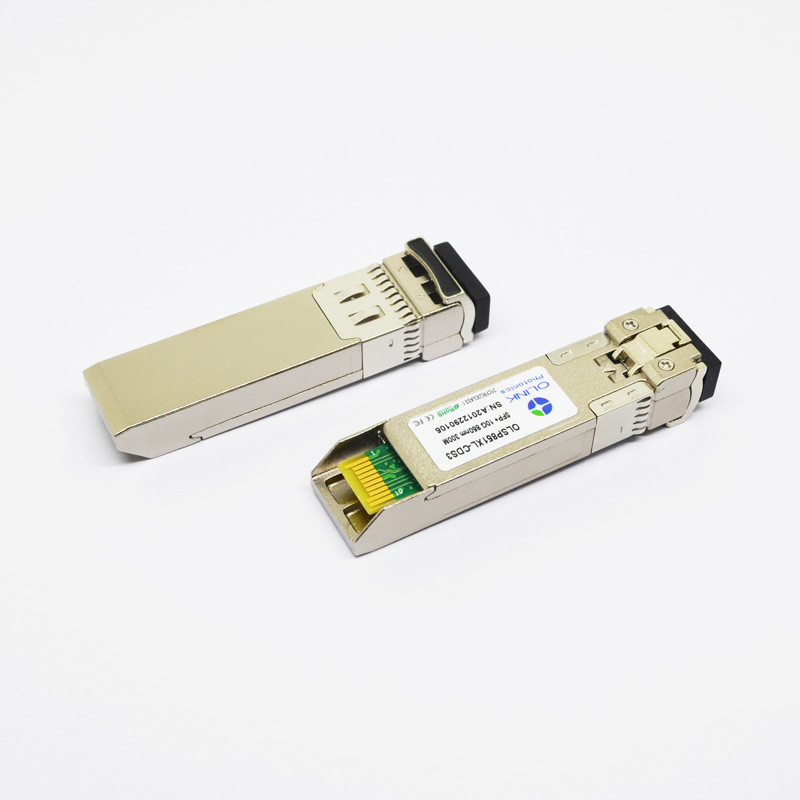

10GBASE-SR 10G SFP+ Fiber Transceiver

Basic Information
Place of Origin: China
Brand Name: OLKOPTO
Certification: CE, RoHS, FCC, FDA, UL, EMC, ISO9001
Model Number: OLSP851XL-C(I)DS3
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: 10pcs/ foil bag, individual package
Delivery Time: 3-6 working days
Payment Terms: T/T
Supply Ability: 80-120k per month
Product Name: 10G SFP+ 850nm 300m Data Rate: 10Gbps
Form Factor: SFP+ Wavelength: 850nm
Distance: 300m Compatibility: Planet
Power Supply Voltage: 3.3V Output Power: -6 ~ -1 DBm
Receiver Sensitivity: < -10 DBm Operating Temperature: 0-70°C, -40-85°C
Highlight:

10G SFP+ Fiber Transceiver

,

RoHS 10G SFP+ Fiber Transceiver

,

EMC SFP+ Fiber Transceiver

10GBASE-SR 10G SFP+ Fiber Transceiver

Planet MTB-SR Compatible 10GBASE-SR SFP+ 850nm 300m Transceiver



● LC Fiber Optic Connector Type

● 100% Guaranteed Compatibility

● Part number and unique product serialization

● Eliminates any network communication conflicts and provides easy identification

● Fully comply with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms



Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit Note
Supply Voltage Vcc -0.5 4.0 V
Storage Temperature TS -40 85 °C
Relative Humidity RH 0 85 %



Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.



General Operating Characteristics

Parameter Symbol Min. Typ Max. Unit Note
Data Rate DR 9.953 10.3125 10.518 Gb/s
Supply Voltage Vcc 3.13 3.3 3.47 V
Supply Current Icc5     280 mA
Operating Case Temp. Tc 0   70 °C
TI -40   85





Compatibility

• XGSW-28040
• XGSW-28040HP
• XGS3-24042
• XGS3-24242
• SGS-6340-16XR
• SGS-6340-20S4C4X
• SGS-6341-24P4X
• SGS-6341-24T4X
• SGS-5220-24S2XR
• SGS-5220-24P2X
• SGS-5220-24T2X
• IGS-5225-20T4C2X

FAQ:

Q1: What's your main products?

Olinkcom is the manufacturer of optical transceivers, offers full range of transceivers from 155M to 100G, including SFP, SFP+, XFP, SFP28, QSFP+, QSFP28, CFP2 etc.

Q2: Do you have Minimum order quantity?

We don't have any MOQ.

Related Products

PART NO. DATA RATE WAVELENGTH DISTANCE
OLSP311XL-CD02 10Gbps 1310nm 2km
OLSP311XL-CD10 10Gbps 1310nm 10km
OLSP311XL-CD20 10Gbps 1310nm 20km
OLSP311XL-CD10S 10Gbps 1310nm 40km
OLSP551XL-CD40 10Gbps 1550nm 40km
OLSP551XL-CD80 10Gbps 1550nm 80km
OLSP551XL-CDH1 10Gbps 1550nm 100km
