| Data Rate: | 10Gb/s | Form Factor: | SFP+ BIDI |
|---|---|---|---|
| Wavelength: | TX:1270 Nm/RX:1330 Nm | Distance: | 60km |
| Source: | Uncooled 1270nm DFB Transmitter, 1330nm APD Receiver | Sensitivity: | <-20 DBm |
| Fiber Type: | SMF | Application: | ●10.3125Gbps Ethernet ●10GBASE-EW At 9.953Gbps ●Other Optical Link |
| High Light: | SFP+ Fiber Optic Ethernet Transceiver,60km Fiber Optic Ethernet Transceiver,10g ethernet optical transceiver |
||
60km SFP+ Fiber Optic Ethernet Transceiver 1330 Nm 10G MSA Compliant
10Gb/s SFP+ BIDI TX:1270nm/RX:1330nm 60km Optical Transceiver Module MSA compliant

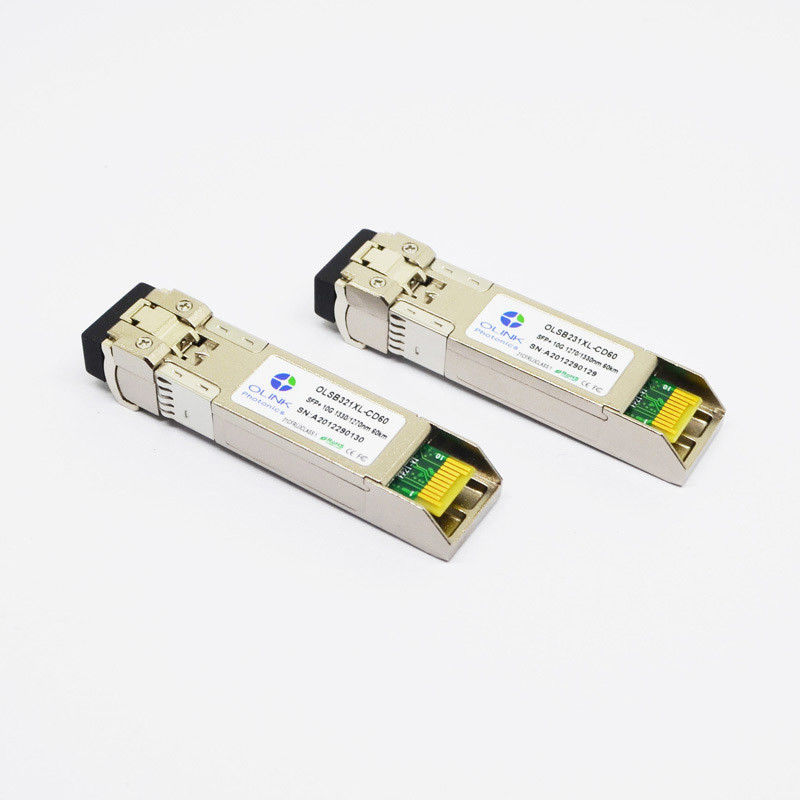

Olinkcom's OLSB231XL-CD60 is hot pluggable Small-Form-Factor SFP+ Bi-directional transceiver module, which is designed for long reach 10Gb/s duplex optical data communications application. The SFP+ BIDI module features a highly reliable 1270nm DFB transmitter and 1330nm APD photo-detector into single LC optical connector, which provides 60km link distance over single-strand single mode fiber.
Specification
• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
• 1270nm DFB transmitter, 1330nm APD photo-detector receiver
• Distance up to 60km on single mode fiber
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
Note |
|
Supply Voltage |
Vcc |
-0.5 |
4.0 |
V |
|
|
Storage Temperature |
TS |
-40 |
85 |
°C |
|
|
Relative Humidity |
RH |
0 |
85 |
% |
|
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
|
Parameter |
Symbol |
Min. |
Typ |
Max. |
Unit |
Note |
|
Transmitter |
||||||
|
Operating Wavelength |
λ |
1250 |
1270 |
1290 |
nm |
|
|
1310 |
1330 |
1350 |
|
|||
|
Ave. output power (Enabled) |
PAVE |
1 |
|
6 |
dBm |
1 |
|
Side-Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Extinction Ratio |
ER |
5 |
6 |
|
dB |
|
|
RMS spectral width |
Δλ |
|
|
1 |
nm |
|
|
Rise/Fall time (20%~80%) |
Tr/Tf |
|
|
50 |
ps |
|
|
Dispersion penalty |
TDP |
|
|
3.2 |
dB |
|
|
Relative Intensity Noise |
RIN |
|
|
-128 |
dB/Hz |
|
|
Output Optical Eye |
Compliant with IEEE 0802.3ae |
|||||
|
Receiver |
||||||
|
Operating Wavelength |
λ |
|
1330 |
|
nm |
|
|
|
1270 |
|
|
|||
|
Receiver Sensitivity |
PSEN1 |
|
|
-21 |
dBm |
2 |
|
Overload |
PAVE |
|
|
-7 |
dBm |
|
|
LOS Assert |
Pa |
-40 |
|
|
dBm |
|
|
LOS De-assert |
Pd |
|
|
-25 |
dBm |
|
|
LOS Hysteresis |
Pd-Pa |
0.5 |
|
|
dB |
|
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=6; BER<10-12; 231 – 1 PRBS.
Product Feature
1. One Fiber Bi-Di SFP+ Optical Transceiver, Bidi WDM SFP+
2. Up to 10.3 Gbps Bi-directional Data Links
3. Fully Compliant with SFP+ MSA
4. Compliant to IEEE 802.3ae 10GBASE-BX
5. SFF-8472 Digital Diagnostic Function
6. Simplex LC Connector
7. 1330TX/1270RX and 1270TX/1330RX
8. Distance Up to 10, 20, 40 km
9. Only Required +3.3 V Power Supply
10. RoHS Compliant
11. -5 to 70C Operating
Application:
10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s
1000 Base-LX Ethernet
8XFC at 8.5Gbps
4XFC at 4.25Gpbs
2XFC at 2.125Gpbs
1xFC at 1.0625Gbps
