| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL etc |
| Model Number: | OLSB231XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-100K per month |
| Data Rate: | 10Gb/s | Form Factor: | SFP+ |
|---|---|---|---|
| Wavelength: | 1270/1330nm | Distance: | 40km |
| Connector: | Single LC | Source: | Uncooled 1270nm DFB Transmitter, 1330nm PIN Photo-detector |
| Operating Temperature: | 0~70℃ | Application: | ●10GBASE-ER At 10.3125Gbps ●10GBASE-EW At 9.953Gbps ●Other Optical Link |
| High Light: | SFP+ BiDi Optical Transceiver,BiDi Optical Transceiver,10G SFP+ BiDi Transceiver |
||

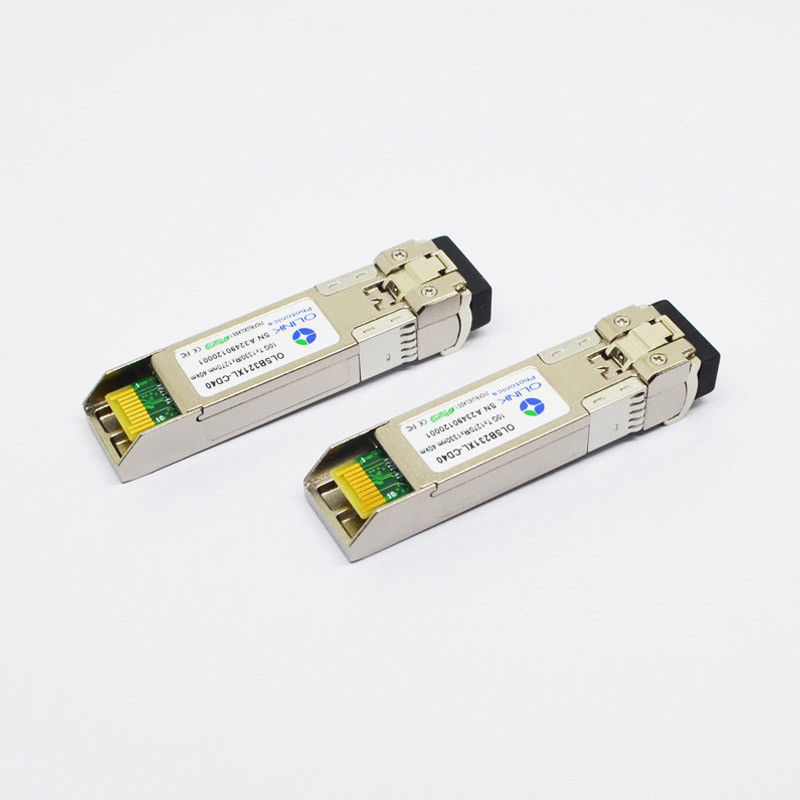

SFP-10G-BX40U-C Compatible SFP+ BiDi Optical Transceiver 1270nmTX 1330nmRX 40km
Cisco SFP-10G-BX40U-C Compatible BiDi SFP+ 1270nmTX/1330nmRX 40km Transceiver
OLSB231XL-CD40 is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1270 nm. and 1330 nm. PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with providing diagnostic information about the present operating conditions. OLSB231XL-CD40 operates in Standard 0°-70°C temperature range and has Single LC interface. SFP+ support 1.25-10.31 Gbps data rate and such applications as 10G Ethernet (10.31Gbps)|Gigabit Ethernet (1.25 Gbps)|STM-64 (9.95Gbps).
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.95 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 400 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Appications
Internet Service Provider (ISP)
Fiber To The Home routing and switching equipment
Mobile operator core
Backhaul SDH/SONET applications
Data Center networking for Ethernet connections
Other optical links
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
● Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
● Applicable for 40km SMF connection
● Low power consumption, < 1.2W
● Optical interface compliant to IEEE 802.3ae 10GBASE-ER
● Electrical interface compliant to SFF-8431
FAQ:
Q1: What's your main products?
Olinkcom is the manufacturer of optical transceivers, offers full range of transceivers from 155M to 100G, including SFP, SFP+, XFP, SFP28, QSFP+, QSFP28, CFP2 etc.
Q2: Do you have Minimum order quantity?
We don't have any MOQ.
Related Products
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE |
| OLSB231XL-CD40 | 10Gbps | TX1270/RX1330 | 40km |
| OLSB321XL-CD40 | 10Gbps | TX1330/RX1270 | 40km |
| OLSB231XL-CD60 | 10Gbps | TX1270/RX1330 | 60km |
| OLSB321XL-CD60 | 10Gbps | TX1330/RX1270 | 60km |
| OLSB451XL-CD80 | 10Gbps | TX1490/RX1550 | 80km |
| OLSB541XL-CD80 | 10Gbps | TX1550/RX1490 | 80km |
