| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL etc |
| Model Number: | OLSP851XL-CDS3 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-100K per month |
| Data Rate: | 10Gb/s | Form Factor: | SFP+ |
|---|---|---|---|
| Wavelength: | 850nm | Distance: | 300M |
| Connector: | Duplex LC | Source: | VCSEL+PIN |
| Optical Power: | -6~-1 | Sensitivity: | <-10.5dBm |
| Operating Temperature: | 0~70℃ | Fiber Type: | MMF |
| DOM: | Supported | Application: | 1.10G Base-SR/SW At 10.3125G 2.10G Fiber Channel |
| High Light: | OEM 10G SFP+ Fiber Transceiver,850nm 10G SFP+ Fiber Transceiver,300m 10G SFP+ |
||

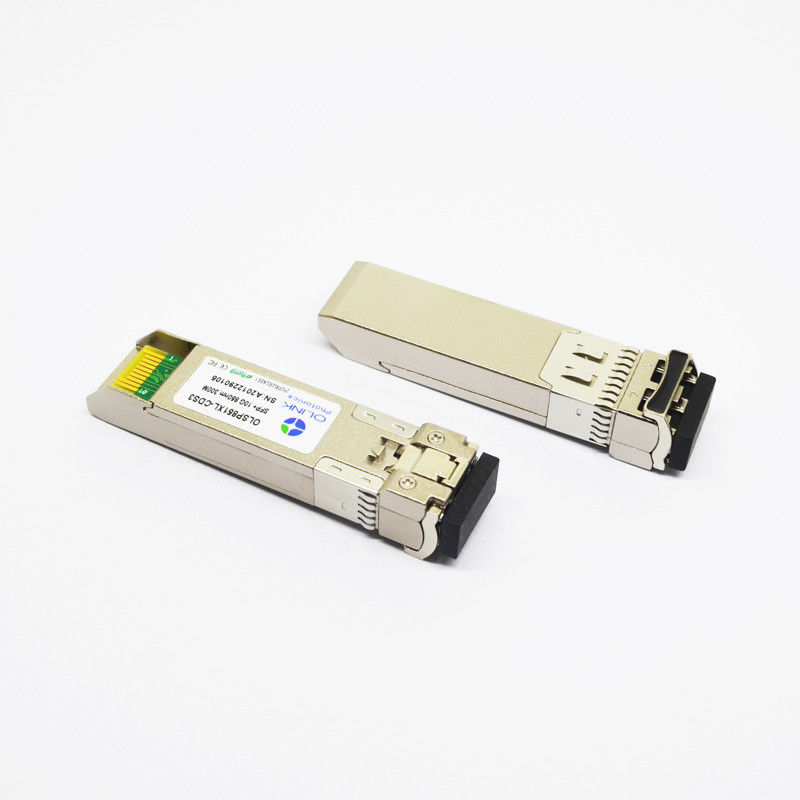

Cisco Compatible 10G SFP+ Fiber Transceiver 850nm 300m Multi Mode Fiber
Cisco SFP-10G-SR-C Compatible, 10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module
Product Descriptions
Olinkcom's OLSP851XL-C(I)DS3 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet over Multi Mode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-SR/SW. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.
Key Technical Data
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm |
| RX Wavelenght: | 850 nm |
| Minimum Optical Budget: | 4.6 dB |
| Maximum Distance: | 300m |
| Supported Data Rate: | 1.0625-10.52 Gbps |
| Supported Applications: | 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Receiver Sensitivity: | -10.5 dBm |
| Receiver Overload: | -1 dBm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
Product Features
● Supports up to 11.3Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● 850nm VCSEL transmitter, PIN photo-detector
● Up to 300m on 50/125um MMF(2000MHZ.KM)
● Low power consumption, < 1W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae
● Electrical interface compliant to SFF-8431
● Operating case temperature:
Commerical:0~70°C
Industrial:-40 to 85 °C
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2.20%~80%
3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Applications
● 10G Base-SR/SW at 10.3125G
● 10G Fiber Channel
● Other optical links
Olinkcom's 10G SFP+ SR transceiver is CE/RoHS certified and Compliant with product safety standards. It is fully compliant to SFP+ Multi Source Agreement SFF-8431. Consequently, it means that module is compatible with most of networking equipment. Besides, we can provide SFP+ transceiver with custom-encoded firmware in order to make it work almost in any equipment. Our focus is providing top quality service to the customers.
