| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSQ314XL-CD02 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 4pcs/ tray, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 7k-10k per month |
| Product Name: | 40G QSFP+ PSM4 | Data Rate: | 40-Gigabit |
|---|---|---|---|
| Form Type: | QSFP+ | Wavelength: | 1310 Nm |
| Reach: | 2km | Transmitter Power: | -6 ~ +0.5 DBm |
| Sensitivity: | < -12.6 DBm | Connector: | MPO |
| Media: | SMF | Operating Temp: | : 0°C To 70°C |
| Highlight: | 2km 40GBase PLRL4,MPO 40GBase PLRL4,SMF 40G QSFP+ Transceiver |
||

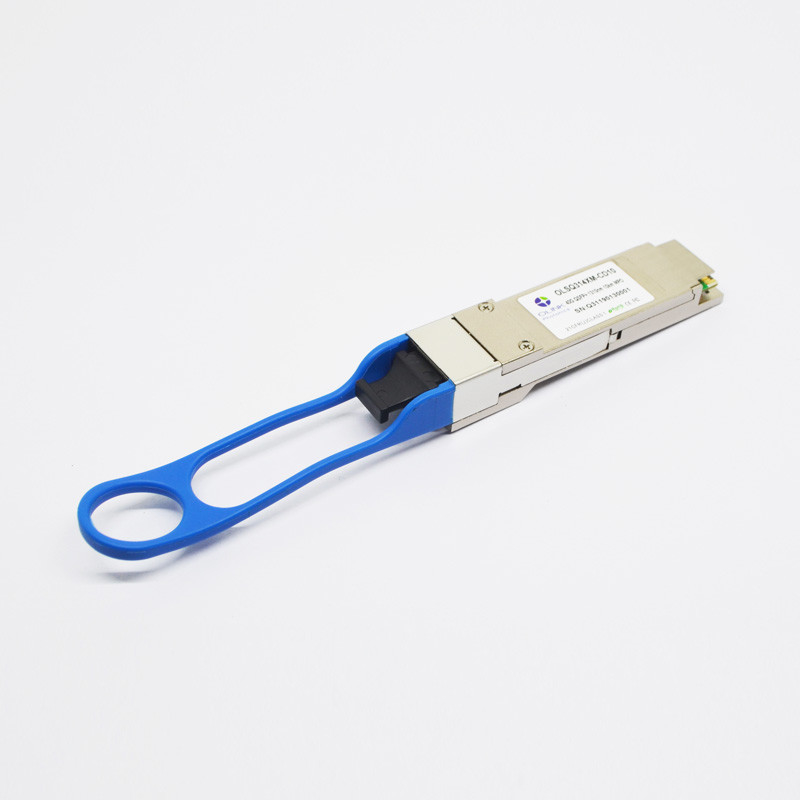

Huawei 02311DRW Compatible 40GBase-PLRL4 QSFP+ Transceiver (SMF, 1310nm, 2km, DOM, MPO)
40G QSFP+ PSM4 2km
This Huawei 02311DRW compatible QSFP+ transceiver provides 40GBase-PLRL4 throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1310nm via an MPO connector. It is guaranteed to be 100% compatible with the equivalent Huawei transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
• SFF-8436 Compliance
• MPO Connector
• Commercial Temperature 0 to 70 Celsius
• Single-mode Fiber
• Hot Pluggable
• Excellent ESD Protection
• Metal with Lower EMI
• RoHS Compliant and Lead Free
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.3 | 3.6 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
| Damage Threshold, per Lane | DT | 3.4 | dBm |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min | Typ | Max | Units | Note |
| Bit Rate per Lane | BR |
|
11.2 | Gb/s | ||
| Bit Error Ratio | BER |
|
|
10-12
|
|
|
| Distance on SMF | D1 |
|
|
2 | Km |
Notes:
1. Compliant with 40G Ethernet. Compatible with 1/10 Gigabit Ethernet and 1/2/4/8/10G Fibre Channel.
2. Tested with a PRBS 231-1 test pattern.
3. Per 40GBASE-LR4, IEEE 802.3ba.
Application
Data Aggregation and Backplane Applications
High-performance computing networks
Infiniband transmission at 4ch SDR, DDR and QDR
This pluggable 40GBASE-PLR4 QSFP+ SMF is a Fiber transceiver compatible with Huawei switch architectures, providing blazing fast 40GBase speeds over 10km to upgrade your fiber optic network's speed, bandwidth, and expandability in the widely popular QSFP+ form. Olinkcom transceivers arrive pre-coded and ready to deploy, delivering a confident solution that is fully compatible with your Huawei hardware.
