| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL etc |
| Model Number: | OLSQxx4XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | 4 pcs per pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 10K per month |
| Data Rate: | 40-Gigabit | Form Type: | QSFP+ |
|---|---|---|---|
| Wavelength: | 1270nm To 1330nm | Transceiver Type: | ER4 |
| Optical Power: | -2.7~4.5 | Sensitivity: | -16.8 |
| Media: | SMF | DOM: | DOM |
| High Light: | 40G QSFP+ Optical Transceiver,SMF QSFP+ Optical Transceiver,SMF 40g qsfp+ |
||

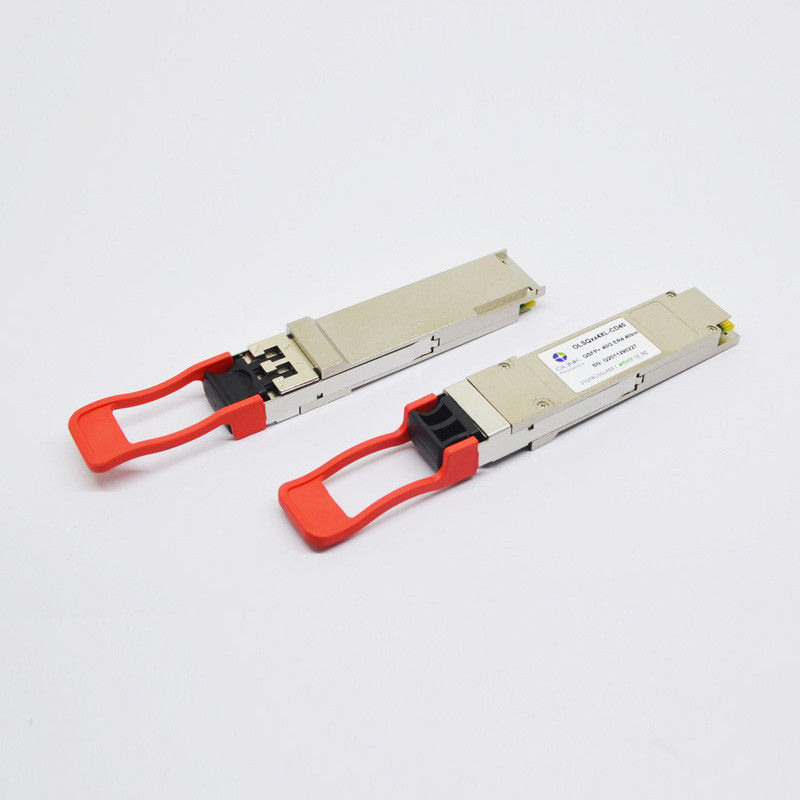

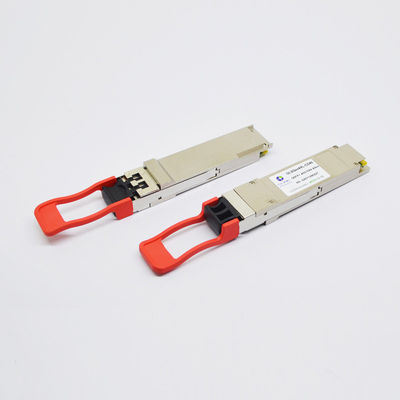

Extreme Networks 10335 Compatible, 40GBase-ER4 QSFP+ Transceiver Module
Product Descriptions
Olinkcom's QSFP-40G-SR4 provides 40GBase-ER4 throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1270nm to 1330nm via an LC connector. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Storage Temperature | Tst | -40 | +85 | ºC | ||
| Supply Voltage | Vcc | -0.5 | +3.6 | V | ||
| Relative Humidity | Rh | +5 | +95 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Operating Case Temperature | TC | 0 | - | +70 | °C | |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.46 | V | |
| Data rate, each Lane | 10.3125 | 11.3 | Gb/s |
• Functionally identical to Juniper Networks QSFPP-40GBASE-ER4
• High Channel Capacity: 40 Gbps per optics
• Up to 40km links on single mode fiber
• 4 CWDM channels 1271, 1291,1311 and 1331nm
• Electrically hot-swappable
• Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
• Supports Digital Diagnostics Monitoring
• RoHS6 Compliant
Product Brief
The 40GBase-ER4 QSFP+ transceiver is programmed and tested to be compatible with Extreme data center switches, routers, NICs and other optical transport devices for 40G Ethernet and high-performance computing networks.
Applications
High-speed interconnects within and between switches, routers and transport equipment
Server-Server Clusters, Super-computing interconnection
Proprietary backplanes
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
40GBASE-ER4 Ethernet links
Related Products
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE | Connector type | Product Name |
| OLSQ854XM-CDS1 | 40Gb/s | 850nm | 100m | MPO | QSFP+ SR4 |
| OLSQ314XL-CD02 | 40Gb/s | 1270~1330nm | 2km/10Km | MPO | QSFP+ LR4 PSM |
| OLSQxx4XL-CD10 | 40Gb/s | 1270~1330nm | 10km | LC | QSFP+ LR4 |
| OLSQxx4XL-CD30 | 40Gb/s | 1270~1330nm | 30km | LC | QSFP+ ER4 Lite |
| OLSQxx4XL-CD40 | 40Gb/s | 1270~1330nm | 40km | LC | QSFP+ ER4 |
FAQ
1. How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
2. What is your terms of delivery?
EXW, FOB, DAP ... is available, you can contact with us for more details
