| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSQ854XM-CDS1 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 4 pcs per pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10k per month |
| Dimensions: | 57mm X 15mm X 9mm (L X W X H) | Operating Temperature: | 0°C ~ 70°C |
|---|---|---|---|
| Laser Type: | Class 1 | Connector: | MPO / MTP |
| Wave Length: | 850nm | Data Rate: | 40GBase |
| DDM Support: | Yes | Product Weight: | 0.01kg |
| High Light: | 40GBASE-SR4 QSFP+,FDA QSFP+ Transceiver Module,FDA 40g qsfp+ |
||

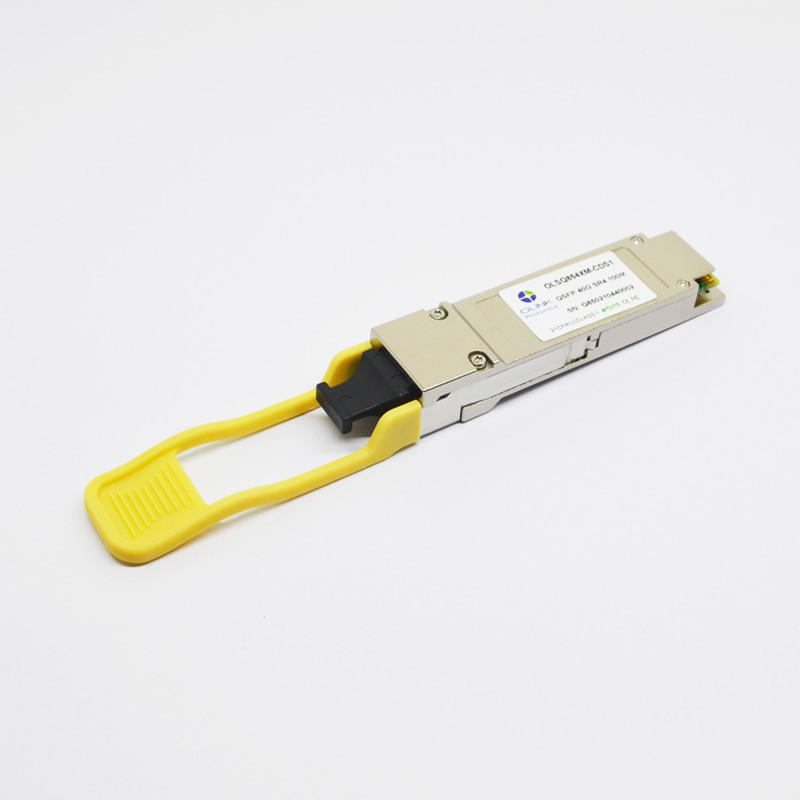

FDA 850nm 40GBASE-SR4 QSFP+ Transceiver Module Huawei Compatible
Huawei QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ MM MPO Transceiver
This is a Quad Small Form-factor Pluggable (QSFP) transceiver module with maximum data transfer rate of 40 Gbps up to 150m over multimode fiber cable. It is used in compatible network devices with a QSFP slot. The QSFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
• Functionally identical to Huawei QSFP-40G-SR4-HW
• High Channel Capacity: 40 Gbps per optics
• Up to 100m links on OM3 MMF
• High-Reliability 4-channel 850nm VCSEL laser
• Electrically hot-swappable
• Compliant with IEEE 802.3ba 40GBASE-SR4
• Power dissipation < 1.5 W
• Supports Digital Diagnostics Monitoring
• RoHS6 Compliant
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 3.6 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
| Damage Threshold, per Lane | DT | 3.4 | dBm |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Value | Unit | Note |
| Module Form Factor | QSFP+ | ||
| Number of Lanes | 4 Tx and 4 Rx | ||
| Maximum Aggregate Data Rate | 42.0 | Gb/s | |
| Maximum Data Rate per Lane | 10.3125 | Gb/s | |
| Protocols Supported | Typical applications include 40G Ethernet, Infiniband, Fibre Channel, SATA/SAS3 | ||
| Electrical Interface and Pin-out | 38-pin edge connector ,Pin-out as defined by the QSFP+ MSA | ||
| Management Interface | Serial, I2C-based, 400 kHz maximum frequency |
| Parameter | Symbol | Min | Typ | Max | Units | Note |
| Bit Rate per Lane | BR |
10.3125
|
Gb/sec | 1 | ||
| Bit Error Ratio | BER |
|
|
1e-12
|
|
2
|
| Distance on OM3 MMF (CDS1) | D1 |
|
|
100 | meters |
3
|
| Distance on OM4 MMF (CDS1) | D2 | 150 | meters | 3 |
Notes:
1. Compliant with 40G Ethernet. Compatible with 1/10 Gigabit Ethernet and 1/2/4/8/10G Fibre Channel.
2. Tested with a PRBS 231-1 test pattern.
3. Per 40GBASE-SR4, IEEE 802.3ba,Belong to part No: OLSQ854XM-CDS1
FAQ:
Q1: What's your main products?
Olinkcom is the manufacturer of optical transceivers, offers full range of transceivers from 155M to 100G, including SFP, SFP+, XFP, SFP28, QSFP+, QSFP28, CFP2 etc.
Q2: Do you have Minimum order quantity?
We don't have any MOQ.
| Related Products | ||||
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE | Connector type |
| OLSQ854XM-CDS1 | 40Gb/s | 850nm | 100m | LC |
| OLSQ314XL-CD02 | 40Gb/s | 1270~1330nm | 2km/10Km | MPO |
| OLSQxx4XL-CD10 | 40Gb/s | 1270~1330nm | 10km | MPO |
| OLSQxx4XL-CD30 | 40Gb/s | 1270~1330nm | 30km | LC |
| OLSQxx4XL-CD40 | 40Gb/s | 1270~1330nm | 40km | LC |
