| Data Rate: | 40Gbps | Form Type: | QSFP+ |
|---|---|---|---|
| Connector: | MPO/MTP | Optical Components: | DFB/PIN |
| Optical Power: | -7.5~2.5 | Sensitivity: | <-11.5 |
| Fiber Type: | SMF | Environment: | Operating: 0°C To 70°C |
| High Light: | QSFPP-4X10GE-LR,10km 40G QSFP+ Transceiver,40Gbps QSFP+ Transceiver |
||
QSFPP-4X10GE-LR Compatible 40G QSFP+ Transceiver 1310nm 10km
Juniper QSFPP-4X10GE-LR Compatible 4x10GbE QSFP+ LR 1310nm 10km Transceiver
Product Descriptions

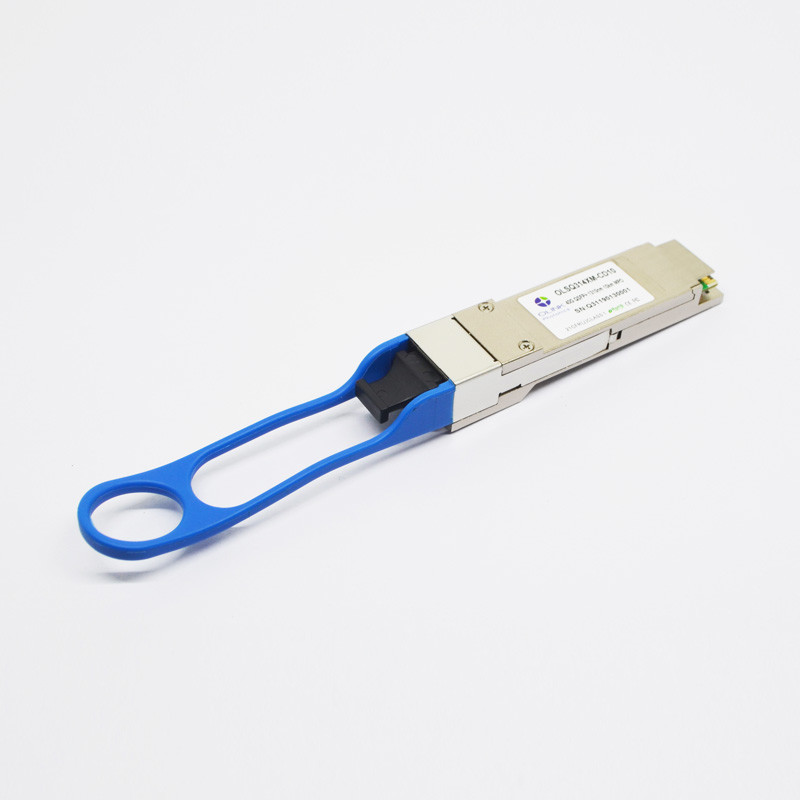

This 40G QSFP+ LR transceiver is compatible with Juniper network equipment and equivalent to Juniper QSFPP-4X10GE-LR. It is programmed and tested to work with Juniper 40 Gigabit Ethernet (GbE) switches, routers and other optical transport devices in enterprise data centers and other high-performance computing networks application. It provides an ideal replacement to OEM transceiver at far less price. This QSFPP-4X10GE-LR equivalent contains an MPO connector for the optical interface and a 38-pin connector for the electrical interface.
General Operating Characteristics
| Parameter | Symbol | Min | Typ | Max | Units | Note |
| Bit Rate per Lane | BR |
|
11.2 | Gb/s | 1 | |
| Bit Error Ratio | BER |
|
|
10-12
|
|
2
|
| Distance on SMF | D1 |
|
|
10 | Km |
3
|
Notes:
1. Compliant with 40G Ethernet. Compatible with 1/10 Gigabit Ethernet and 1/2/4/8/10G Fibre Channel.
2. Tested with a PRBS 231-1 test pattern.
3. Per 40GBASE-LR4, IEEE 802.3ba.
Optical Characteristics (TOP(C) = 0 to 70 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λc | 1290 | 1310 | 1330 | nm | |
| Ave. output power | PAVE | -7 | +2.3 | dBm | ||
|
Difference in launch power between any two lanes (OMA) |
DL | 5 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Peak power, each lane | PP | 4 | dBm | |||
| Dispersion penalty, each lane | TDP | 3.5 | dB | |||
|
Average launch power of OFF transmitter, each lane |
POFF | -30 | dB | |||
|
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 |
SPECIFICATION VALUES 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 |
Hit Ratio = 5x10-5 |
||||
| Receiver | ||||||
| Operating Wavelength | λc | 1310 | nm | |||
| Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1) | PSEN1 | -12.5 | dBm | 3 | ||
| Average Receive Power,each lane | PAVE | -11 | +2.4 | dBm | ||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -15 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with conformance test signal at TP3 for BER = 10-12 Receiver Characteristics
• High Channel Capacity: 40 Gbps per optics
• Up to 10km transmission for G.652 single mode fiber
• 4 channels 1310nm DFB laser & 4 channels PIN photodetector array
• Electrically hot-swappable
• Compliant with IEEE 802.3ba 40GBASE-PSM4
• Supports Digital Diagnostics Monitoring
• RoHS6 Compliant
Application
40G Ethernet and OTU3
Proprietary Protocol and Density Applications
Datacom/Telecom switch & router connections
Data Aggregation and Backplane Applications
High-performance computing networks
Infiniband transmission at 4ch SDR, DDR and QDR
Related Products
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE | Connector type | Product Name |
| OLSQ854XM-CDS1 | 40Gb/s | 850nm | 100m | MPO | QSFP+ SR4 |
| OLSQ314XL-CD02 | 40Gb/s | 1270~1330nm | 2km/10Km | MPO | QSFP+ LR4 PSM |
| OLSQxx4XL-CD10 | 40Gb/s | 1270~1330nm | 10km | LC | QSFP+ LR4 |
| OLSQxx4XL-CD30 | 40Gb/s | 1270~1330nm | 30km | LC | QSFP+ ER4 Lite |
| OLSQxx4XL-CD40 | 40Gb/s | 1270~1330nm | 40km | LC | QSFP+ ER4 |
