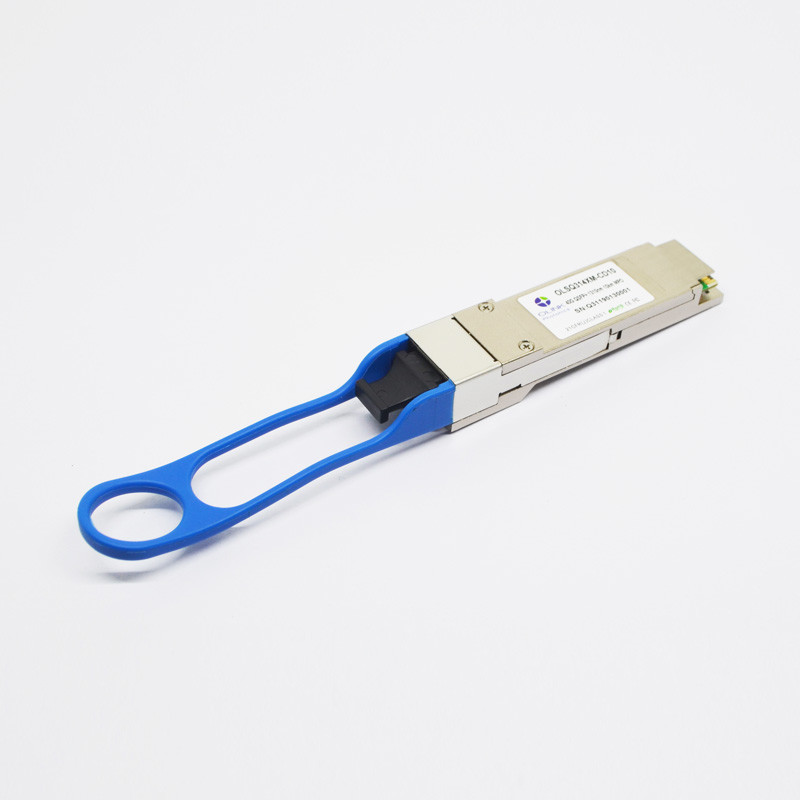

Fiber Optic 40G QSFP+ LR4 Transceiver Parallel Pluggable 1270nm 10km

Basic Information
Place of Origin: Shenzhen China
Brand Name: OLKOPTO
Certification: RoHS FCC CE GS UL FDA etc
Model Number: OLSQ314XM-CD10
Minimum Order Quantity: 1pc
Packaging Details: Individual package Or 10pcs/pallet Or 20pcs/pallet
Delivery Time: 3-5 working days
Payment Terms: T/T or Net 30 days
Supply Ability: 80-120k per month
Form Factor: QSFP+ Data Rate: 44.6Gbps (4×11.2Gbps)
Wavelength: 1270~1330nm Distance: 10km
Connector: MPO Compatibility: Customized
Cable Type: SMF DDM/DOM: Supported
Receiver Type: PIN Temperature Range: 0 To 70°C
High Light:



QSFP+ LR4 Transceiver


10km 40G QSFP+ LR4

Fiber Optic 40G QSFP+ LR4 Transceiver Parallel Pluggable 1270nm 10km


40G QSFP+ LR4 PSM 10km DOM MPO SMF QSFP-40GE-LR4 Optical Transceiver Module


Product Descriptions

The OLSQxx4XL-CD10 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel . and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.


Optical Characteristics (TOP(C) = 0 to 70 ,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Operating Wavelength λc 1290 1310 1330 nm
Ave. output power PAVE -7   +2.3 dBm

Difference in launch power

between any two lanes (OMA)

DL     5 dB
Extinction Ratio ER 3.5     dB
Peak power, each lane PP     4 dBm
Dispersion penalty, each lane TDP     3.5 dB

Average launch power of OFF

transmitter, each lane

POFF     -30 dB

Eye Mask coordinates:

X1, X2, X3, Y1, Y2, Y3


0.23, 0.34, 0.43, 0.27, 0.35, 0.4

Hit Ratio =


Operating Wavelength λc   1310   nm
Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1) PSEN1     -12.5 dBm 3
Average Receive Power,each lane PAVE -11   +2.4 dBm
Receiver Reflectance Rrx     -12 dB
LOS Assert Pa -30     dBm
LOS De-assert Pd     -15 dBm
LOS Hysteresis Pd-Pa 0.5     dB



1. Measured with conformance test signal at TP3 for BER = 10-12 Receiver Characteristics


Product Features

● Four-channel full-duplex transceiver modules

● Transmission data rate up to 11.2Gbit/s per channel

● Up to 10km transmission of single mode fiber

● Low power consumption <2.5W,

● Operating case temperature: 0°C to +70°C

● 3.3V power supply voltage

● RoHS 6 compliant

● Hot Pluggable QSFP form factor

● Single MPO connector receptacle

● Built-in digital diagnostic function



● InfiniBand QDR, DDR and SDR

● 40G Ethernet

● Proprietary High Speed Interconnections

● Data center
