| Part Number: | OLSQ314XM-CD02 | Data Rate: | 40G |
|---|---|---|---|
| Transmission Distance: | 2km/10km | Wavelength: | 1270~1330nm |
| High Light: | MPO Transceiver,40G MPO Transceiver,qsfp+ mpo |
||

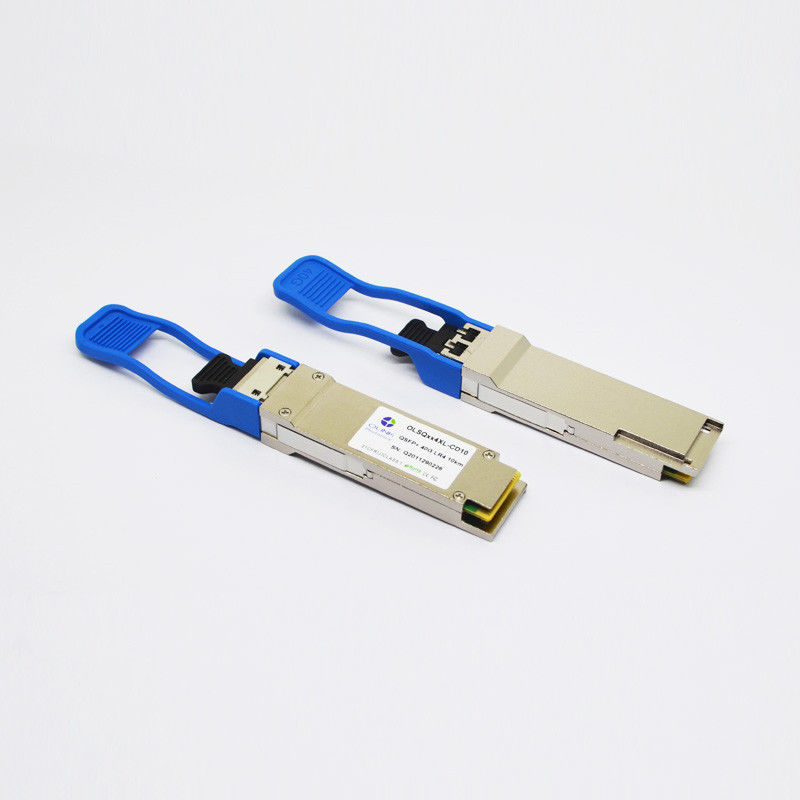

40G 2km 10km DOM QSFP+ MPO Transceiver LR4 PSM MikroTik Compatible
MikroTik Compatible QSFP+ 40G LR4 PSM 1270~1330nm MPO 2km/10km DOM MPO Transceiver
Product Features
● Four-channel full-duplex transceiver modules
● Transmission data rate up to 11.2Gbit/s per channel
● Up to 2km transmission of single mode fiber
● Low power consumption <2.0W,
● Operating case temperature
0℃~70℃
● 3.3V power supply voltage
● RoHS 6 compliant
● Hot Pluggable QSFP form factor
● Single MPO connector receptacle
● Built-in digital diagnostic function
Applications
● InfiniBand QDR, DDR and SDR
● 40G Ethernet
● Proprietary High Speed Interconnections
● Data center
Product Descriptions
Olinkcom’s OLSQxx4XL-CD02 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel . and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate
data rate of 40Gbps 2km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost saving.
Optical Characteristics (TOP(C) = 0 to 70 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λc | 1270 | 1310 | 1350 | nm | |
| Ave. output power | PAVE | -5.2 | +1 | dBm | ||
|
Difference in launch power between any two lanes (OMA) |
DL | 5 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Peak power, each lane | PP | 4 | dBm | |||
| Dispersion penalty, each lane | TDP | 3.5 | dB | |||
|
Average launch power of OFF transmitter, each lane |
POFF | -30 | dB | |||
|
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 |
SPECIFICATION VALUES 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 |
Hit Ratio = 5x10-5 |
||||
| Receiver | ||||||
| Operating Wavelength | λc | 1270 | 1350 | nm | ||
| Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1) | PSEN1 | -11.5 | dBm | 1 | ||
| Average Receive Power,each lane | PAVE | -11 | +2.4 | dBm | ||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -15 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
