| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSB232XL-CD10 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSB232XL-CD10 | Data Rate: | 25G |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | 1270nm-TX/1310nm-RX |
| Commerical Temperature: | 0 To 70 °C | Industrial:: | -40 To 85 °C |
| High Light: | SFP28 LC Optical Transceiver,25G LC Optical Transceiver,SFP28 module |
||

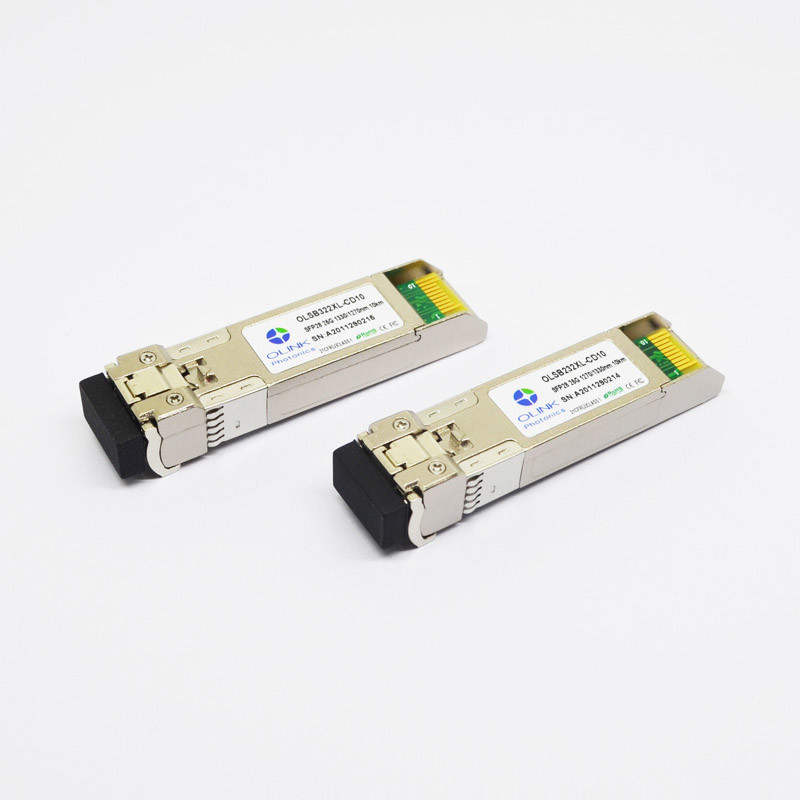

SFP28 25GBASE SMF LC Optical Transceiver Module 1270nm-TX 1310nm-RX 10km
Cisco SFP28 25GBASE 1270nm-TX/1310nm-RX 10km LC SMF Optical Transceiver Module
Product Features
● compliant to SFF-8402 for SFP28 solution
● Digital Diagnostic Monitor Interface with SFF-8472
● Hot pluggable SFP+ footprint
● 1270nm/1330nm DFB transmitter
● Up to 25.78Gb/s data links
● Applicable for 10Km SMF connection
● High transmission margin
● Low power consumption<1.5W
● Single 3.3V power supply
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● 25.78 Gb/s single lane
● Other optical links
Product Descriptions
Olinkcom’s OLSB23(32)2XL-C(I)D10 1270,1330nm DFB transmitter uses BIDI transceiver is designed for use in 25Gb/s
data rate over single-mode fiber for link length 10Km.
The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for
25Gb/s single lane optical links.
Optical Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | 1250 | 1270 | 1290 | nm | ||
| 1310 | 1330 | 1350 | ||||
| Ave. output power (Enabled) | Po | -3 | 5 | dBm | ||
| Extinction Ratio | ER | 3.5 | dB | |||
| spectral width(-20dB) | Δλ | 1 | nm | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Dispersion penalty | 3 | dB | ||||
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Receiver | ||||||
| Operating Wavelength | 1310 | 1330 | 1350 | nm | ||
| 1250 | 1270 | 1290 | ||||
| Stressed Receiver OMA Sensitivity | Psen | -13 | dBm | |||
| Average Receiver Power | Pimax | -13.3 | 2 | dBm | ||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -13 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
More details of our products:
High Reliable Optical Components and Excellent Design
1.DLB laser and PIN photodiode
2.Thick Gold Finger
3.Plating Hard Gold Shell
Cost-effective and Reliable Transmission
Fully Tested for compatibility in our matched switches.
Our all modules have 3 years warranty!
