| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP852XL-CDS1 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Part Number: | OLSP852XL-CDS1 | Form Factor: | SFP28 |
|---|---|---|---|
| Compatiblity: | OEM | Data Rate: | 25.78Gbps |
| DDM/DOM: | Supported | Connector: | LC |
| Media: | MMF | Wavelength: | 850nm |
| Distance: | 100m | Temperature: | 0~70 °C |
| High Light: | SFP28 Gigabit Ethernet Transceiver,100m Gigabit Ethernet Transceiver,100m 25G Transceiver |
||

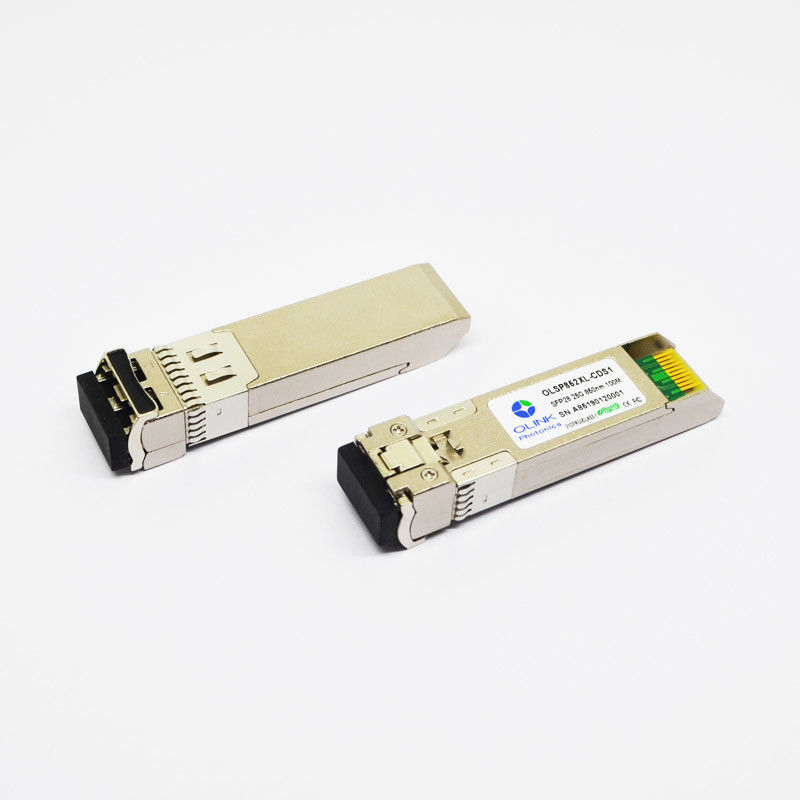

OEM 25G SR SFP28 Gigabit Ethernet Transceiver 850nm 100m LC MMF
25G-SR SFP28 850nm 100m LC MMF Gigabit Ethernet Transceiver OEM
Product Descriptions
The 25G-SFP28-SR transceiver adopts LC duplex connectors, reaching a link up to 100m.
The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for 25Gb/s single lane optical links.
Electrical Input/Output Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note | |
| Transmitter | |||||||
| Diff. input voltage swing | 120 | 820 | mVpp | 1 | |||
| Tx Disable input | H | VIH | 2.0 | Vcc+0.3 | V | ||
| L | VIL | 0 | 0.8 | ||||
| Tx Fault output | H | VOH | 2.0 | Vcc+0.3 | V | 2 | |
| L | VOL | 0 | 0.8 | ||||
| Input Diff. Impedance | Zin | 100 | Ω | ||||
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note | |
| Receiver | |||||||
| Diff. output voltage swing | 340 | 650 | 800 | mVpp | 3 | ||
| Rx LOS Output | H | VOH | 2.0 | Vcc+0.3 | V | 2 | |
| L | VOL | 0 | 0.8 | ||||
Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.
Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | Ts | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
Gereral Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | 25.78 | Gb/s | ||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc | 450 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C |
Product Applications
1. 25G Ethernet
2. Telecom
3. Data center
