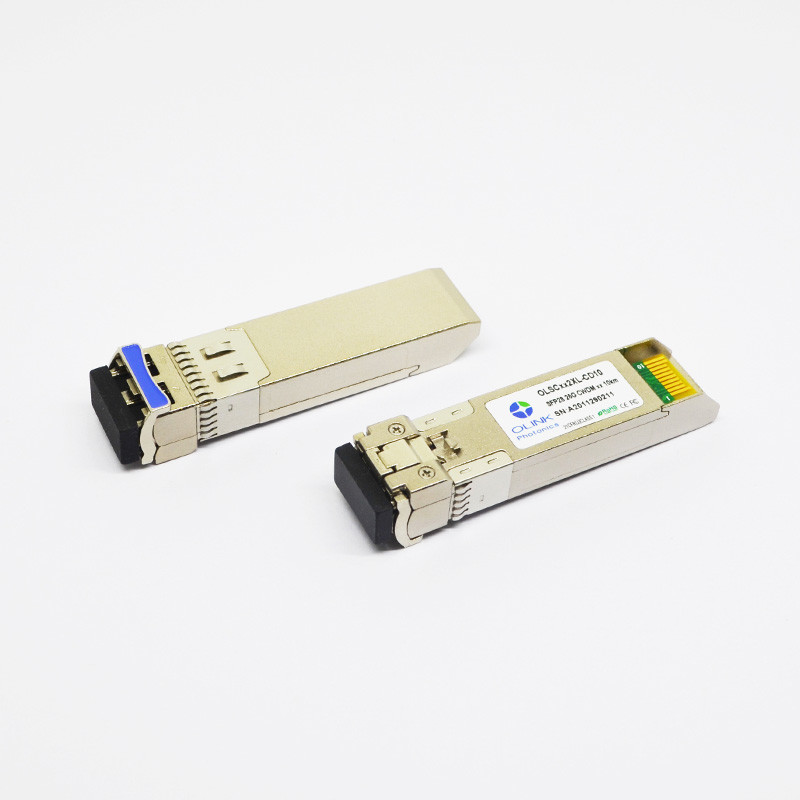

Alcatel Lucent Compatible 25G SFP28 Transceiver CWDM 1370nm 10km DOM LC

Basic Information
Place of Origin: SZ China
Brand Name: OLKOPTO
Certification: ISO9001,ISO14001,OHSAS18001
Model Number: OLSC**2XL-CD10
Minimum Order Quantity: 1pcs
Packaging Details: Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet
Delivery Time: 3-5 working days
Payment Terms: TT/Net 30days
Supply Ability: 80-100k per month
Part Number: OLSC**2XL-CD10 Compliant To: IEEE 802.3cc
Transmission Distance: 10km Wavelength: 1270-1370nm
Compatible: Alcatel-Lucent Low Power Consumption: <1.5W
High Light:

CWDM 25G SFP28 Transceiver


10km 25G SFP28 Transceiver


25g sfp28 module

Alcatel Lucent Compatible 25G SFP28 Transceiver CWDM 1370nm 10km DOM LC


Alcatel-Lucent Compatible 25G CWDM SFP28 1270nm-1370nm 10km DOM LC SMF Optics Tranceiver


Product Features

● Supports up to 25.78Gb/s bit rates

● compliant to IEEE 802.3cc

● compliant to SFF-8402 for SFP28 solution

● Digital Diagnostic Monitor Interface with SFF-8472

● Hot pluggable SFP+ footprint

● 1271nm ,1291nm,1311nm,1331nm ,1351nm,1371nm CWDM transmitter

● Applicable for 10Km SMF connection

● High transmission margin

● Low power consumption<1.5W

● Single 3.3V power supply

● Operating case temperature:

Commerical:0 to 70 °C Exceptional:-20 to 80 °C



● 25.78 Gb/s single lane

● Other optical links


Product Descriptions

Wavelength:1271nm ,1291nm,1311nm,1331nm,1351nm,1371nm CWDM DFB transceiver

Its Features:


Optical Characteristics (TOP(C) = 0 to 70 , TOP(E) =-20 to 80,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Operating Wavelength λ -6.5nm




+6.5nm nm
Ave. output power (Enabled) PAVE 0   +6 dBm 1
Side-Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 3.5     dB
RMS spectral width(-20dB) Δλ     1 nm
Dispersion penalty TDP     2,4,4.5 dB
Relative Intensity Noise RIN     -130 dB/Hz
Operating Wavelength   1260   1610 nm
Receiver Sensitivity(OMA) PSen     -13.8 dBm 3
Average Receiver Power Pimax -13.3   2 dBm
LOS Assert Pa -30     dBm
LOS De-assert Pd     -12 dBm
LOS Hysteresis Pd-Pa 0.5   5 dB



1. Average power figures are informative only, per IEEE 802.3cc..

2. Measured at the BER less than 5E-5, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 25.78Gb/s.




High Reliable Optical Components and Excellent Design

1. DLB laser and PIN photodiode

2. Thick Gold Finger


3. Plating Hard Gold Shell


Cost-effective and Reliable Transmission


Our all modules have 3 years warranty
