| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSC352XL-CD10 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSC352XL-CD10 | Compliant To: | IEEE 802.3cc |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | 1350nm |
| Power Supply: | Single 3.3V | Power Consumption: | <1.5W |
| High Light: | SFP28 Single Mode Fiber Transceiver,25G Single Mode Fiber Transceiver,SFP28 smf transceiver |
||

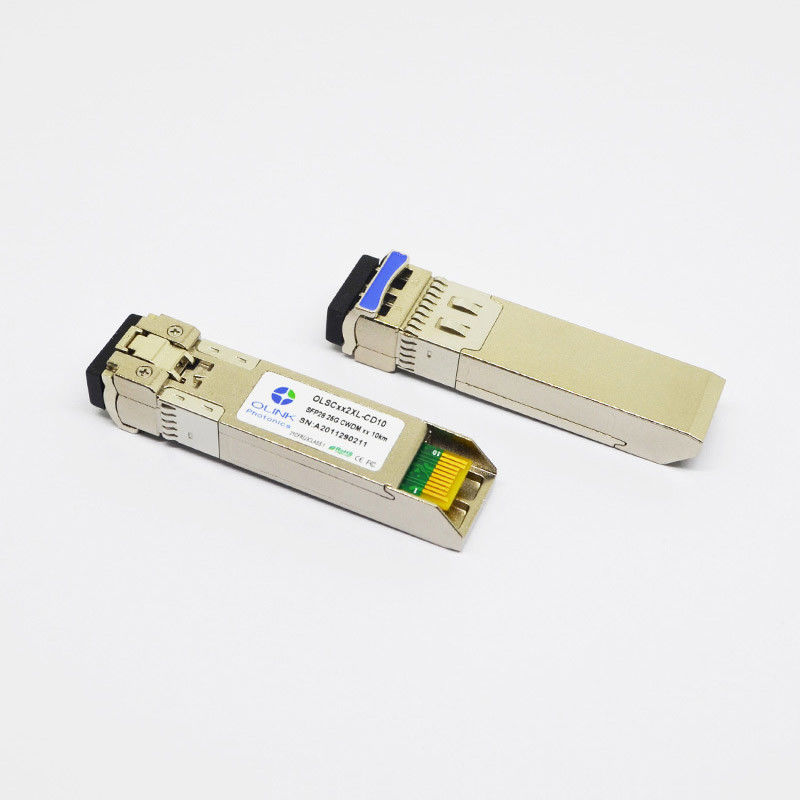

25G CWDM SFP28 Single Mode Fiber Transceiver 1350nm 10km DOM LC
Support Extreme Switch 25G CWDM SFP28 1350nm 10km DOM LC SMF Optical Transceiver
Product Features
● Supports up to 25.78Gb/s bit rates
● compliant to IEEE 802.3cc
● compliant to SFF-8402 for SFP28 solution
● Digital Diagnostic Monitor Interface with SFF-8472
● Hot pluggable SFP+ footprint
● 1271nm ,1291nm,1311nm,1331nm ,1351nm,1371nm CWDM transmitter
● Applicable for 10Km SMF connection
● High transmission margin
● Low power consumption<1.5W
● Single 3.3V power supply
● Operating case temperature:
Commerical:0 to 70 °C Exceptional:-20 to 80 °C
Applications
● 25.78 Gb/s single lane
● Other optical links
Product Descriptions
Wavelength:1271nm ,1291nm,1311nm,1331nm,1351nm,1371nm CWDM DFB transceiver
Its Features:
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(E) =-20 to 80℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | -6.5nm | 1271,1291, 1311,1331, 1351,1371 | +6.5nm | nm | |
| Ave. output power (Enabled) | PAVE | 0 | +6 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width(-20dB) | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 2,4,4.5 | dB | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1610 | nm | |||
| Receiver Sensitivity(OMA) | PSen | -13.8 | dBm | 3 | ||
| Average Receiver Power | Pimax | -13.3 | 2 | dBm | ||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
Notes:
1. Average power figures are informative only, per IEEE 802.3cc..
2. Measured at the BER less than 5E-5, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 25.78Gb/s.
