| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSC272XL-CD10 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSC272XL-CD10 | Data Rate: | 25G |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | 1270nm |
| Cisco Switch: | Cisco C6800-16P10G(-XL) | Low Power Consumption: | < 1.5W |
| Highlight: | 1270nm 25G SFP28 Transceiver,1.5W 25G SFP28 Transceiver,MSA sfp28 |
||

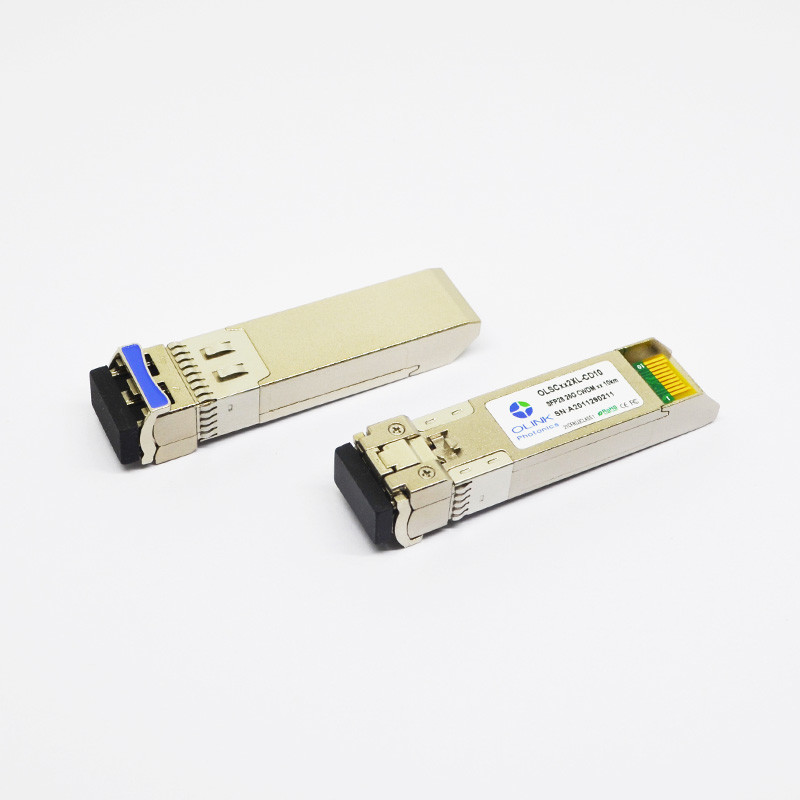

10km SMF DOM 25G SFP28 Transceiver CWDM 1270nm Brocade Compatible
Brocade Compatible 25G CWDM SFP28 1270nm 10km SMF Optical Transceiver Module DOM
Product Features
● Supports up to 25.78Gb/s bit rates
● compliant to IEEE 802.3cc
● compliant to SFF-8402 for SFP28 solution
● Digital Diagnostic Monitor Interface with SFF-8472
● Hot pluggable SFP+ footprint
● 1271nm ,1291nm,1311nm,1331nm ,1351nm,1371nm CWDM transmitter
● Applicable for 10Km SMF connection
● High transmission margin
● Low power consumption<1.5W
● Single 3.3V power supply
● Operating case temperature:
Commerical:0 to 70 °C Exceptional:-20 to 80 °C
Applications
● 25.78 Gb/s single lane
● Other optical links
Product Descriptions
Olinkcom’s OLSCXX2XL-CD10, 1271nm ,1291nm,1311nm,1331nm,1351nm,1371nm CWDM DFB transceiver is designed for use in
25Gb/s data rateover single-mode fiber for link length 10Km.
The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for 25Gb/s
single lane optical links.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(E) =-20 to 80℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | -6.5nm | 1271,1291, 1311,1331, 1351,1371 | +6.5nm | nm | |
| Ave. output power (Enabled) | PAVE | 0 | +6 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width(-20dB) | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 2,4,4.5 | dB | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1610 | nm | |||
| Receiver Sensitivity(OMA) | PSen | -13.8 | dBm | 3 | ||
| Average Receiver Power | Pimax | -13.3 | 2 | dBm | ||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
Notes:
1. Average power figures are informative only, per IEEE 802.3cc..
2. Measured at the BER less than 5E-5, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 25.78Gb/s.
This SFP28 25G provides 25GBase-CWDM throughput up to 10km over single mode fiber (SMF) using a wavelength of 1270nm
through an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center.
It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
