| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSP551XL-CDH1 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSP551XL-CDH1 | Data Rate: | 10G |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | 1550nm |
| Cisco Switch: | Cisco UCS-IOM-2208XP | Low Power Consumption: | < 1.5W |

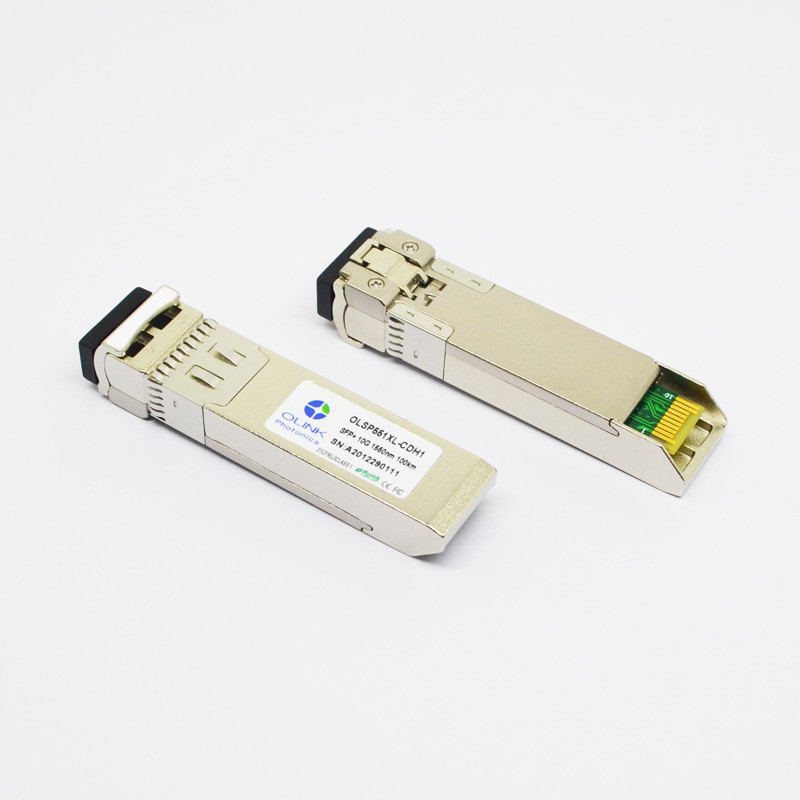

Dell Compatible 10GBASE-ZR 1550nm 100km LC SMF SFP+Optical Transceivers DOM
Product Features
● Supports 9.95 to 11.3Gb/s bit rates with Dual CDR
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Cooled 1550nm EML transmitter, APD receiver
● Applicable for 100km SMF connection
● Low power consumption, < 1.5W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
● Electrical interface compliant to SFF-8431,SFF-8432
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● 10GBASE-ZR at 10.3125Gbps
● OTN G.709 OTU1e/2/2e
● 4x, 8x and 10x 10G Fiber Channel
● Other optical links
Product Descriptions
This module OLSP551XL-CDH1 transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 100km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.
Olinkcom’s compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1543 | 1550 | 1557 | nm | |
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 9 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1600 | nm | ||
| Receiver Sensitivity | PSEN1 | -25 | dBm | 2 | ||
| Recevier Reflectance | Rrx | -27 | dB | |||
| Overload | PAVE | -7 | dBm | |||
| LOS Assert | Pa | -37 | dBm | |||
| LOS De-assert | Pd | -28 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Other Details:
a.Quality warranty:3years
b.Compatibility:Juniper,Cisco,FA,Ciena,D-link,MikroTik,ect,and support customized.
Low power consumption and low latency allow your network devices to work efficiently, and the DOM function supports real-time monitoring for transceiver status.
