| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP312XL-CD10 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatiblity: | HW 02311KNR | Data Rate: | 25.78Gbps |
|---|---|---|---|
| Form Factor: | SFP28 | Wavelength: | 1310nm |
| Distance: | 10km | Transmitter Type: | DFB 1310nm |
| DDM/DOM: | Supported | Temperature: | 0~70 °C |
| High Light: | 25GBASE SR,SR Optical Transceiver,SFP28 SR Optical Transceiver |
||

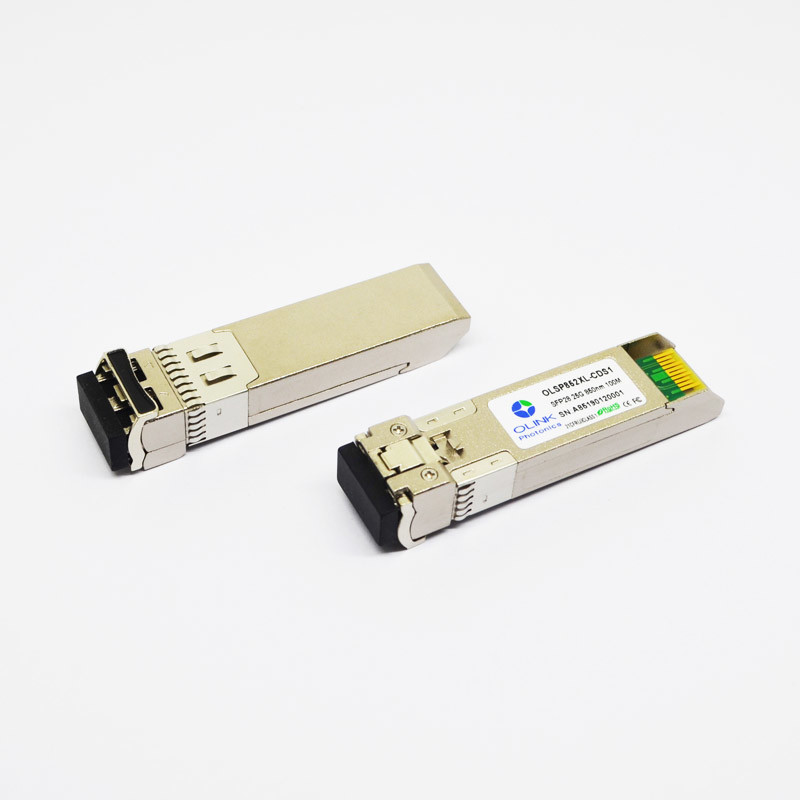

HW Compatible 25GBASE SR Optical Transceiver SFP28 DFB 1310nm
HW Compatible 25GBASE-SR SFP28 850nm 100m DOM LC MMF Ethernet Optical Transceiver
Descriptions
This Ethernet Optical Transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3).
The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status.
Product Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -5 | 2 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width(-20dB) | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 2.7 | dB | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1610 | nm | |||
| Receiver Sensitivity(OMA) | PSen | -12 | dBm | 2 | ||
| Average Receiver Power | Pimax | -13.3 | 2 | dBm | ||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
Notes:
1. Average power figures are informative only, per IEEE 802.3cc.
2. Measured at the BER less than 5E-5, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 25.78Gb/s.
High Performance and Reliability
* Low power consumption＜1W, saving power
* Stainless steel material, anti-corrosion, and salt spray resistance
* DDM for real-time monitoring supply volt, temp, bias current, and TX & RX power
