| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP852XL-CDS1 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatiblity: | Arista Networks SFP-25G-SR | Form Factor: | SFP28 |
|---|---|---|---|
| Temperature: | 0~70 °C | Wavelength: | 850nm |
| Distance: | 100m | TX Power: | -5~2.4dBm |
| Connector: | LC | Receiver Type: | PIN |
| Media: | SMF | DDM/DOM: | Supported |
| High Light: | SFP28 Fiber Channel Transceiver,850nm Fiber Channel Transceiver,SFP28 fibre channel sfp |
||

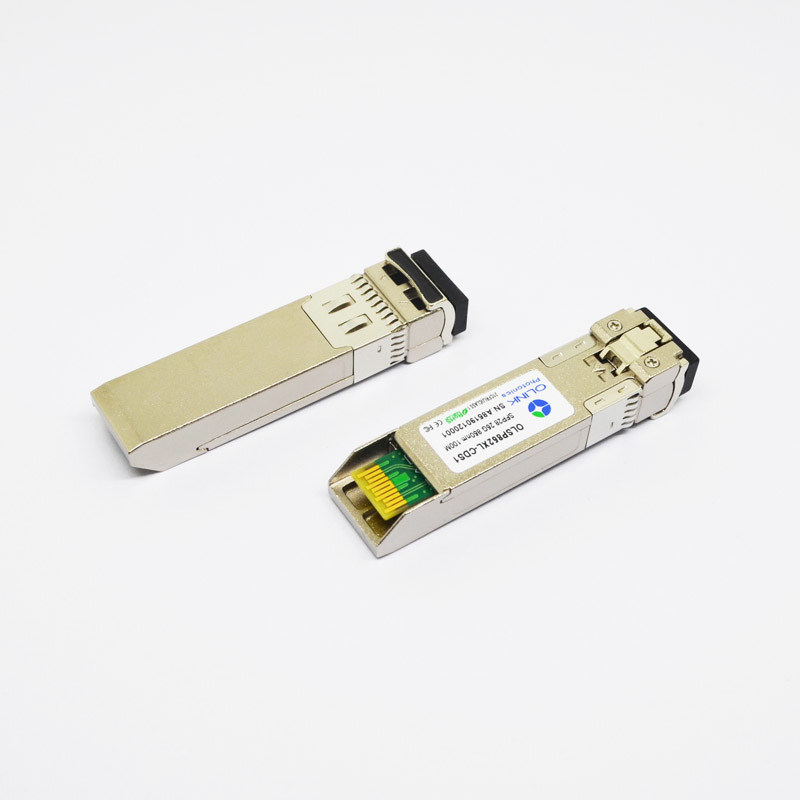

850nm 100m DOM SFP28 Fiber Channel Transceiver MMF Arista Compatible
Arista SFP-25G-SR Compatible SFP28 850nm 100m DOM LC MMF Fiber Channel Transceiver
Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | 25.78 | Gb/s | ||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C |
Electrical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note | ||
| Transmitter | ||||||||
| Differential data input swing | VINPP | 120 | 800 | mVpp | 1 | |||
| Tx Disable input | H | TDH | 2.0 | Vcc+0.3 | V | |||
| L | TDL | 0 | 0.8 | |||||
| Tx Fault output | H | TFH | 2.0 | Vcc+0.3 | V | 2 | ||
| L | TFL | 0 | 0.8 | |||||
| Input differential impedance | Rin | 100 | Ω | |||||
| Receiver | ||||||||
| Differential data output swing | Vout,pp | 340 | 650 | 800 | mVpp | 3 | ||
| Rx Los Output | H | VOH | 2.0 | Vcc+0.3 | V | 2 | ||
| L | VOL | 0 | 0.8 | |||||
Note:
1. TD+/- are internally AC coupled with 100Ω differential termination inside the module.
2.Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.
3. RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Descriptions
The OLSP852XL-CDS1, 850nm VCSEL 25.78Gbps SFP28 transceiver is designed for use in 25Gb/s data rateover Multi-mode fiber for link length 100m.
The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for 25Gb/s single lane optical links.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
Ordering Information
| Part Number | Description |
| OLSP852XL-CDS1 | SFP28, up to 25.78Gb/s, 850nm, 100m, 0~70℃, with Digital Diagnostic Monitor |
