| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP852XL-CDS1 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Juniper Compatible: | QFX-SFP-25G-SR | Form Factor: | SFP28 |
|---|---|---|---|
| Wavelength: | 850nm | Distance: | 100m |
| Temperature: | 0~70 °C | Connector: | LC |
| Media: | SMF | DDM/DOM: | Supported |
| High Light: | 100m 25G SFP28 Transceiver,850nm 25G SFP28 Transceiver,25GBASE-SR |
||

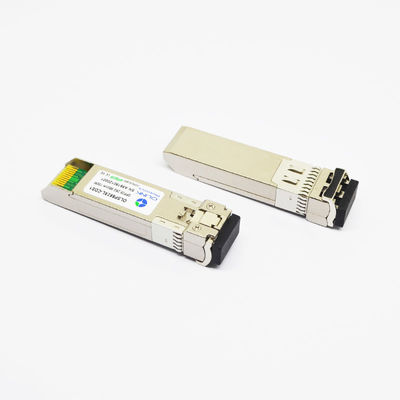

25GBASE-SR 25G SFP28 Transceiver 850nm 100m Juniper Networks Compatible
25GBASE-SR SFP28 850nm 100m Juniper Networks QFX-SFP-25G-SR Compatible Transceiver Module
Product Descriptions
This product adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status. Each SFP28 transceiver module is individually tested on a series of Juniper switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.
Optical Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | 1250 | 1270 | 1290 | nm | ||
| 1310 | 1330 | 1350 | ||||
| Ave. output power (Enabled) | Po | -3 | 5 | dBm | ||
| Extinction Ratio | ER | 3.5 | dB | |||
| spectral width(-20dB) | Δλ | 1 | nm | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Dispersion penalty | 3 | dB | ||||
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Receiver | ||||||
| Operating Wavelength | 1330 | nm | ||||
| 1270 | ||||||
| Stressed Receiver OMA Sensitivity | Psen | -13 | dBm | |||
| Average Receiver Power | Pimax | -13.3 | 2 | dBm | ||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
Applications: 25.78 Gb/s single lane and Other optical links
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | 25.78 | Gb/s | ||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C |
