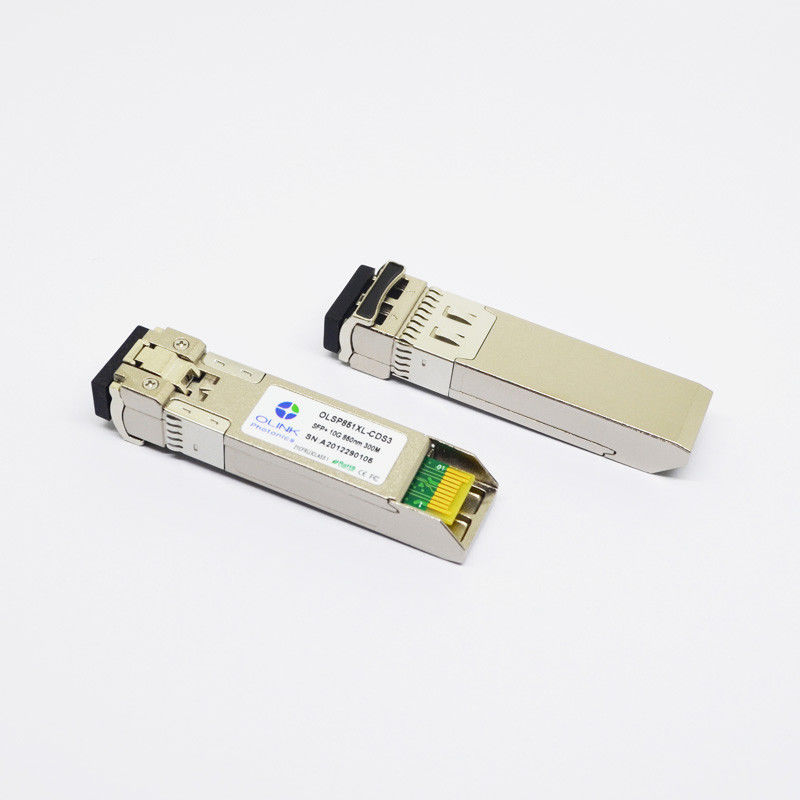

850nm 300m SFP+ Sr Optic 10gbe Multi Mode Dell 407 BBOU Compatible

Basic Information
Place of Origin: China
Brand Name: OLKOPTO
Certification: CE, RoHS, FCC, FDA, UL, EMC, ISO9001
Model Number: OLSP851XL-C(I)DS3
Minimum Order Quantity: 1 pc
Packaging Details: 10pcs/ foil bag, individual package
Delivery Time: 3-6 working days
Payment Terms: T/T
Supply Ability: 80-120k per month
Product Name: 10G SFP+ 850nm 300m Compatible OEM: Dell
Speed: 10Gbps Form Factor: SFP+
Wavelength: 850nm Reach: 300m
Media: MMF Connector: LC
DOM: DOM Temperature: 0-70°C, -40-85°C
High Light:

SFP+ Sr Optic 10gbe

,

850nm sfp+ sr transceiver

,

300m sfp+ sr transceiver

850nm 300m SFP+ Sr Optic 10gbe Multi Mode Dell 407 BBOU Compatible



Dell 407-BBOU Compatible 10GB SFP+ SR Transceiver Module (MMF, 850nm, 300m, LC, DDM)



This 10GbE SFP+ SR module is suitable for use with Dell networking systems and is equivalent to genuine part number 407-BBOU. It supports data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW), providing fiber connectivity up to 300 m over OM3 cable. The module is programmed and tested to ensure working with Dell 10 Gigabit switches, servers, and other platforms.

Product Features

● Supports up to 11.3Gb/s bit rates

● Duplex LC connector

● Hot pluggable SFP+ footprint

● 850nm VCSEL transmitter, PIN photo-detector

● Up to 300m on 50/125um MMF(2000MHZ.KM)

● Low power consumption, < 1W

● Digital Diagnostic Monitor Interface

● Optical interface compliant to IEEE 802.3ae

● Electrical interface compliant to SFF-8431

● Operating case temperature:

Commerical:0~70°C

Industrial:-40 to 85 °C





Optical Characteristics (TOP(C) =0 to 70 ,TOP(I) =-40 to 85 ,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ 840 850 860 nm
Ave. output power (Enabled) PAVE -6   -1 dBm 1
Extinction Ratio ER 4 4.5   dB
RMS spectral width Δλ     1 nm
Rise/Fall time (20%~80%) Tr/Tf     50 ps 2
Dispersion penalty TDP     3.9 dB
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength   840 850 860 nm
Receiver Sensitivity(ER=4.5) PSEN1     -11.1 dBm 3
Overload PAVE     0.5 dBm
LOS Assert Pa -30     dBm
LOS De-assert Pd     -12 dBm
LOS Hysteresis Pd-Pa 0.5     dB



Notes:

1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.

2.20%~80%

3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12





Digital Diagnostic Specifications



The OLSP851XL-C(I)DS3 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.

Parameter Symbol Units Min. Max. Accuracy Note
Transceiver temperature DTemp-E ºC -45 +90 ±5ºC 1
Transceiver supply voltage DVoltage V 2.8 4.0 ±3%
Transmitter bias current DBias mA 0 80 ±10% 2
Transmitter output power DTx-Power dBm -8 +1 ±2dB
Receiver average input power DRx-Power dBm -13 0 ±2dB

Notes:

1. Internally measured

2. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser



Compatibility

Olinkcom's Dell Compatible 10GBASE-SR SFP+ transceiver can be worked with the below Dell equipment.



Dell Networking N1524, N1524P, N1548, N1548P, N2024, N2024P, N2048, N2048P, N3024, N3024F, N3024P, N3048, N3048P, N4032, N4032F, N4064, N4064F,

S3124, S3124F, S3124P, S3148, S3148P, X4012

Dell PowerEdge T130, T330, T430, T630

Dell EMC Networking N2128PX-ON, N3024EF-ON, N3024EP-ON, N3024ET-ON, N3048EP-ON, N3048ET-ON, N3132PX-ON, X1052, X1052P

Dell EMC PowerEdge R440, R540, R640, R740, T440, T640
