| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP3112L-CD10 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Data Rate: | 1.25Gbps/1.0625Gbps | Form Factor: | SFP |
|---|---|---|---|
| Part Number: | OLSP3112L-CD10 | Compatibility: | Juniper |
| Fiber Type: | SMF | Connector: | LC Duplex |
| Wavelength: | 1310nm | Distance: | 10km |
| High Light: | 1310nm 1000BASE-LX SFP,10km 1000BASE-LX SFP,Juniper Compatible 1000BASE-LH SFP |
||

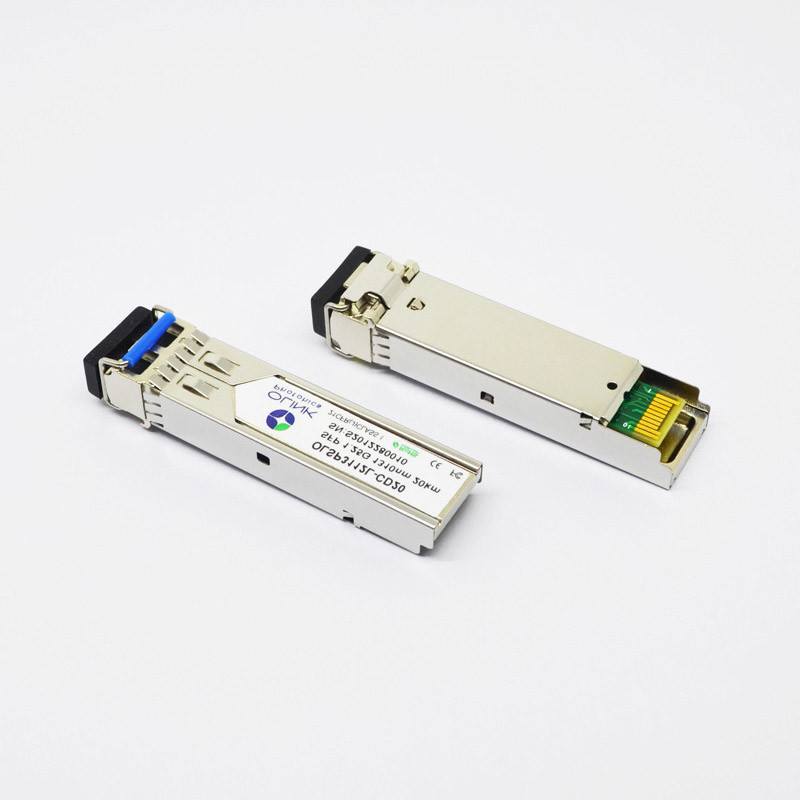

1000BASE-LX/LH SFP 1310nm 10km LC Juniper Compatible Transceiver Module
Product Details
1000BASE-LX/LH SFP 1310nm 10km LC Juniper Compatible Transceiver Module consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. It supports dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -9 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| RMS spectral width | Δλ | 0.65 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1310 | nm | |||
| Receiver Sensitivity | PSEN1 | -22 | dBm | 3 | ||
| Overload | PAVE | 0 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -24 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1.25Gb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 1.25 | Gb/s | |||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 220 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Applications
● Gigabit Ethernet and Fiber Channel
● Switch to Switch interface and Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Ordering Information
| Part Number | Description |
| OLSP3112L-CD10 | SFP,1.25G, 1310nm, 10Km, 0~70℃, with Digital Diagnostic Monitor |
| OLSP3112L-ID10 | SFP,1.25G, 1310nm, 10Km, -40~85℃, with Digital Diagnostic Monitor |
Features of Optical Transceiver Module
FAQ
Q1. Can I have a sample order? What is your MOQ?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable, we do not have MOQ,1 sample is available.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center, and also tested for compatibility on a variety of different brands of network equipment
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock, ready to ship. some of higher-value and specialize optics have a short lead time.
Payment term: Western union, T/T, Aliexpress escow, money gram, cash payment
Warranty: 3 year
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range (COM): 0 to 70°C(32 to 158°F)
Extended temperature range (EXT): -5 to 85°C(23 to 185°F)
Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
