| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP3112L-CD10 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Form Factor: | SFP | Compatibility: | Extreme |
|---|---|---|---|
| Data Rate: | 1.25Gbps/1.0625Gbps | Wavelength: | 1310nm |
| Distance: | 10km | Fiber Type: | SMF |
| DDM/DOM: | Supported | Warranty: | 3 Years |
| High Light: | 1310nm 1.25G SFP Optical Transceivers,RoHS 1310nm SFP Optical Transceivers,sfp module 1.25 g sm 20km 1310nm |
||

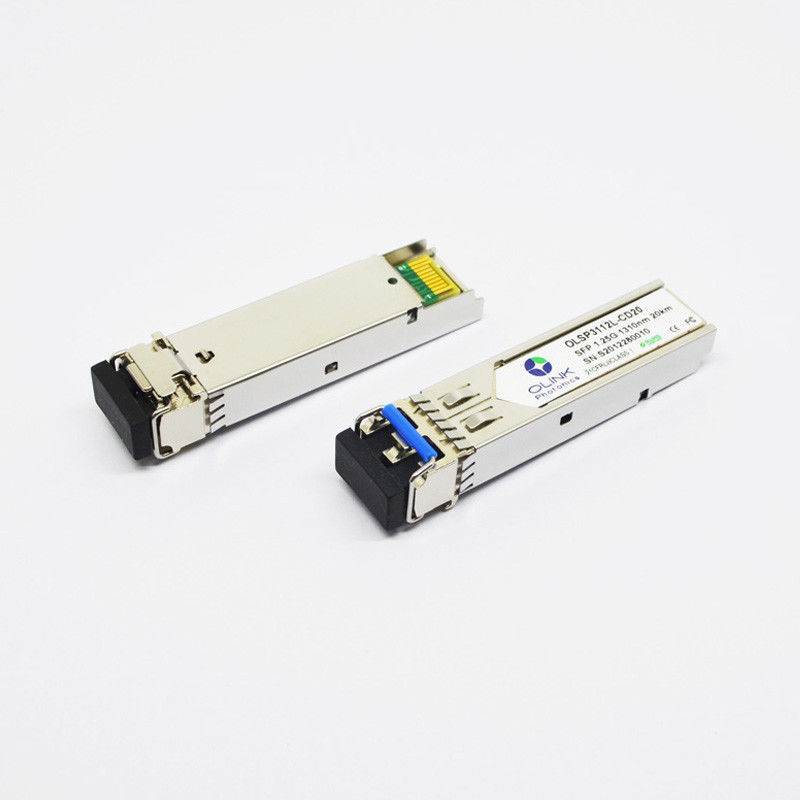

1000BASE-LX SFP Optical Transceivers 1310nm 10km 1.25G LC Module
SFP Optical Transceiver Extreme Compatible 1000BASE-LX SFP 1310nm 10km LC Module
Product Descriptions
The OLSP3112L-CD compatible with Extreme Product apply to dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -9 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| RMS spectral width | Δλ | 0.65 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1310 | nm | |||
| Receiver Sensitivity | PSEN1 | -22 | dBm | 3 | ||
| Overload | PAVE | 0 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -24 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1.25Gb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Applications: Gigabit Ethernet / Fiber Channel / Switch to Switch interface / Switched backplane applications / Router/Server interface
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VIN,PP | 120 | 820 | mVpp | 1 | |
| Tx Disable Input-High | VIH | 2.0 | Vcc+0.3 | V | ||
| Tx Disable Input-Low | VIL | 0 | 0.8 | V | ||
| Tx Fault Output-High | VOH | 2.0 | Vcc+0.3 | V | 2 | |
| Tx Fault Output-Low | VOL | 0 | 0.5 | V | 2 | |
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 650 | 800 | mVpp | 3 |
| Rx LOS Output-High | VROH | 2.0 | Vcc+0.3 | V | 2 | |
| Rx LOS Output-Low | VROL | 0 | 0.8 | V | 2 | |
Notes:
1. TD+/- are internally AC coupled with 100Ω differential termination inside the module.
2. Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.
3. RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Ordering Information
| Part Number | Description |
| OLSP3112L-CD10 | SFP,1.25G, 1310nm, 10Km, 0~70℃, with Digital Diagnostic Monitor |
| OLSP3112L-ID10 | SFP,1.25G, 1310nm, 10Km, -40~85℃, with Digital Diagnostic Monitor |
