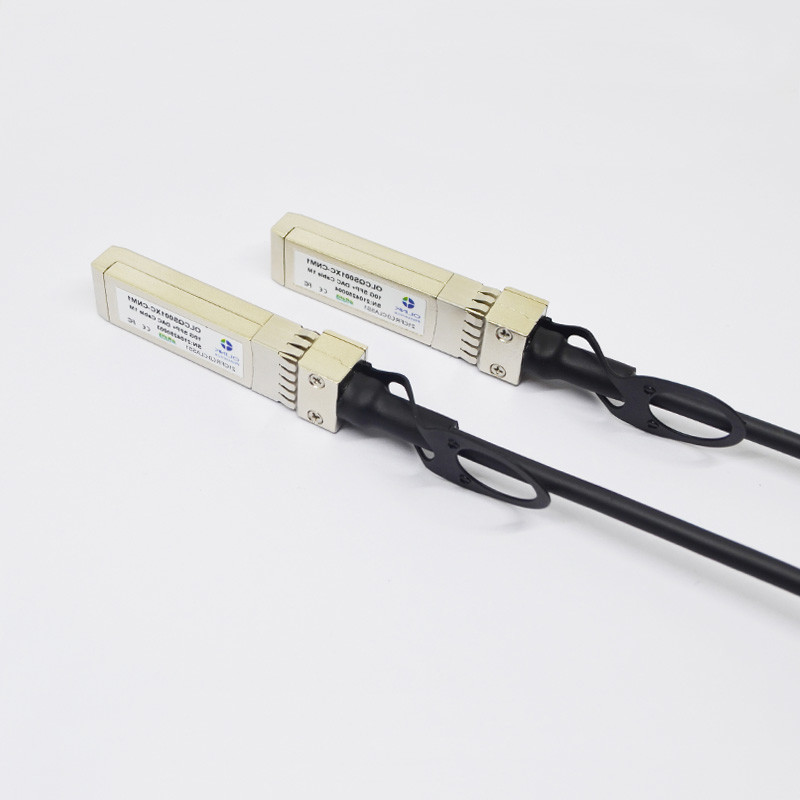

Juniper Compatible 10G SFP+ DAC Twinax Cable 3M With 20 Pins Edge Connector

SFP+ DAC Specifications

Number of Lanes

Tx & Rx

Channel Data Rate

10.3125 Gbps

Operating Temperature

0 to + 70°C

Storage Temperature

-40 to + 85°C

Supply Voltage

3.3 V nominal

Electrical Interface

20 pins edge connector

Management Interface

Serial, I2C

Pin

Logic

Symbol

Description

1

VeeT

Module Transmitter Ground

2

LVTTL-O

Tx_Fault

Module Transmitter Fault

3

LVTTL-I

Tx_Disable

Transmitter disable; Turns off transmitter laser output

4

LVTTL-I/O

SDA

2-wire Serial Interface Data Line (Same as MOD-DEF2 in INF-8074i)

5

LVTTL-I/O

SCL

2-wire Serial Interface Clock (Same as MOD-DEF1 in INF-8074i)

6

Mod_ABS

Module Absent, connected to VeeT or VeeR in the module

7

LVTTL-I

RS0

Rate Select 0, optionally controls SFP+ module receiver

8

LVTTL-O

Rx_LOS

Receiver Loss of Signal Indication (In FC designated as Rx_LOS and in Ethernet designated as Signal Detect)

9

LVTTL-I

RS1

Rate Select 1, optionally controls SFP+ module transmitter

10

VeeR

Module Receiver Ground

11

VeeR

Module Receiver Ground

12

CML-O

RD-

Receiver Inverted Data Output

13

CML-O

RD+

Receiver Non-Inverted Data Output

14

VeeR

Module Receiver Ground

Part Number

Description

OLSP01XC-CN3

SFP+, up to 10 Gb/s,Copper Cable, 0~70℃, 3M

OLSP01XC-IN3

SFP+, up to 10Gb/s,Copper Cable, -40~85℃, 3M
