Arista Compatible 10G SFP+ Direct Attach Cables Twinax Cable 1M

Basic Information
Place of Origin: China
Brand Name: OLKOPTO
Certification: RoHs, FCC, CE, UL, ISO9001, ISO14001
Model Number: OLCS001XC-CNM1
Minimum Order Quantity: 1 pc
Packaging Details: Individual package
Delivery Time: 3-5 working days
Payment Terms: T/T or Net 30 days
Supply Ability: 80-100K per month
Compatible Brand: Arista Vendor Name: Olinkcom
Connector Type: SFP+ To SFP+ Data Rate: 10Gbps
AWG: 30AWG Cable Length: 1M
Jacket Material: PVC Temperature: 0~70℃
High Light:

10G SFP+ Direct Attach Cable

,

1m SFP+ Direct Attach Cables

,

10G SFP+ Twinax Cable

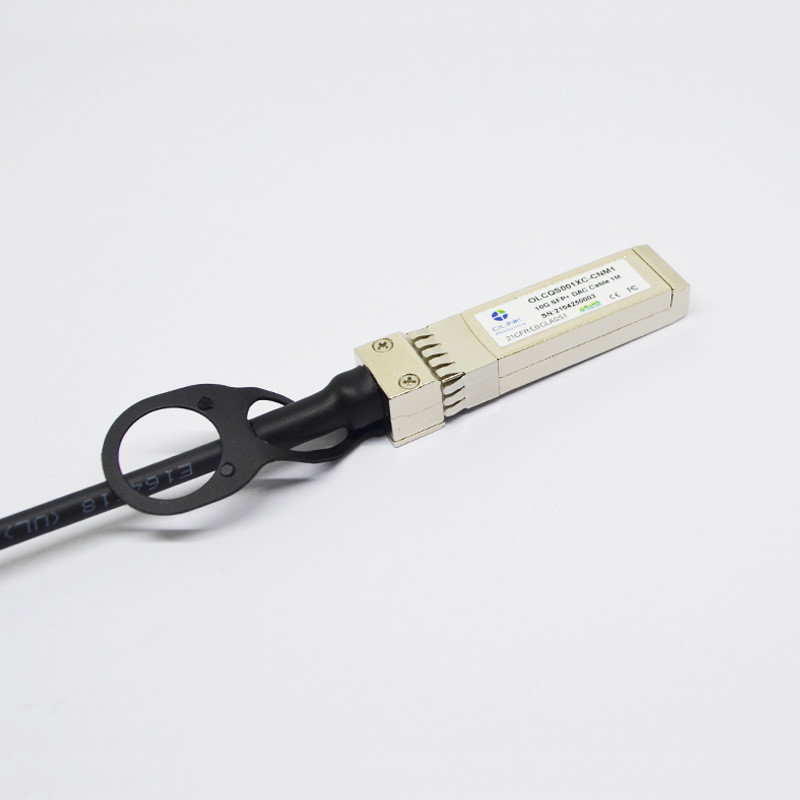

Arista Compatible 10G SFP+ Direct Attach Cables Twinax Cable 1M



Arista CAB-SFP-SFP-1M Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable 1M

Olinkcom's SFP+ DAC cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fibre Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fibre Channel industry standard.

PIN Description

PIN Logic Symbol Name/Description Notes
1   VeeT Tx ground
2 LV-TTL-O Tx Fault N/A 1
3 LV-TTL-I Tx Disable Transmitter Disable 2
4 LV-TTL-I/O SDA Tow Wire Serial Data
5 LV-TTL-I SCL Tow Wire Serial Clock
6   MOD-DEF0 Module present, connect to VeeT
7 LV-TTL-I RS0 N/A 1
8 LV-TTL-O LOS LOS of Signal 2
9 LV-TTL-I N/A N/A 1
10   VeeR Rx ground
11   VeeR Rx ground
12 CML-O RD- Reciever Data Inverted
13 CML-O RD+ Reciever Data Non-Inverted
14   VeeR Rx ground
15   VccR Rx power supply
16   VccT Tx power supply
17   VeeT Tx ground
18 CML-I TD+ Transmitter Data Non-Inverted
19 CML-I TD- Transmitter Data Inverted
20   VeeT Transmitter Ground



Recommended Operating Conditions



Parameter Symbol Min Typical Max Unit
Storage Ambient Temperature   -10   +85 °C
Operating Case Temperature Tc 0   70 °C
Power Supply Voltage VCC3 3.14 3.3 3.47 V
Power Dissipation PD     0.02 W






Mechanical Specifications

The connector is compatible with the SFF-8432 specification.

Arista Compatible 10G SFP+ Direct Attach Cables Twinax Cable 1M 0

Ordering Information

Part Number Description

OLCS001XC-CNMx

SFP+ Direct Attach Passive Cable (10GSFP+Cu), 1m, 3m,5m, AWG:30, 0ºC ~ +70ºC
x means 1=1m,3=3m,5=5m
