| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLSP01XC-CN1 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-100K per month |
| Juniper Part Number: | EX-SFP-10GE-DAC-1M | Vendor Name: | Olinkcom |
|---|---|---|---|
| Connector Type: | SFP+ To SFP+ | Data Rate: | 10Gbps |
| AWG: | 30AWG | Cable Length: | 1M |
| Jacket Material: | PVC | Protocols: | 10G Ethernet, Fibre Channel |
| High Light: | 10G Direct Attach Copper,SFP+ Direct Attach Copper,sfp to sfp+ dac |
||

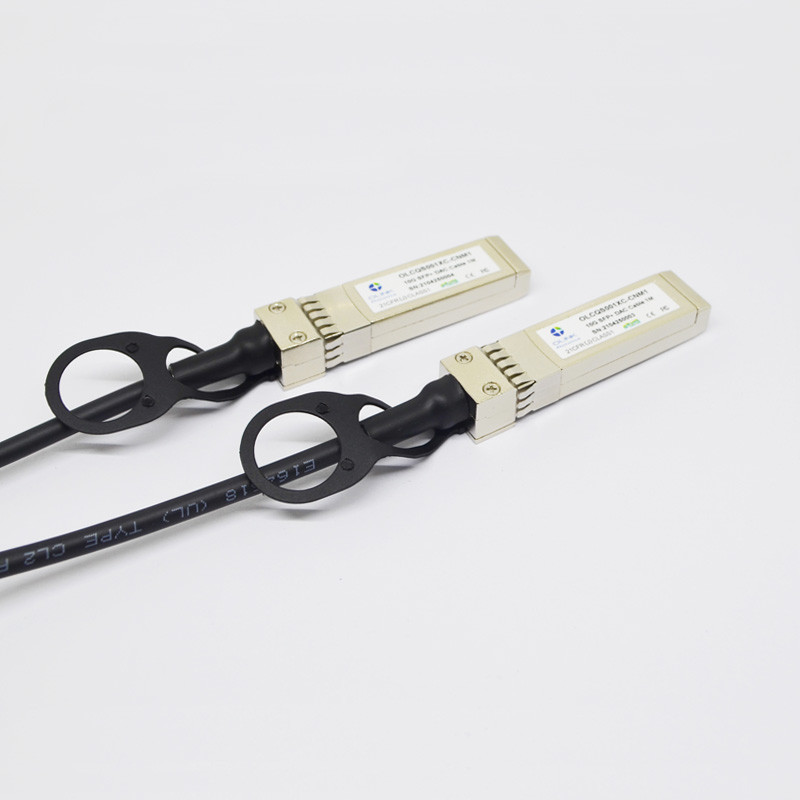

10G SFP+ To SFP+ Passive Direct Attach Copper Cable Juniper Compatible
Juniper EX-SFP-10GE-DAC-1M Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 1M).
General Product Characteristics
| SFP+ DAC Specifications | |
| Number of Lanes | Tx & Rx |
| Channel Data Rate | 10.3125 Gbps |
| Operating Temperature | 0 to + 70°C |
| Storage Temperature | -40 to + 85°C |
| Supply Voltage | 3.3 V nominal |
| Electrical Interface | 20 pins edge connector |
| Management Interface | Serial, I2C |
High Speed Characteristics
| Parameter | Symbol | Min | Typ | Max | Units | Notes |
| Differential Impedance | Zd | 90 | 100 | 110 | Ω | |
|
Differential Input Return Loss |
SDDXX |
<-12+2* SQRT (f) with f in GHz | dB | 0.01~4.1GHz | ||
|
<-6.3+13* Log10/(f/5.5) with f in GHz |
dB |
4.1~11.1GHz |
||||
| Common Mode Output Return Loss |
SCCXX |
< -7+1.6*f with f in GHz | dB | 0.01~2.5GHz | ||
| -3 | dB | 2.5~11.1GHz | ||||
| Difference Waveform Distortion Penalty | dWDPc | 6.75 | dB | |||
| VMA Loss | L | 4.4 | dB | |||
| VMA Loss to Crosstalk Ratio | VCR | 32.5 | dB | |||
Mechanical Specifications
The connector is compatible with the SFF-8432 specification.
Ordering Information
| Part Number | Description |
| OLSP01XC-CN1 | SFP+, up to 10 Gb/s,Copper Cable, 0~70℃, 1M |
| OLSP01XC-IN1 | SFP+, up to 10Gb/s,Copper Cable, -40~85℃, 1M |
