| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLCS001XC-CNM1 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-100K per month |
| Compatible Brand: | H3C | Vendor Name: | Olinkcom |
|---|---|---|---|
| Connector Type: | SFP+ To SFP+ | Data Rate: | 10Gbps |
| AWG: | 30AWG | Cable Length: | 1M |
| Jacket Material: | PVC | Temperature: | 0~70℃ |
| Highlight: | HPE Direct Attach Cables,sfp+ dac twinax cable,cable twinax sfp+ |
||

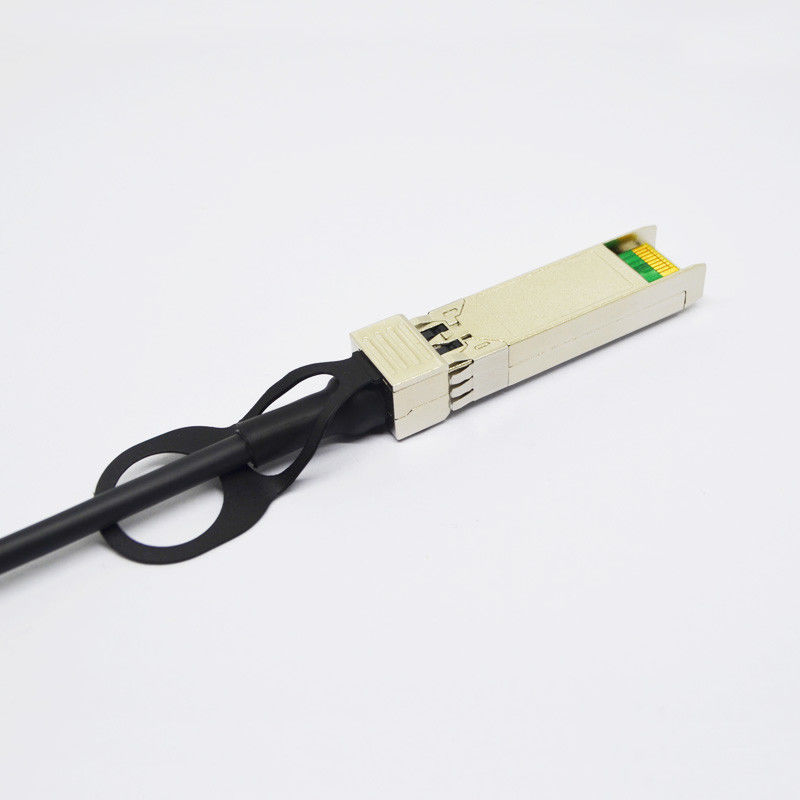

HPE H3C Compatible Direct Attach Cables SFP+ To SFP+ Copper Twinax DAC 1M
HPE H3C Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable 1M
The DAC SFP+ cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fibre Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fibre Channel industry standard.
Pin Function Definition
|
Pin |
Logic |
Symbol |
Description |
|
1 |
|
VeeT |
Module Transmitter Ground |
|
2 |
LVTTL-O |
Tx_Fault |
Module Transmitter Fault |
|
3 |
LVTTL-I |
Tx_Disable |
Transmitter disable; Turns off transmitter laser output |
|
4 |
LVTTL-I/O |
SDA |
2-wire Serial Interface Data Line (Same as MOD-DEF2 in INF-8074i) |
|
5 |
LVTTL-I/O |
SCL |
2-wire Serial Interface Clock (Same as MOD-DEF1 in INF-8074i) |
|
6 |
|
Mod_ABS |
Module Absent, connected to VeeT or VeeR in the module |
|
7 |
LVTTL-I |
RS0 |
Rate Select 0, optionally controls SFP+ module receiver |
|
8 |
LVTTL-O |
Rx_LOS |
Receiver Loss of Signal Indication (In FC designated as Rx_LOS and in Ethernet designated as Signal Detect) |
|
9 |
LVTTL-I |
RS1 |
Rate Select 1, optionally controls SFP+ module transmitter |
|
10 |
|
VeeR |
Module Receiver Ground |
|
11 |
|
VeeR |
Module Receiver Ground |
|
12 |
CML-O |
RD- |
Receiver Inverted Data Output |
|
13 |
CML-O |
RD+ |
Receiver Non-Inverted Data Output |
|
14 |
|
VeeR |
Module Receiver Ground |
|
15 |
|
VccR |
Module Receiver 3.3 V Supply |
|
16 |
|
VccT |
Module Transmitter 3.3 V Supply |
|
17 |
|
VeeT |
Module Transmitter Ground |
|
18 |
CML-I |
TD+ |
Transmitter Non-Inverted Data Input |
|
19 |
CML-I |
TD- |
Transmitter Inverted Data Input |
|
20 |
|
VeeT |
Module Transmitter Ground |
Mechanical Specifications
The connector is compatible with the SFF-8432 specification.
Ordering Information
|
Part Number |
Description |
|
OLCS001XC-CNMx |
SFP+ Direct Attach Passive Cable (10GSFP+Cu), 1m, 3m,5m, AWG:30, 0ºC ~ +70ºC |
|
x means |
1=1m,3=3m,5=5m |
