| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLSP01XC-CN1 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-100K per month |
| Cisco Part Number: | SFP-H10GB-CU1M | Vendor Name: | Olinkcom |
|---|---|---|---|
| Connector Type: | SFP+ To SFP+ | Data Rate: | 10Gbps |
| AWG: | 30AWG | Cable Length: | 1M |
| Jacket Material: | PVC | Temperature: | 0~70℃ |
| High Light: | 30AWG Direct Attach Cables,10G Passive Direct Attach Cables,SFP+ Twinax Cable |
||

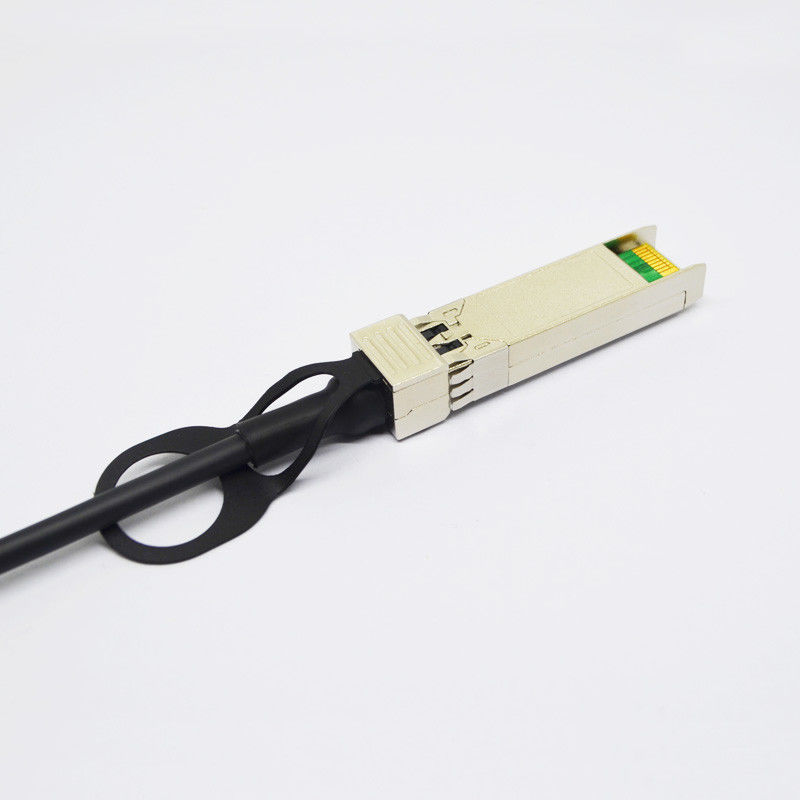

Cisco Compatible 10G Passive Direct Attach Cables SFP+ Twinax Cable
Cisco SFP-H10GB-CU1M Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 1M).
General Product Characteristics
| SFP+ DAC Specifications | |
| Number of Lanes | Tx & Rx |
| Channel Data Rate | 10.3125 Gbps |
| Operating Temperature | 0 to + 70°C |
| Storage Temperature | -40 to + 85°C |
| Supply Voltage | 3.3 V nominal |
| Electrical Interface | 20 pins edge connector |
| Management Interface | Serial, I2C |
Pin Function Definition
| Pin | Logic | Symbol | Description |
| 1 | VeeT | Module Transmitter Ground | |
| 2 | LVTTL-O | Tx_Fault | Module Transmitter Fault |
| 3 | LVTTL-I | Tx_Disable | Transmitter disable; Turns off transmitter laser output |
| 4 | LVTTL-I/O | SDA | 2-wire Serial Interface Data Line (Same as MOD-DEF2 in INF-8074i) |
| 5 | LVTTL-I/O | SCL | 2-wire Serial Interface Clock (Same as MOD-DEF1 in INF-8074i) |
| 6 | Mod_ABS | Module Absent, connected to VeeT or VeeR in the module | |
| 7 | LVTTL-I | RS0 | Rate Select 0, optionally controls SFP+ module receiver |
| 8 | LVTTL-O | Rx_LOS | Receiver Loss of Signal Indication (In FC designated as Rx_LOS and in Ethernet designated as Signal Detect) |
| 9 | LVTTL-I | RS1 | Rate Select 1, optionally controls SFP+ module transmitter |
| 10 | VeeR | Module Receiver Ground | |
| 11 | VeeR | Module Receiver Ground | |
| 12 | CML-O | RD- | Receiver Inverted Data Output |
| 13 | CML-O | RD+ | Receiver Non-Inverted Data Output |
| 14 | VeeR | Module Receiver Ground | |
| 15 | VccR | Module Receiver 3.3 V Supply | |
| 16 | VccT | Module Transmitter 3.3 V Supply | |
| 17 | VeeT | Module Transmitter Ground | |
| 18 | CML-I | TD+ | Transmitter Non-Inverted Data Input |
| 19 | CML-I | TD- | Transmitter Inverted Data Input |
| 20 | VeeT | Module Transmitter Ground |
Mechanical Specifications
The connector is compatible with the SFF-8432 specification.
Ordering Information
| Part Number | Description |
| OLSP01XC-CN1 | SFP+, up to 10 Gb/s,Copper Cable, 0~70℃, 1M |
| OLSP01XC-IN1 | SFP+, up to 10Gb/s,Copper Cable, -40~85℃, 1M |
