| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLSQ85TXM-CDS1 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | 4 pcs per pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 10K per month |
| Compatible Brand: | Juniper | Vendor Name: | Olinkcom |
|---|---|---|---|
| Data Rate: | 103.1 Gbps | Form Factor: | QSFP28 |
| Wavelength: | 850nm | Distance: | 100M |
| Connector: | 12F MPO/MTP | Source: | VCSEL+PIN |
| TX Power: | -8.4~2.4dBm | RX Power: | <-10.3dBm |
| Operating Temperature: | 0~70℃ | DOM: | Supported |
| High Light: | 100GBASE-SR4,MPO 100G QSFP28 Transceiver,MTP 100G QSFP28 Transceiver |
||

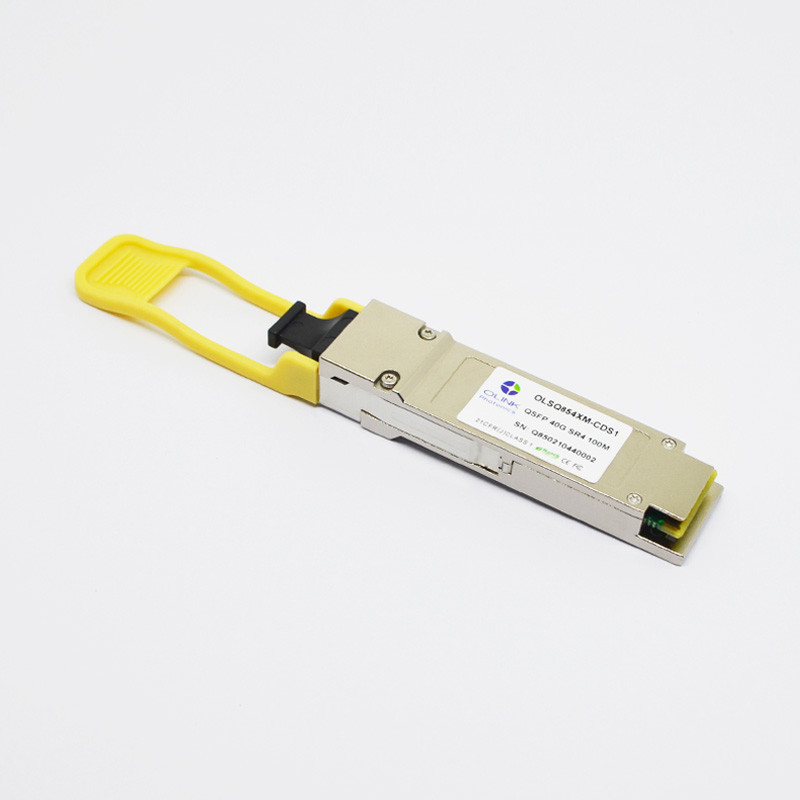

100GBASE-SR4 100G QSFP28 Transceiver 850nm 100m DOM MTP MPO MMF
JNP-QSFP-100G-SR4 Juniper Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module
Product Description
Olinkcom's OLSQ85TXM-CDS1 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ SR4 for 100 or 40 Gigabit Ethernet , Infiniband FDR/EDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates Gigalight Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service
Optical Characteristics (Top=0~70℃, Vcc=3.14~3.47V)
| Parameter | Symbol | Unit | Min | Typ | Max | Notes | ||||
| Transmitter | ||||||||||
| Signaling rate, each lane | DRpl | Gb/s | 25.78125 ±100 ppm | 1 | ||||||
| Center Wavelengthe | λ | nm | 830 | 850 | 860 | |||||
| RMS Spectral Width | nm | 0.6 | ||||||||
| Average launch power, each lane | Pavg | dBm | -8.4 | 2.4 | ||||||
| Optical modulation amplitude, each lane (OMA) | OMA | dBm | -6.4 | 3 | ||||||
| Extinction ratio | ER | dB | 3 | |||||||
|
Average Launch Power of OFF Transmitter, per Lane |
RIN | dBm | -30 | |||||||
| Encircled Flux | FLX | dBm |
>86% at 19 um <30% at 4.5 um |
|||||||
| Optical return loss tolerance | dB | 12 | ||||||||
| Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} | {0.3,0.38,0.45,0.35,0.41,0.5} | 2 | ||||||||
| Receiver | ||||||||||
| Receive Rate for Each Lane | DRpl | Gb/s | 25.78125 ±100 ppm | 3 | ||||||
| Four Lane Wavelength Range | λ | nm | 840 | 860 | ||||||
| Overload Input Optical Power | Pmax | dBm | 3.4 | |||||||
|
Average Receive Power for Each Lane |
Pin | dBm | -10.3 | 2.4 | 4 | |||||
| Receiver Sensitivity(OMA)per lane | Psens | dBm | -5.2 | |||||||
| Recevier Reflectance | Rfl | dB | -12 | |||||||
| Receiver Eye MaskDefinition {X1, X2, X3, Y1, Y2,Y3} | {0.28,0.5,0.5,0.33,0.33,0.4} | 5 | ||||||||
| Los De-Assert | Pd | dBm | -13 | |||||||
| Los Assert | Pa | dBm | -30 | |||||||
| Loss Hysteresis | Pd-Pa | dBm | 0.5 | |||||||
Product Features
● MTP/MP0 optical connector
● Single +3.3V power supply
● Hot-pluggable QSFP28 MSA form factor
● Up to 100m OM4 MMF Distance
● 4x28G Electrical Serial Interface (CEI-28G-VSR)
● AC coupling of CML signals
● Low power dissipation(Max:3.5W)
● Built in digital diagnostic function
● Operating case temperature range:0℃ to 70℃
● Compliant with 100GBASE-SR4
● I2C Communication Interface
Applications
● 100GBASE-SR4
● Infiniband QDR/DDR/SDR
● 100G Datacom connections
Ordering Information
| Part Number | Description |
| OLSQ85TXM-CDS1 | QSFP28 SR4 100m OM4, 0~70℃ DOM |
