| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLSQXXTXL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | 4 pcs per pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 2K per month |
| Compatible Brand: | Juniper | Vendor Name: | Olinkcom |
|---|---|---|---|
| Data Rate: | 103.1 Gbps | Form Factor: | QSFP28 |
| Wavelength: | LAN WDM | Distance: | 40km |
| Optical Power: | -2.5~4.5dBm | The Max Sen: | -18.6dBm |
| OTU4: | Supported | DOM: | Supported |
| High Light: | QSFP-100G-ER4,1310nm 100G QSFP28 Transceiver,LC 100G QSFP28 Transceiver |
||

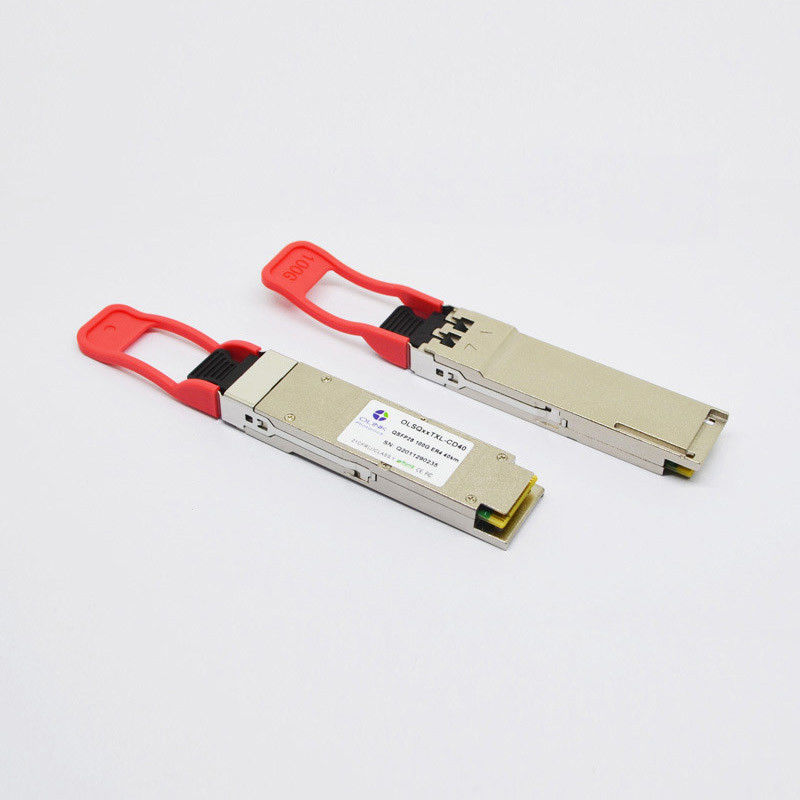

QSFP-100G-ER4 Compatible 100G QSFP28 Transceiver 1310nm 40km DOM LC SMF
Juniper Networks QSFP-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM LC SMF Optical Transceiver Module
Functional Description
Olinkcom’ OLSQXXTXM-CD40 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (Lan-WDM) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a APD photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
Optical Characteristics (Top=0~70℃, Vcc=3.14~3.47V)
| Parameter | Symbol | Unit | Min | Typ | Max | Notes | ||||
| Transmitter | ||||||||||
| Signaling rate, each lane | Gb/s | 25.78125 ±100 ppm | 1 | |||||||
| Four Lane Wavelength Range | λ1 | nm | 1294.53 | 1295.56 | 1296.59 | |||||
| λ2 | 1299.02 | 1300.05 | 1301.09 | |||||||
| λ3 | 1303.54 | 1304.58 | 1305.63 | |||||||
| λ4 | 1308.09 | 1309.14 | 1310.19 | |||||||
| Total launch power | Pout | dBm | 10.5 | |||||||
| Average launch power, each lane | Pavg | dBm | -2.9 | 4.5 | 2,7 | |||||
| Optical modulation amplitude, each lane (OMA) | OMA | dBm | 0.1 | 4.5 | ||||||
| Extinction ratio | ER | dB | 7 | |||||||
| Side-mode suppression ratio | SMSR | dB | 30 | |||||||
|
Average launch power of OFF transmitter, per lane |
POFF | dBm | -30 | |||||||
| Optical return loss tolerance | dB | 20 | ||||||||
| Transmitter reflectance | dB | –12 | ||||||||
| Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | 3 | ||||||||
| Receiver | ||||||||||
| Receive Rate for Each Lane | Gb/s | 25.78125 ±100 ppm | 4 | |||||||
| Four Lane Wavelength Range | λ1 | nm | 1294.53 | 1295.56 | 1296.59 | |||||
| λ2 | 1299.02 | 1300.05 | 1301.09 | |||||||
| λ3 | 1303.54 | 1304.58 | 1305.63 | |||||||
| λ4 | 1308.09 | 1309.14 | 1310.19 | |||||||
| Overload Input Optical Power | Pmax | dBm | -1 | |||||||
|
Average Receive Power for Each Lane |
Pin | dBm | -20.9 | -4.9 | 5,7 | |||||
| Receiver Sensitivity(OMA)per lane | Psens1 | dBm | -18.6 | |||||||
| Stressed Sensitivity(OMA) per lane | Psens2 | dBm | -16.6 | 6 | ||||||
| Return Loss | RL | dB | -26 | |||||||
| Receiver Electrical 3dB upper cutoff frequency, per lane | GHz | 31 | ||||||||
| Los De-Assert | Pd | dBm | -24 | |||||||
| Los Assert | Pa | dBm | -26 | |||||||
| Loss Hysteresis | Pd-Pa | dBm | 2 | |||||||
Product Features
● Hot-pluggable QSFP28 form factor
● 4 channels full-duplex transceiver module
● Supports data rate up to 111.8Gb/s
● Compliant with QSFP28 MSA, 100G 4WDM-40 MSA, IEEE 802.3ba 100GBASE-ER4 and OTN OTU4 standards
● 4x 28Gb/s EML LAN-WDM cooling transmitter with SOA
● 4 channels APD ROSA
● Internal CDR circuits on both receiver and transmitter channels
● Low power consumption < 4W
● Up to 40km reach for G.652 SMF
● Duplex LC receptacles
● Operating case temperature 0°C to 70°C
● 3.3V power supply voltage
Applications
● 100GBASE-ER4
● OTN OTU4
Ordering Information
| Part Number | Description |
| OLSQXXTXL-CD40 | QSFP28 ER4 40KM, 0~70℃, with Digital Diagnostic Monitor |
