| Data Rate: | 1.25Gb | Form Factor: | SFP |
|---|---|---|---|
| Wavelength: | 850nm | Reach: | 550M |
| Source: | VCSEL+PIN | Optical Power: | -10~-3 |
| Sensitivity: | -18 DBm | Operating Temperature: | 0~70℃, -40~85℃ |
| Fiber Type: | MMF | Application: | ●Gigabit Ethernet ●Fiber Channel ●Switch To Switch Interface ●Switched Backplane Applications ●Router/Server Interface ●Other Optical Transmission Systems |
| Highlight: | 850nm SFP Optical Transceivers,1000BASESX SFP Optical Transceivers,850nm sfp transceiver module |
||

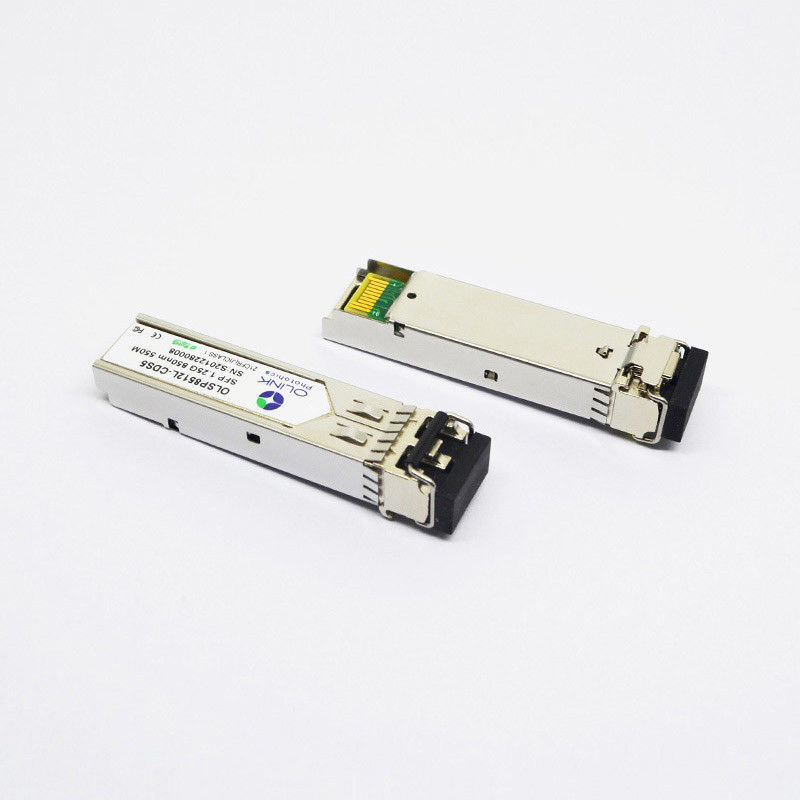

1000BASE-SX 850nm SFP Optical Transceivers
1000BASE-SX SFP 850nm 550m LC Transceiver Cisco GLC-SX-MM-C Compatible
Product Details
1. Multi-Vendor MSA Compatible Multimode 1000Base-SX SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable.
2. It has minimum guaranteed optical budget of 7.5 dB, with in most cases is enough to reach about 550m 1000base-SX distance.
3. This transceiver uses top quality VSCEL Laser transmitter with operating at nominal wavelength 850 nm. and 850 nm. PIN Photodiode receiver.
4. It supports DDM/DOM optical diagnostics, with providing diagnostic information about the present operating conditions. 5. Operates temperature
Commecial: 0°-70°C
Industrial: -40~85°C
5. SFP support 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps) |1G Fiber Channel (1.0625 Gbps).
Technical parameter
| TX Wavelength: | 850 nm. | Media Type: | Multi-Mode Fiber (MMF) |
| RX Wavelenght: | 850 nm. | Maximum Distance: | 550m |
| Supported Data Rate: | 1.063-1.25Gbps | Supported Applications: | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| Connectors: | Double LC | Transmitter Type: | VSCEL Laser |
| Minimum Transmitting Power: | -10 dB | Receiver Type: | PIN photodiode |
| Maximum Transmitting Power: | -3 dB | Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
| Receiver Sensitivity: | -18 dBm | Power: | +3.3V single power supply |
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -10 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| RMS spectral width | Δλ | 0.65 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.25 | ps | 2 | ||
| Output Optical Eye | Compliant with IEEE802.3 z &ITU G.957 Compliant (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | PSEN1 | -18 | dBm | 3 | ||
| Overload | PAVE | -3 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -20 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern.
2. Unfiltered, measured with a PRBS 223-1 test pattern @1.25Gbps
3. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-10
Product Features
● Supports 1.25Gbps/1.0625Gbps bit rates
● Duplex LC connector
● Hot pluggable SFP footprint
● 850nm VSCEL laser transmitter and PIN photo-detector
● Applicable for 550m on 50/125µm, 300m on 62.5/125µm MMF connection
● Low power consumption, < 0.5W
● Digital Diagnostic Monitor Interface
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Product Descriptions
Olinkcom's OLSP8512L-C(I)DS5 SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Application
● Internet Service Provider (ISP) Gigabit Ethernet communication links
● Enterprise LAN & SAN Networks
● Data Center LAN & SAN Networks
● Other optical links
